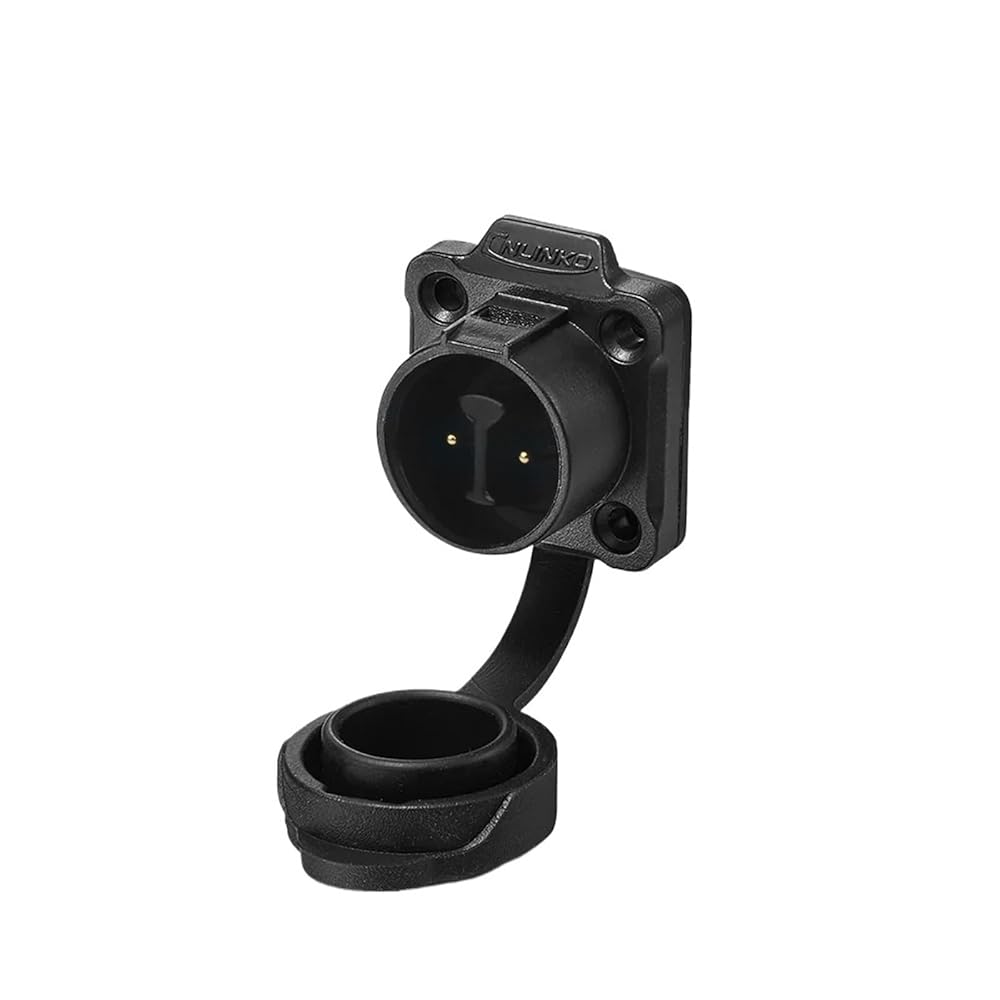

Outdoor 2 3 4 5 6 7 8 Pin M12 Power Waterproof Industrial Connector IP68 DC DIY Female Male Socket PBT Plastic Connector Jack
Features:
Versatile Pin Configuration
Available in 2-8 pin options, these connectors offer flexibility for various applications, from small devices to larger systems.
Waterproof IP68 Rating
The Industrial Connectors boast a robust IP68 waterproof rating, ensuring they can withstand harsh environments without failing.
Male and Female Plugs
Featuring both male and female plugs, these connectors provide versatility for different connection needs.
PBT Plastic
Constructed with high-grade PBT plastic, these connectors guarantee durability and longevity, even under intense use.
Wide Voltage Range
With the ability to customize the voltage range, these connectors cater to diverse power requirements across industries.
Specifications
Connecting mode
Latching Lock connect
Protection level
IP65/IP67
Cable specification
0.785mm²/18AWG
Diameter range
3mm ~6mm
Contact diameter × Qty
1.0-0.8
Current rating(A)
5A/3A
Temperature rise
5A contact temperature below 30(2-5 pin)
7A contact temperature below 40(6-8 pin)
10A contact temperature below 50(6-8 pin)
Operating voltage(AC.V.rms)
2-5 pin (250V),6-8 pin (200v)
Withstanding voltage(AC.V)1min
1500V
Contact resistance
Insulation resistance
>500M
Durability
500 mating&unmating cycles
Temperature rating
40C80C
Method of connecting cable
Easy locking
Assembly wire
Soldering
Prevent the combustion level
UL94V0
Material
Insulated parts
High-performance engineering plastics
Hardware metal
Zinc alloy(pearl hard chromium)
Contact pin
Copper alloy(gold-plated 4U)
Spring
Stainless steel
Sealing
Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance, impact resistance, stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
- Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
==========
Hign-concerned Chemical : None
Model Number : LP12 Series Connectors
Voltage :
Origin : Mainland
Certification : ,UL,weee
Cable Specifications(2~6pin) : 0.34~0.5mm²/22~20AWG
Diameter Range : 4.5mm-5.5mm
Contact Resistance(Max.) : 5M Omega
Durability(Min.) : 500 Times
Withstanding Voltage(AC.V) 1 Minute : 1500V/1000V
Insulation Resistance(Min.) : 500M Omega
Protection Level : IP68 Waterproof Connector
Connecting Mode : Easy Locking Type
Working Temperature : -25~+85
Housing & Insulation Parts : High-Performance Engineering Plastics
Product Name : M12 2 3 4 5 6 7 8 Pin Connector
Assembly Cable : Soldering
Type : Circular Connector
Application : Audio & Video,Lighting,Power
Cable Specifications(7~8pin) : 0.25~0.34mm²/24~22AWG
Connector type : Panel connector/inline connector
Rated current : 3A~5A
Connector Type : Panel Connector/Inline Connector
