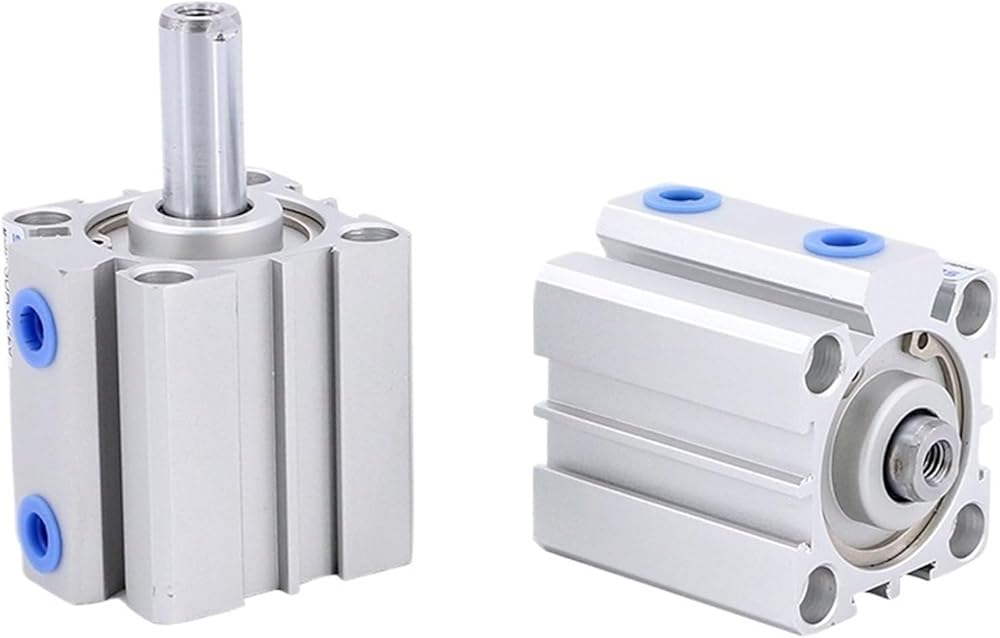

1. Hard oxidation treatment of cylinder body: The cylinder body is made of pure aluminum and treated by hard oxidation process, which improves the wear resistance and corrosion resistance of the cylinder.
2. Thickened cylinder body: Thickened cylinder body is adopted, inner wall is finely ground and polished with low friction, and it is smooth to use with double sealing rings and is not easy to leak air.
3. High-strength fine grinding piston rod: The cylinder piston has undergone many fine grinding treatments, with small stroke error and long service life.
4. Copper copper sleeve: copper sleeve, greatly improving the stability of the cylinder, with a service life of 3 million times.
5. Double-sealed piston: Double-sealed piston structure, sealing ring, more wear- and longer service life.
6. Thickened pure die-cast aluminum end caps: SC series cylinders are made of pure die-cast aluminum end caps, which firmly do not cut corners, are in quality, pressure- and leak-proof.
7. Concorde sealing ring: it can effectively prevent the left and right chambers of the piston from channeling gas to each other and improve the sealing performance.
1. Push the cylinder piston to the bottom measurement data A.
2. The cylinder piston is all pressed out of the measurement data B, and the value
obtained by subtracting the data A from the data B is the stroke of the cylinder.
3. The cylinder inner diameter data C is the cylinder bore diameter.
