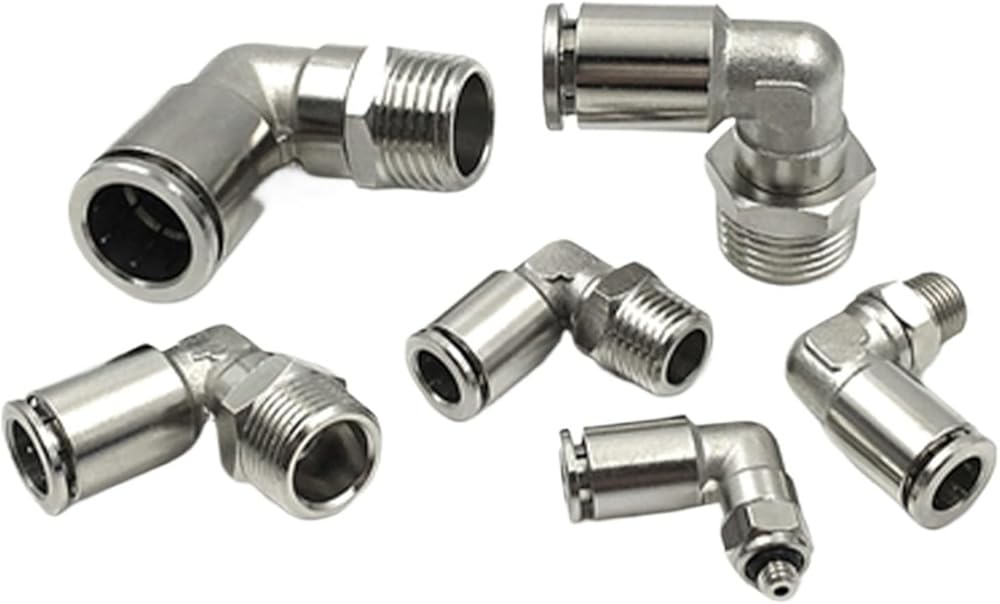

Quick-Connect-to-Threaded Fittings
The product is made of brass with nickel plating. Anti-oxidation, anti-rust
High temperature resistance, low temperature resistance, corrosion resistance, waterproof, wear resistance
Model: PL connector
Material: Nickel-plated brass
Thread: M5, 1/8" 1/4" 3/8" 1/2" male BSPT thread
1/8" Standard Pipe Thread (DN6) external thread diameter 9.5mm
1/4" Standard Pipe Thread (DN8) external thread diameter 12.5mm
3/8" Standard Pipe Thread(DN10) external thread OD16mm
1/2 inch Standard Pipe Thread (DN15) external thread diameter 20mm
Use PU tube size: 4/6/8/10/12/14/16mm
Pressure range: 0.095~2.0Mpa
Guaranteed pressure: 1.6Mpa
Working temperature: -20~120 degrees
Included Package: 1 Connector
