Special Features

1. Ball screws are the most common transmission components used as transmission elements in machinery and precision machinery.
2. Ball screws are made of carbon steel, which is more wear-resistant, greatly extending the service life of ball screws, and the life span is increased several times.
3. Less heat generation, reduced required drive power, and high axial force per unit ball screw volume.
1. There is no need to disassemble the slider in advance during installation to prevent the beads from falling
2. High-carbon steel chrome-plated high-strength aluminum material, good processing accuracy
3. Screw fixation, strong stability, the optical axis and the aluminum bracket are fixed with screws, stable and tight

Description

1. Low friction, long service life; low operating noise.
2. Carbon steel and aluminum alloy, minimum starting torque, capable of high speed and micro feed.
3. Ball screws are widely used in CNC machine tools, industrial and other transmission equipment.
Specifications:
Model: SFU2510
Rail Width or Diameter: 25mm
Linear Guide Grade: Normal
Material: Bearing Steel
Ball Screw Precision: C7

Description:

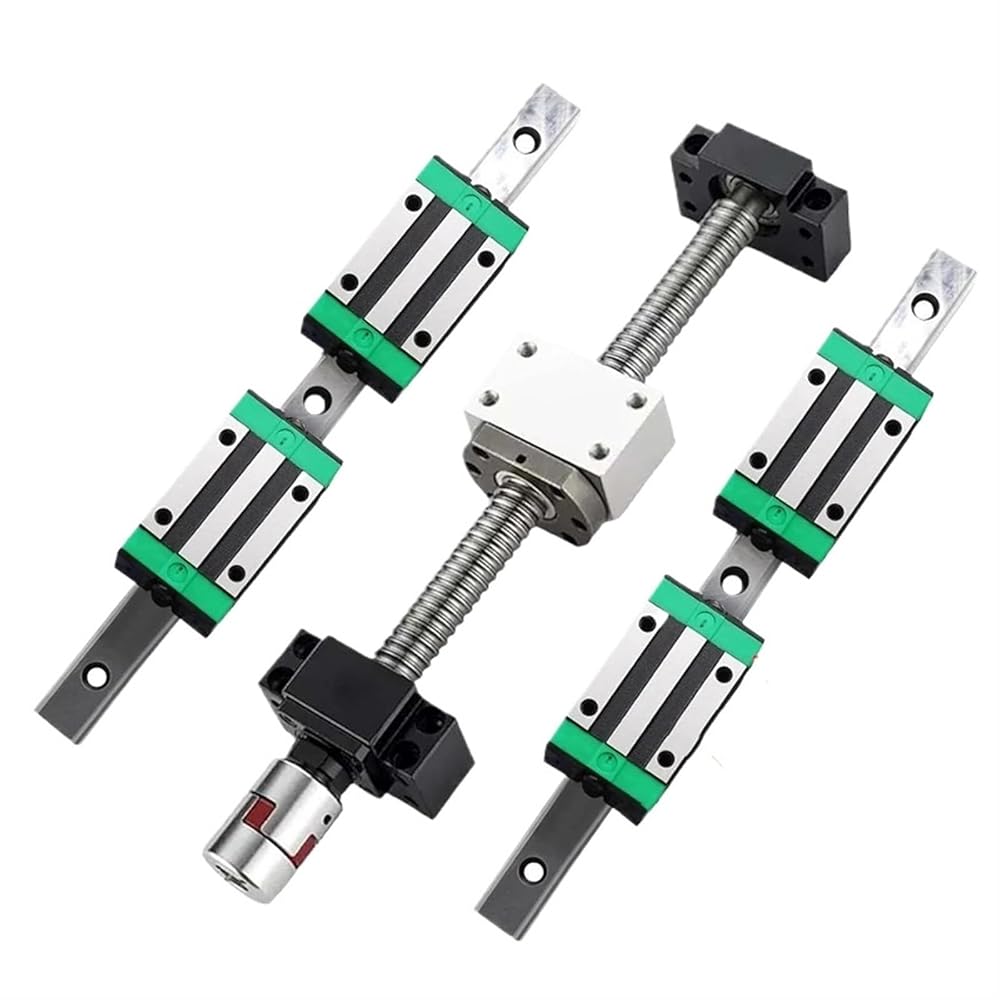

Comprehensive Accessory Kit: Includes a full set of HGH25CA blocks, DSG25H nut housings and couplings for complete assembly.
Versatile BK/BF20 End Machining: Equipped with BK/BF20 end machining, compatible with a wide range of motor shafts.
Precision C7 Rolled Type Ball Screw: Adopts high-precision C7 rolled type SFU ball screws that can be precisely machined.
Linear Guides: Includes 2 HGR25 linear guides to provide a solid and stable foundation for your setup.

Packing list:
1pc SFU2510 ball screw with end machining for BK/BF20
1pc SFU2510 ball nut
1pc BK20+BF20
1pc coupling D40L66 14x17mm
1pcs DSG25H nut housing
2pcs HGR25 linear guides
4pcs HGH25CA blocks
Note: The above ball screws are total lengths, including the machining part.
