6Pcs 6803 2RS Bearing 17x26x5mm ABEC-5 C2 Metric Thin Section Ball Bearings 6803RS 61803RS RS

SAR 186
– 1 +

Special Features

  • bearing
  • WHAT IS A THIN SECTION BEARING AND HOW DOES IT REDUCE COST?
  • Thin Section Ball Bearings were developed for applications where space limitations are of the utmost importance.
  • As the name implies, the difference between the inside and outside diameters of the rings has been minimized or thinned out.
  • Of course this comes at a price by compromising load capacities.
  • However, these bearings can still accommodate a relatively light radial thrust or combined loads.

Description

bearing

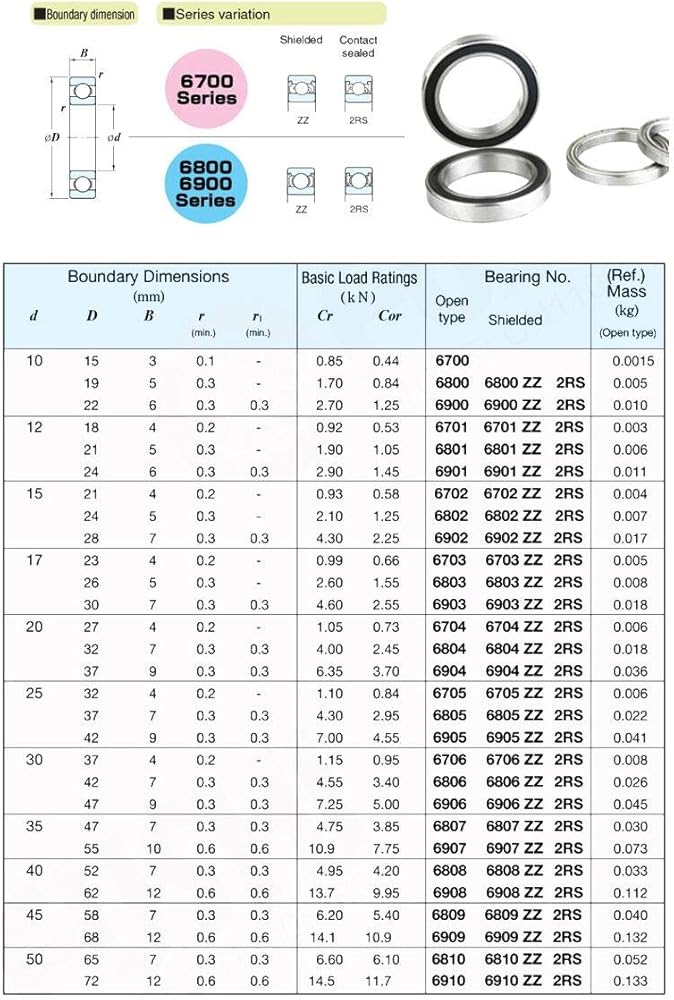

6700 Series - Metric dimensional series for very limited space applications and very light loads
6800 Series - Metric dimensional series for limited space applications and light loads
63800 Series - A hybrid between the 6800 and 6900 Series with the load capacities of the 6800 series but the width of the 6900 series.
6900 Series - Metric dimensional series for limited space applications and heavier loads
TECH DEATAILS
Item: 6803-2RS
Structure: Thin Section Ball Bearing
Material: 52100 Chrome Steel
Type: Rubber Sealed ( RS )

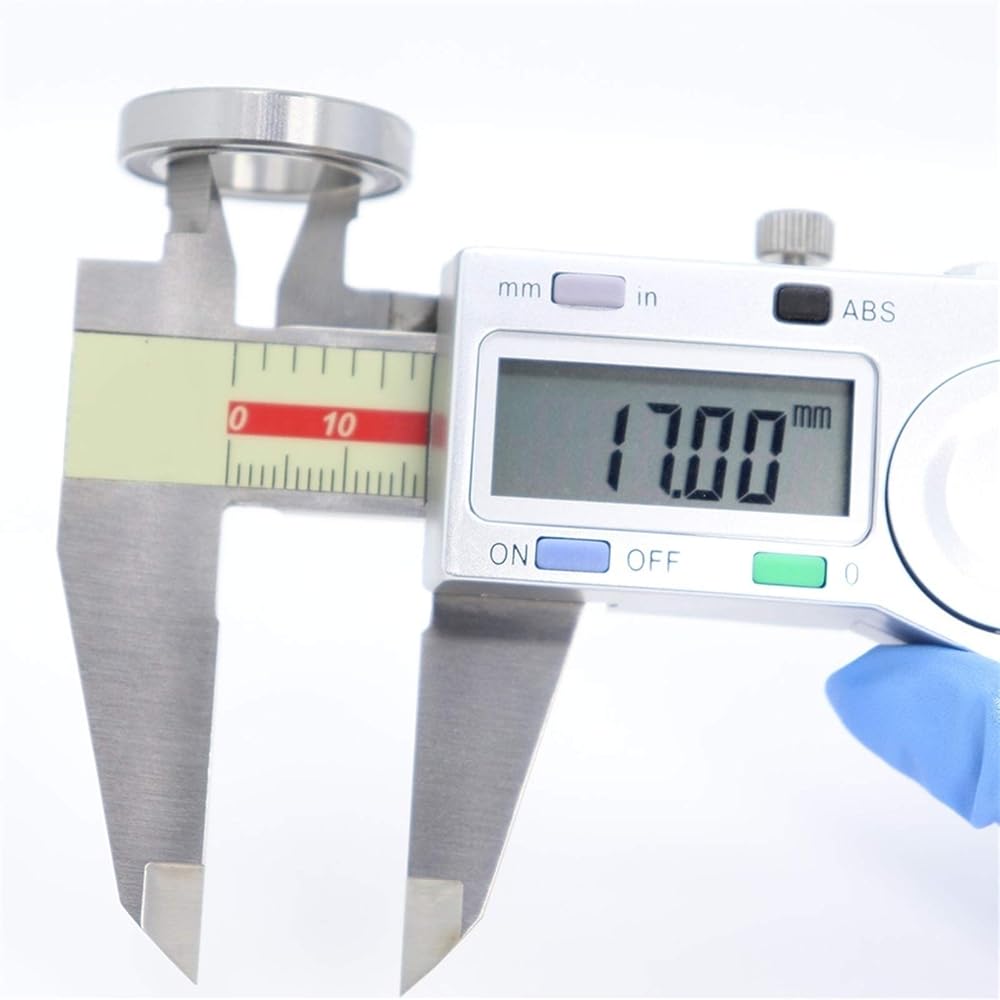

Bore Dia (d): 17 mm

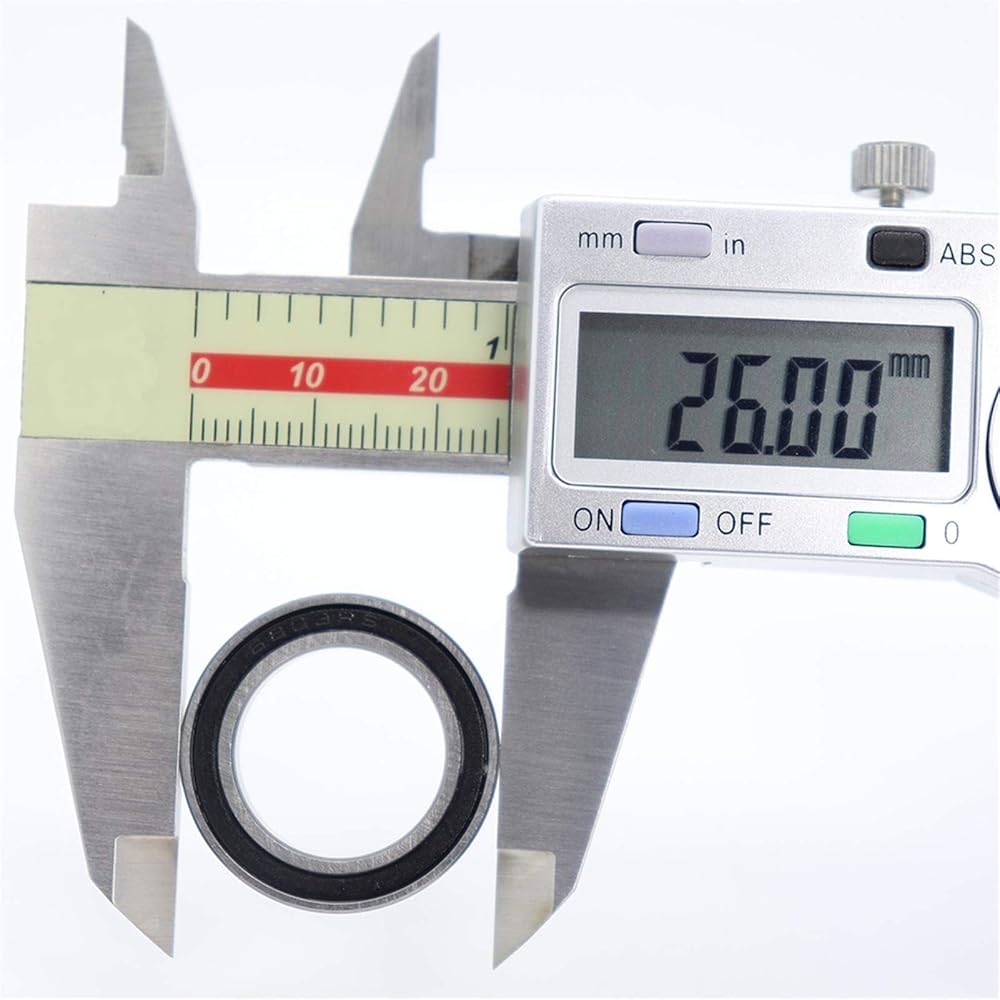

Outer Dia (D): 26 mm

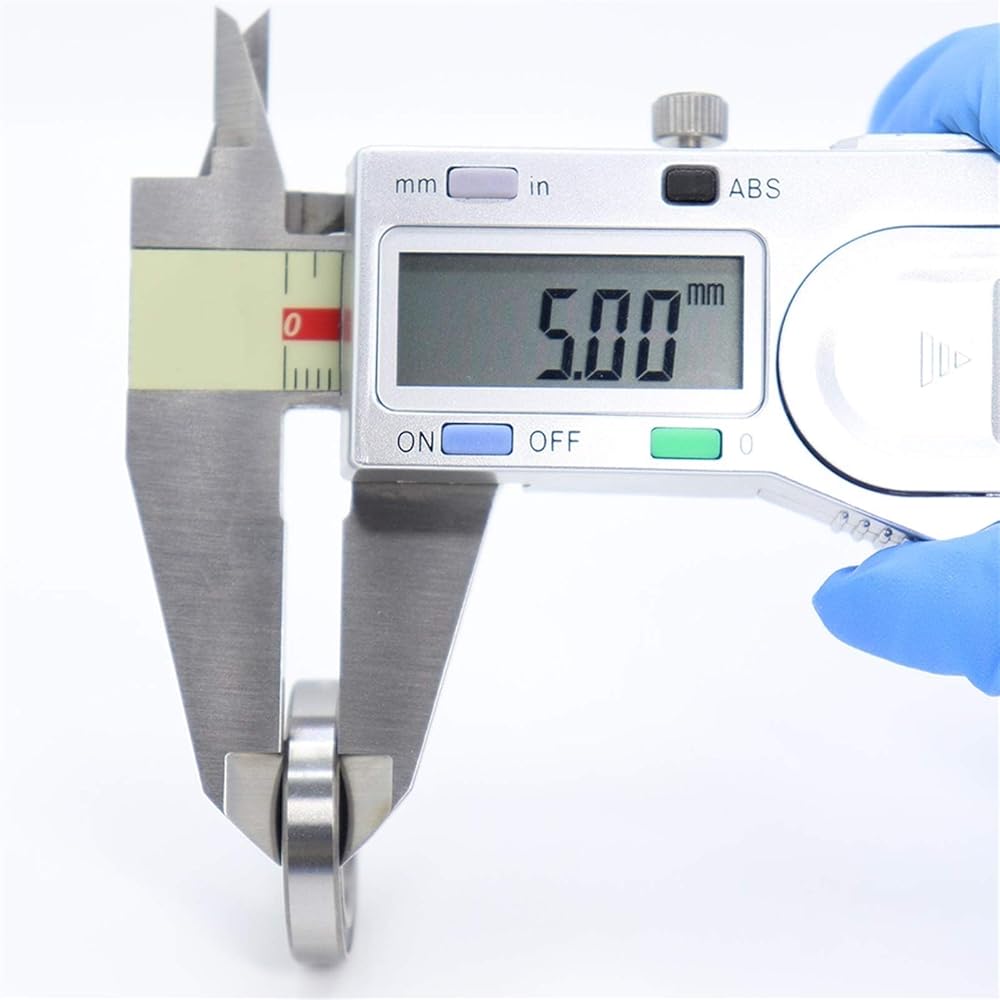

Width (B): 5 mm
Clearance: C2
Grades: ABEC-5
Lubrication: With Grease
Quantity: 1 Lot = 6 PCS
FEATURES &APPLICATIONSmallsize and light weight
In the most popular type of bearings the 6000 series the required space for their installation will be reduced to about 1/3.
Various sealing types
Wide choices are available in mounting methods and lubrication system, for shielded type, non-contact type sealed and contact type sealed bearing are provided.
Low torque
Small cross-sectional area indicate that these bearings require low running torque.
In addition, the 6700 bearing series incorporates particularly low-friction contact seals.
