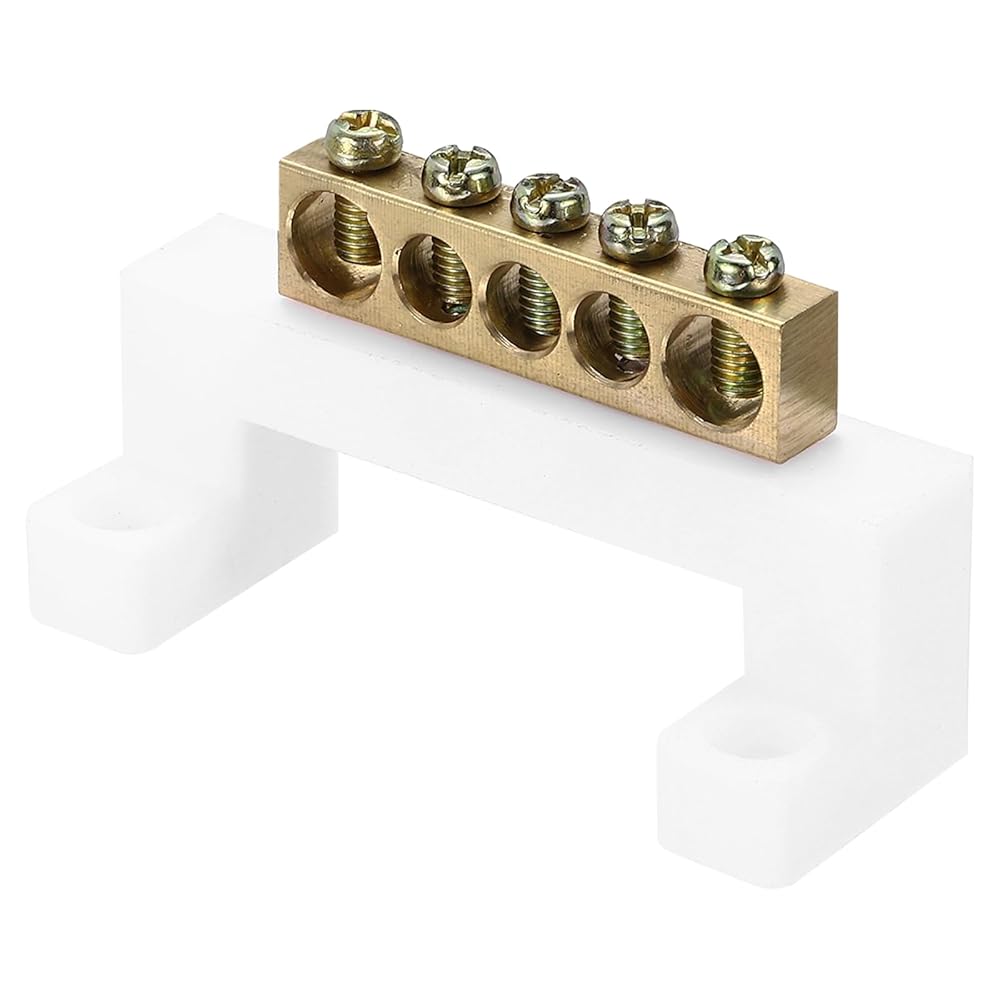

MECCANIXITY Terminal Ground Bar, 5 Positions Screw Brass Terminal Bus Bar, 8x12mm Ground Terminal Block for Electrical Equipment, Distribution Box, White

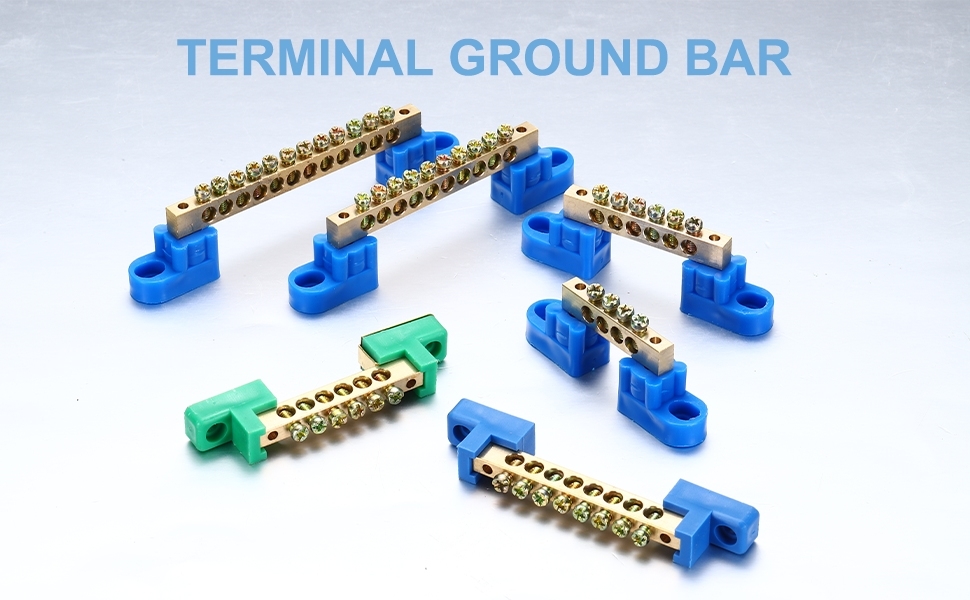

This terminal ground bar is a critical component in electrical systems designed to provide a common point for grounding multiple electrical circuit, commonly used in electrical panels, distribution boards, and other electrical applications that require secure grounding connections.
Screw Terminal Block Bar: Size: 73 x 26 x 42 mm / 2.87 x 1.02 x 1.65 inch in total size (L x W x H); Copper Bar Size: 45 x 8 x 12 mm / 1.77 x 0.31 x 0.47 inch (L x W x H); Hole Dia: 7.9mm / 0.31 inch; 6.4mm / 0.25 inch; Mounting Hole Dia: 6mm / 0.24 inch; Mounting Hole Distance: 62mm / 2.44 inch; Material: Copper; Color: White; Style: 5 Positions;
Excellent Conductivity: The conductive parts made of pure copper offer low electrical resistance, ensuring efficient current flow and reducing potential heat generation. Great Durability: The use of elected plastic shell material enhances the lifespan of the ground bar, reducing maintenance needs. Versatile Use: The ground terminal bar could be used in electrical panels, distribution box, distribution cabinet, high voltage cabinet and other electrical applications.
1. Securely attach the ground bar to the panel or enclosure using screws or bolts, ensuring it is firmly fixed; 2. Terminate the grounding wires from various circuits to the ground bar by inserting them into the terminals and tightening the screws; 3. Double-check the connections to ensure if they are tight to achieve the best performance.
Please make sure that the number of positions of the ground bar meets the requirements of all your devices.
