Metal Ball Screw nut end Processing 300-1000mm SFU2510 Ball Screw Set Kit with Single Nut + BKBF20 Support + DSG25H Nut Housing + D40L66 Coupling(350mm) in Saudi Arabia

Metal Ball Screw nut end Processing 300-1000mm SFU2510 Ball Screw Set Kit with Single Nut + BKBF20 Support + DSG25H Nut Housing + D40L66 Coupling(300mm)

SAR 1,182
Brand
KUAOXK
Weight
3 kg
Size300MM
– 1 +

Special Features

  • 1. Ball screws are the most common transmission components used as transmission elements in machinery and precision machinery.
  • 2. Ball screws are made of carbon steel, which is more wear-resistant, greatly extending the service life of ball screws, and the life span is increased several times.
  • 3. Less heat generation, reduced required drive power, and high axial force per unit ball screw volume.
  • 1. Stable performance, strong performance, smooth rotation.
  • 2. Not easy to deform and wear, high precision and low noise.
  • 3. Effective dust prevention, lubrication, precise processing size.
  • 4. Can easily preload the rotational change and linear motion.

Description

1. Low friction, long service life; low operating noise.
2. Carbon steel and aluminum alloy, minimum starting torque, capable of high speed and micro feed.
3. Ball screws are widely used in CNC machine tools, industrial and other transmission equipment.
Specifications:
Model: SFU2510
Guide rail width or diameter: 25mm
Nut type: single nut
SFU2510 ball screw pitch/lead: 10mm
End processing: BKBF20
Manufacturing process: rolled thread
Precision: C7

Description:
High transmission efficiency, high positioning accuracy, good repeatability of positioning accuracy, long life, high rigidity, good transmission reversibility, bright surface, high matching accuracy, easy and light movement of the slider. Made of high-quality steel, wear-resistant, can meet high load capacity requirements. Easy to assemble Aluminum support rails with pre-drilled holes for easy installation.

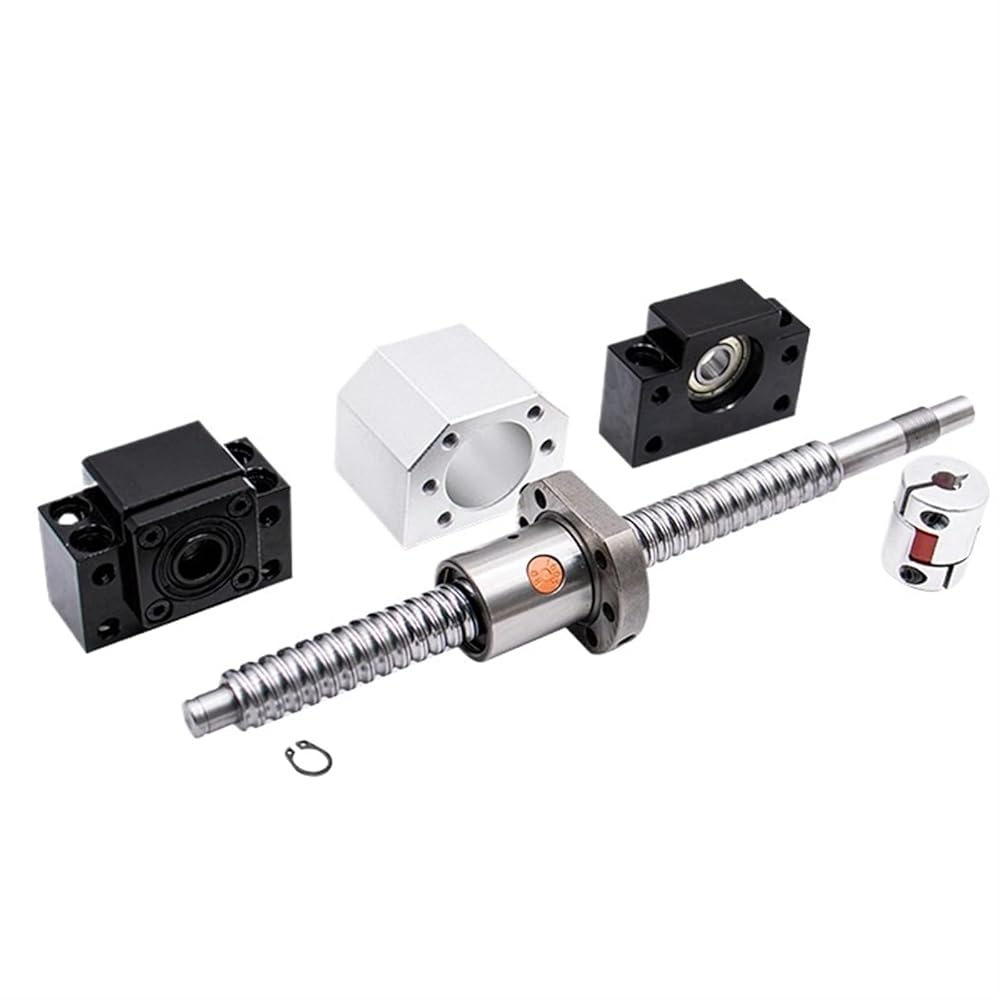

Packing list:
1pcs 25mm ball screw with nut
1pcs BKBF20 support seat
1pcs DSG25H nut seat
1pcs D40L66 17mmX14mm coupling
