Special Features

1. Ball screws are the most common transmission components used as transmission elements in machinery and precision machinery.
2. Ball screws are made of carbon steel, which is more wear-resistant, greatly extending the service life of ball screws, and the life span is increased several times.
3. Less heat generation, reduced required drive power, and high axial force per unit ball screw volume.
1. High fit precision, easy and light movement of the slider.
2. Wear-resistant, can meet high load capacity requirements.
3. Easy to assemble The aluminum support rails come with pre-drilled holes for easy installation.

Description

1. Low friction, long service life; low operating noise.
2. Carbon steel and aluminum alloy, minimum starting torque, capable of high speed and micro feed.
3. Ball screws are widely used in CNC machine tools, industrial and other transmission equipment.
Specifications:
Model: SBR20+SFU2005
Guide rail width or diameter: 20mm
HM15-86: for NEMA34 motor
HM15-86 material: cast iron
C7: normal

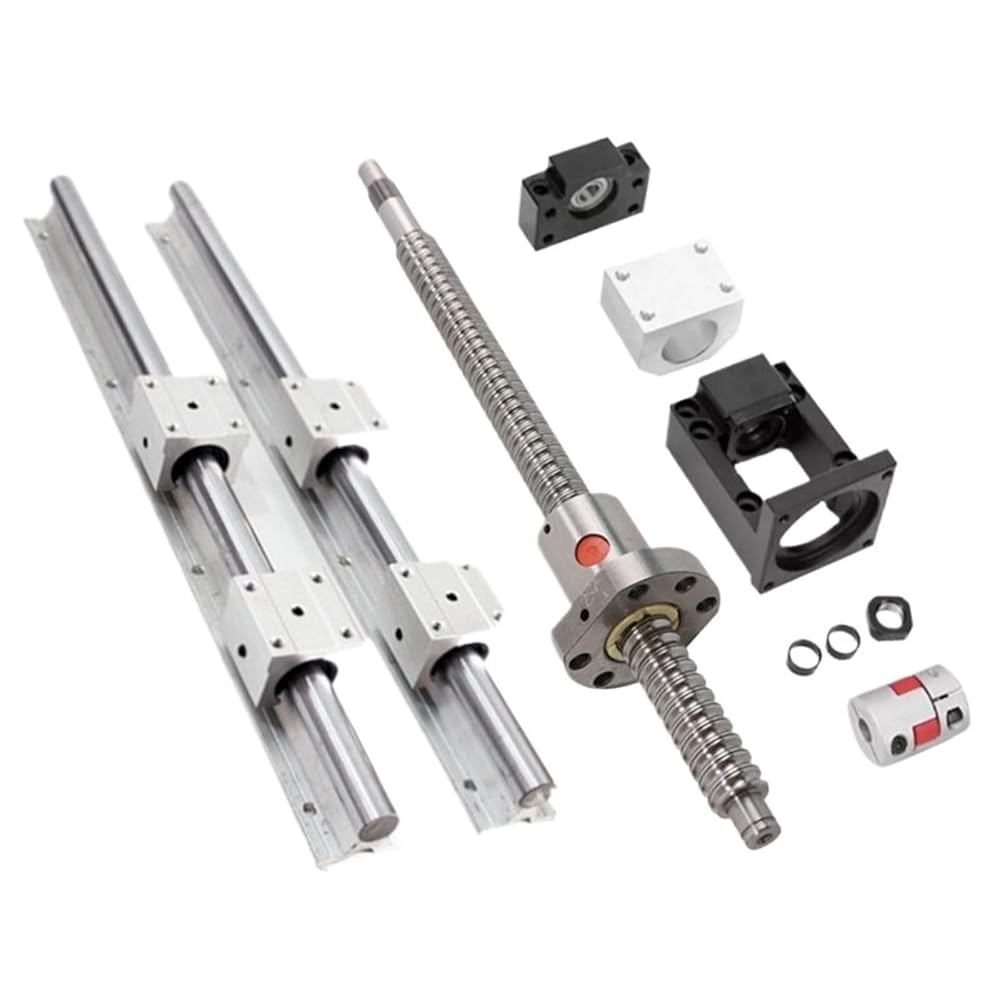

Packing list:

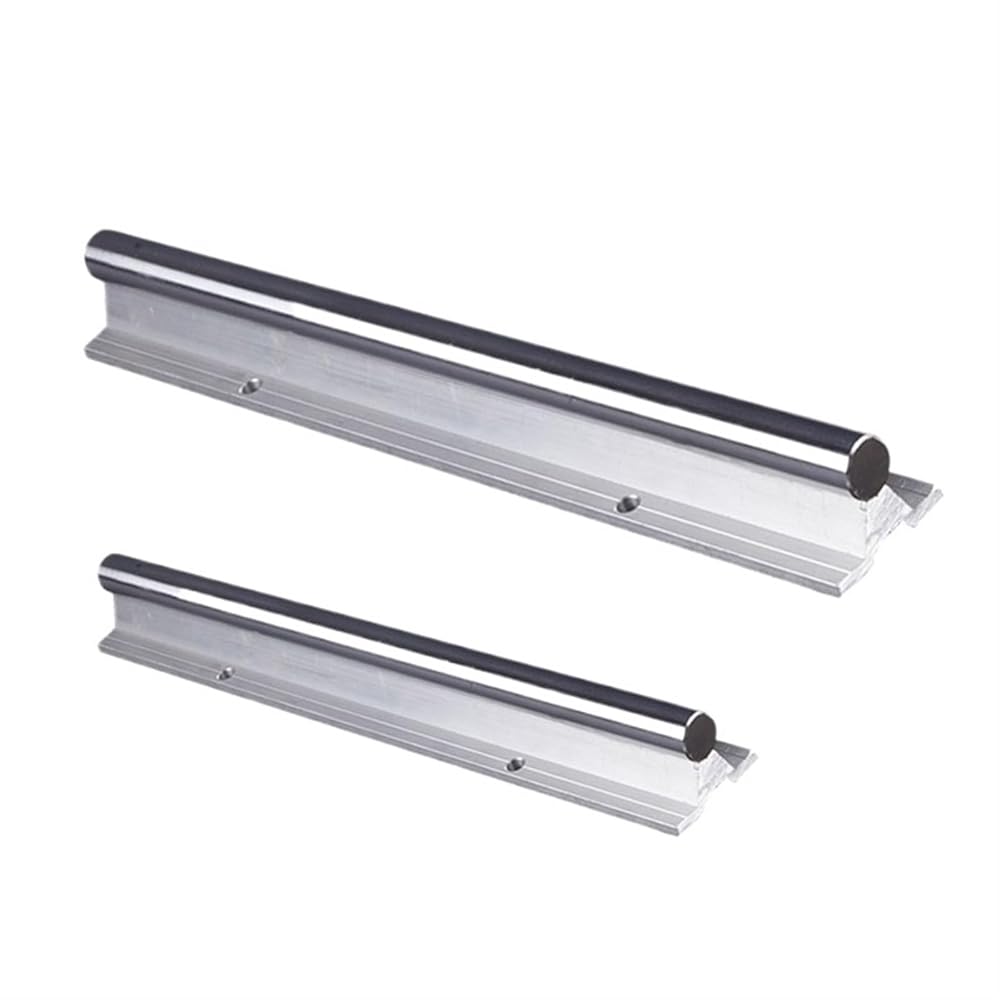

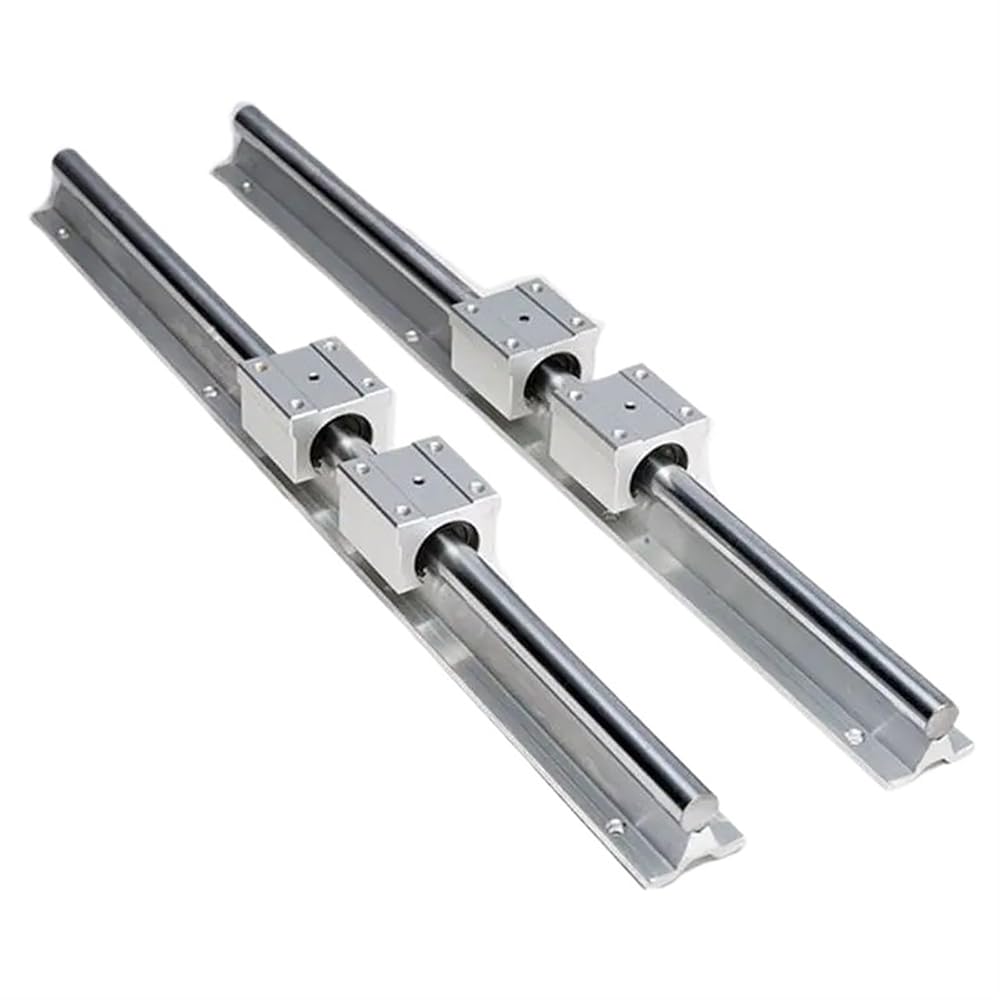

2pcs SBR20 linear guide + any length
4pcs SBR20UU slider

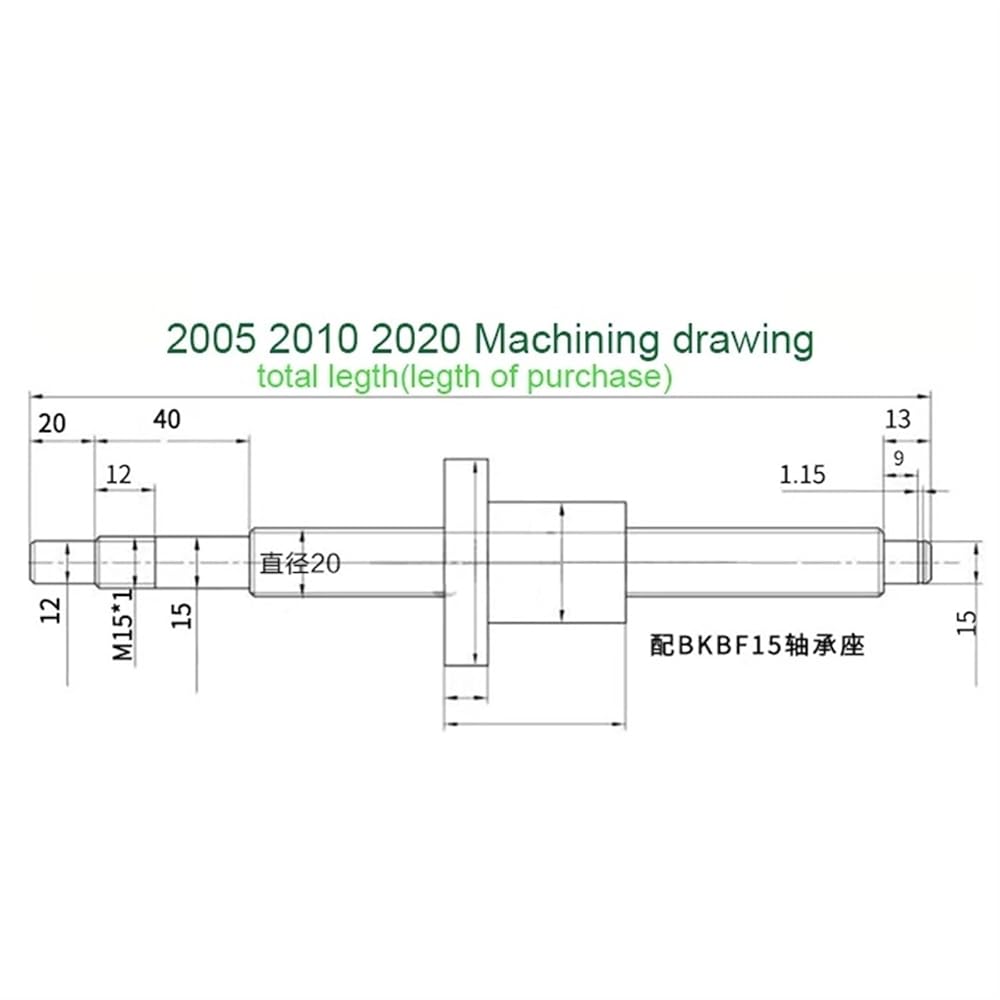

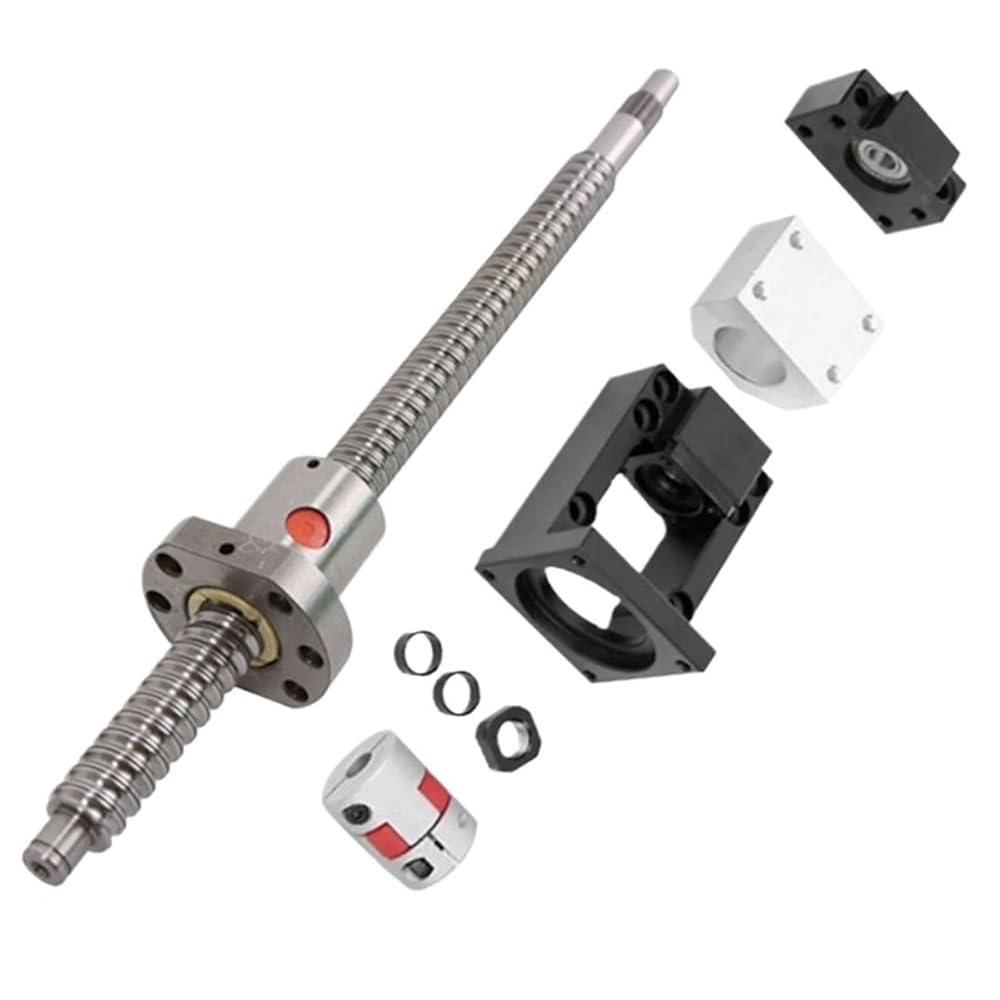

1pcs SFU2005 ball screw with ball nut and end processing + any length
1pcs BF15 end support
1pcs HM15-86 C7 cast iron
1pcs DSG20H nut housing
1pcs XB30*40-12*14mm coupling
