X-محور LWX2542 25*42 مللي متر تتوافق مقبض نقل الحركة تعديل المنزلق in Saudi Arabia

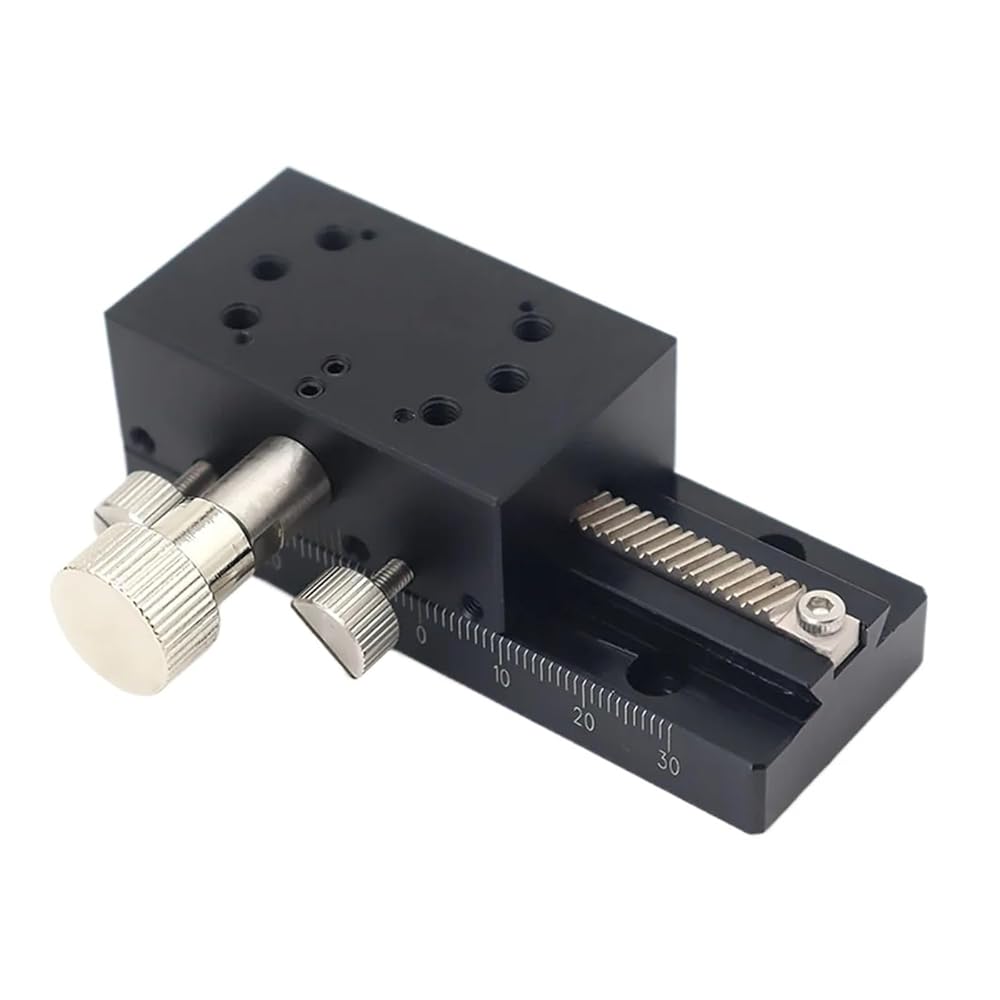

X-محور LWX2542 25*42 مللي متر تتوافق مقبض نقل الحركة تعديل المنزلق

SAR 1,445
ماركة
UOSBBQZO
وزن
50 g
– 1 +

مميزات خاصة

  • Roller Tables
  • Handwheel and rack transmission: Reliable handwheel and rack transmission system, operation is fast and stable.
  • Dovetail X-Axis |
  • High Load Capacity: Supports loads up to 24.5N (2.5kgf), ideal for heavy-duty applications.
  • Large Stroke Capability: Movement range up to +12mm, providing flexibility in stroke length to meet various needs.
  • LIGHTWEIGHT ALUMINUM ALLOY: The guide is made of durable aluminum alloy

وصف

Roller Tables
scope:
Countertop size: 25*42mm
Movement direction: X axis
Driving mode: handwheel + rack and pinion
Table thickness: 34mm
Stroke: ±12mm
Load: 24.5N (2.5kgf)
Moving parallelism: 0.3mm/24mm
Parallelism: 0.03mm
Minimum scale: 0.1mm
Weight: 0.2KG
