Special Features

【NOT ONLY FOR PAINT】Paint grind gauge can measure not only the fineness of paint, but also the fineness of coatings,plastics, printing ink and so on. In chocolate, ceramics, paper, medicine, food and other industries, it is also possible to use single groove grinding fineness design for fineness detection.
【INDEX VALUE 5μm】Single groove grindometer: 150um, Scale in microns (μm), the accuracy of fineness plate grooves is ± 1μm.
【READING】Drop some samples on the deeper groove gauge, then scrape them from deeper to low groove. Immediately (not over 5 seconds) observe the tick mark of grain visible in the channel, this numerical value is the fineness.
【READING UNIT: μm】Various specifications are available to meet your different needs.

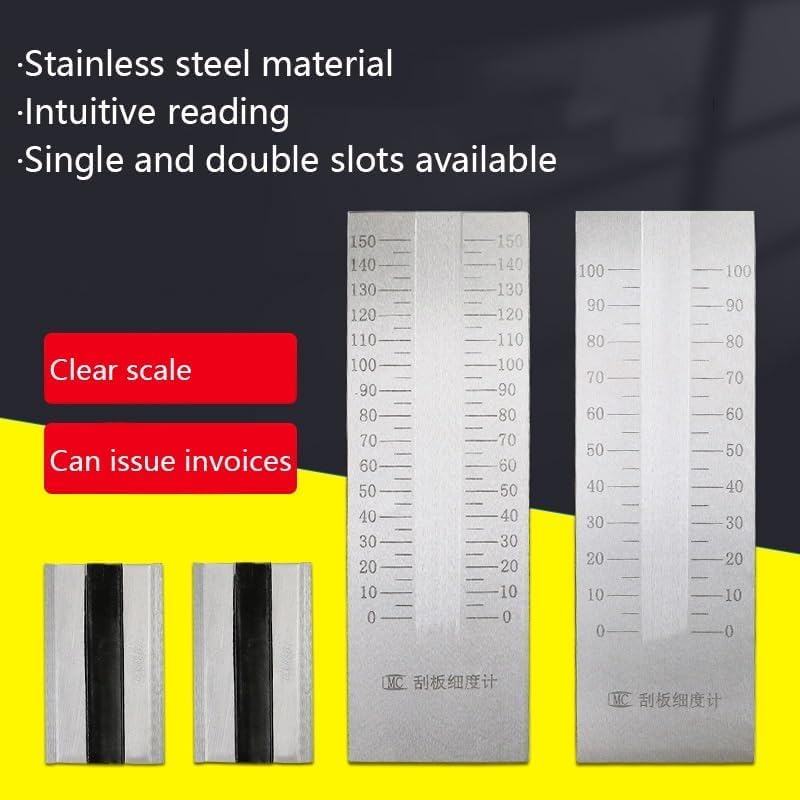

【HOW TO CHOOSE GRINDOMETER】Choose a grind gauge 5-10um higher than the fineness range you measured. Single groove means only one scraper groove.

Description

Product introduction:
It can be used to test the fineness of particles such as pigments, fillers and impurities in paints and paint pastes, expressed in μm;

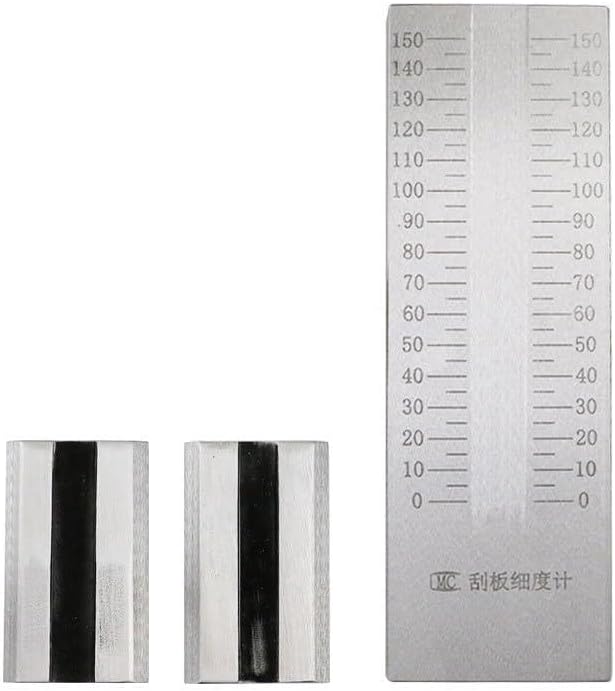

[Product name]: Scraper fineness meter
[Scraper size]: 155*50*12mm
[Channel size]: 120*13mm
[Scale value]: 2.5μm, 5μm
[Scraper size]: 68*40*6mm
[Product function]: It can be used to test the pigments in paints and paint pastes

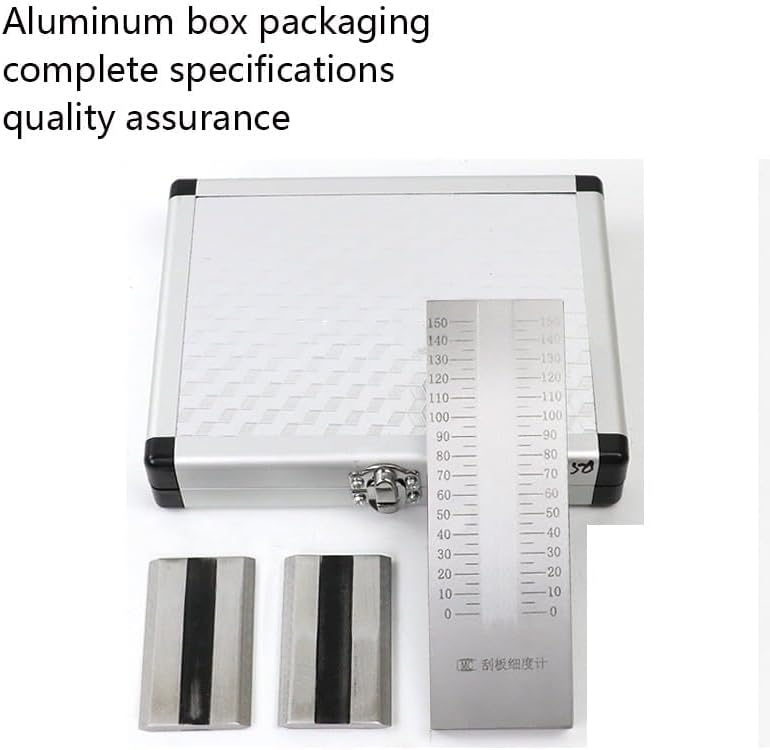

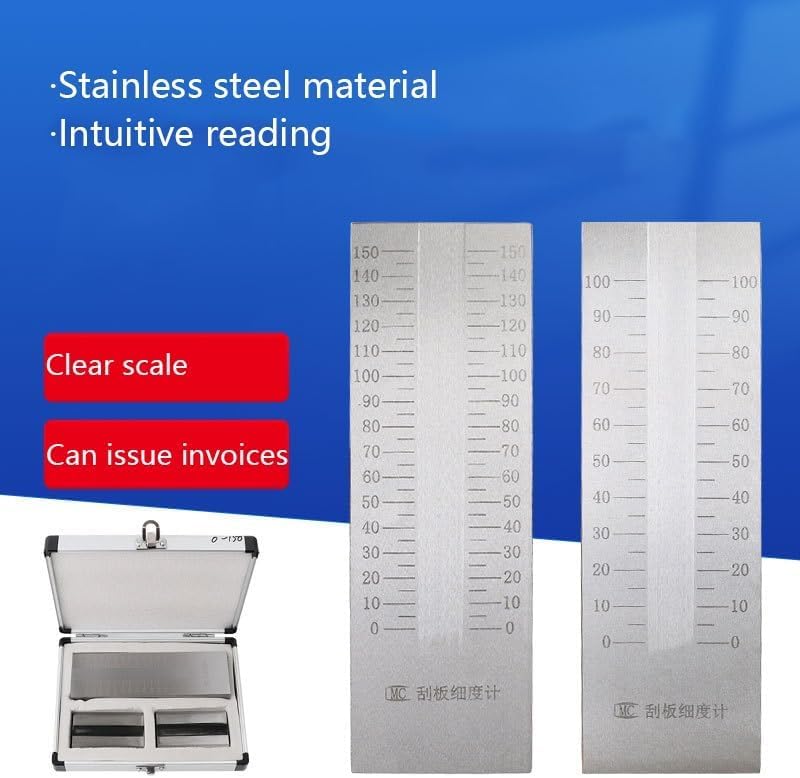

[Product packaging]: Aluminum box packaging

Product accuracy:
(1) Flat straightness of scraper 0.003mm, 0-25 flat straightness 0.002 (within the scale range)
(2) Flat straightness of bottom of chute 0.003mm, 0 -25 plane straightness 0.002 (within the scale range)
(3) Scraper blade flatness 0.002mm

Surface finish:
(1) Scraper upper surface: 10
(2) Bevel groove bottom: 8
(3) Scraper blade smoothness: 8

Product use:
0-25um 1:4000
0-50um 1:2000
0-100um 1:1000
0-150um 1.5:1000
