Bearings
Bearing

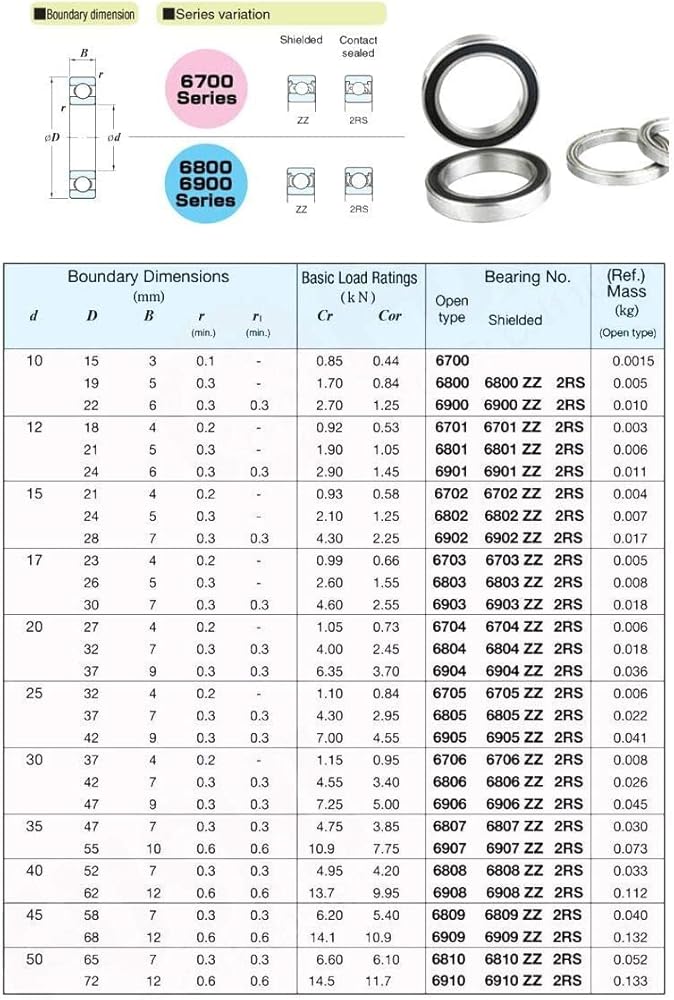

6700 Series - Metric dimensional series for very limited space applications and very light loads
6800 Series - Metric dimensional series for limited space applications and light loads
63800 Series - A hybrid between the 6800 and 6900 Series with the load capacities of the 6800 series but the width of the 6900 series.
6900 Series - Metric dimensional series for limited space applications and heavier loads
TECH DEATAILS

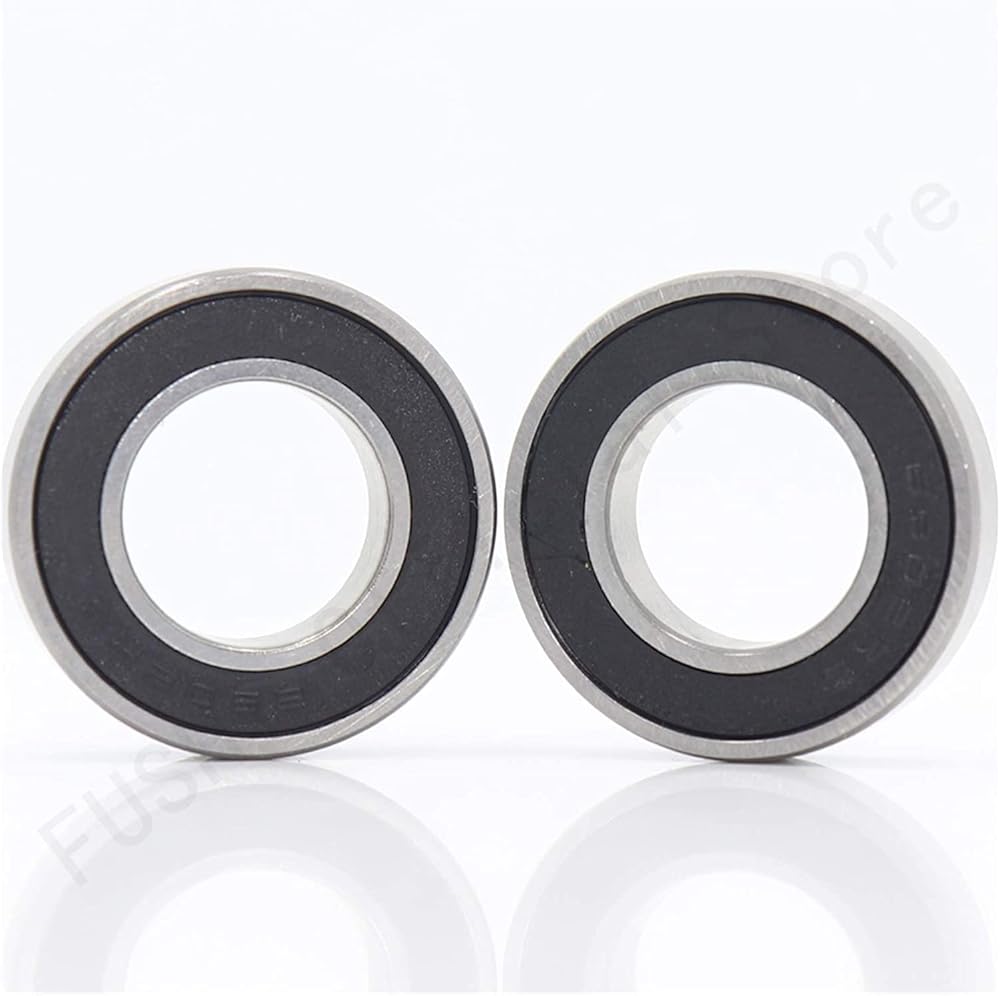

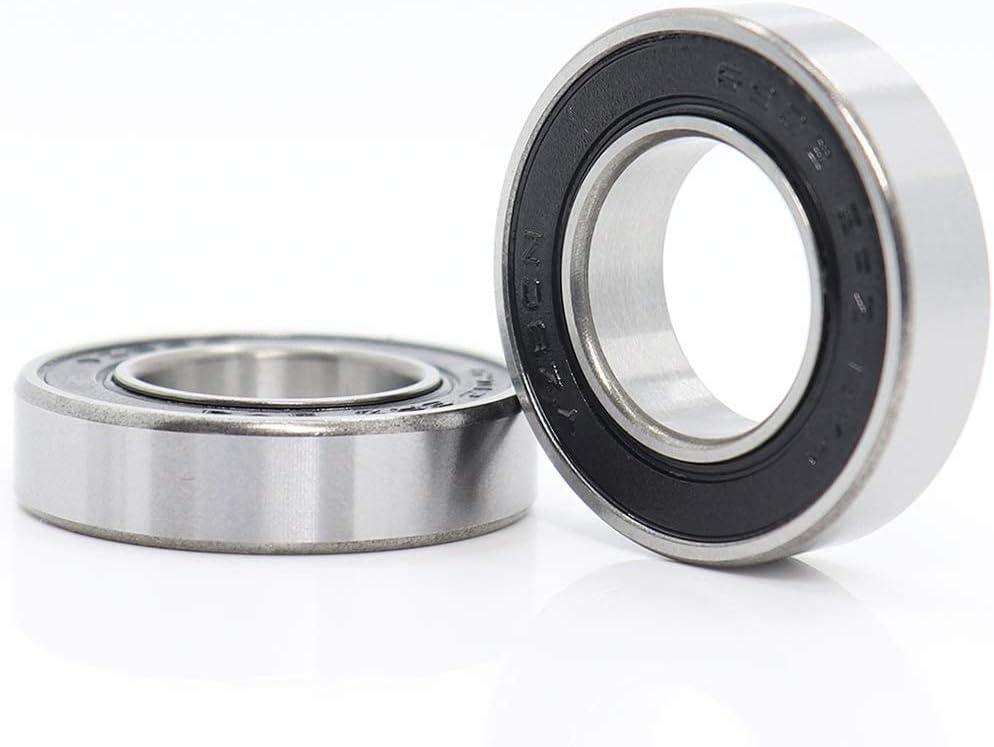

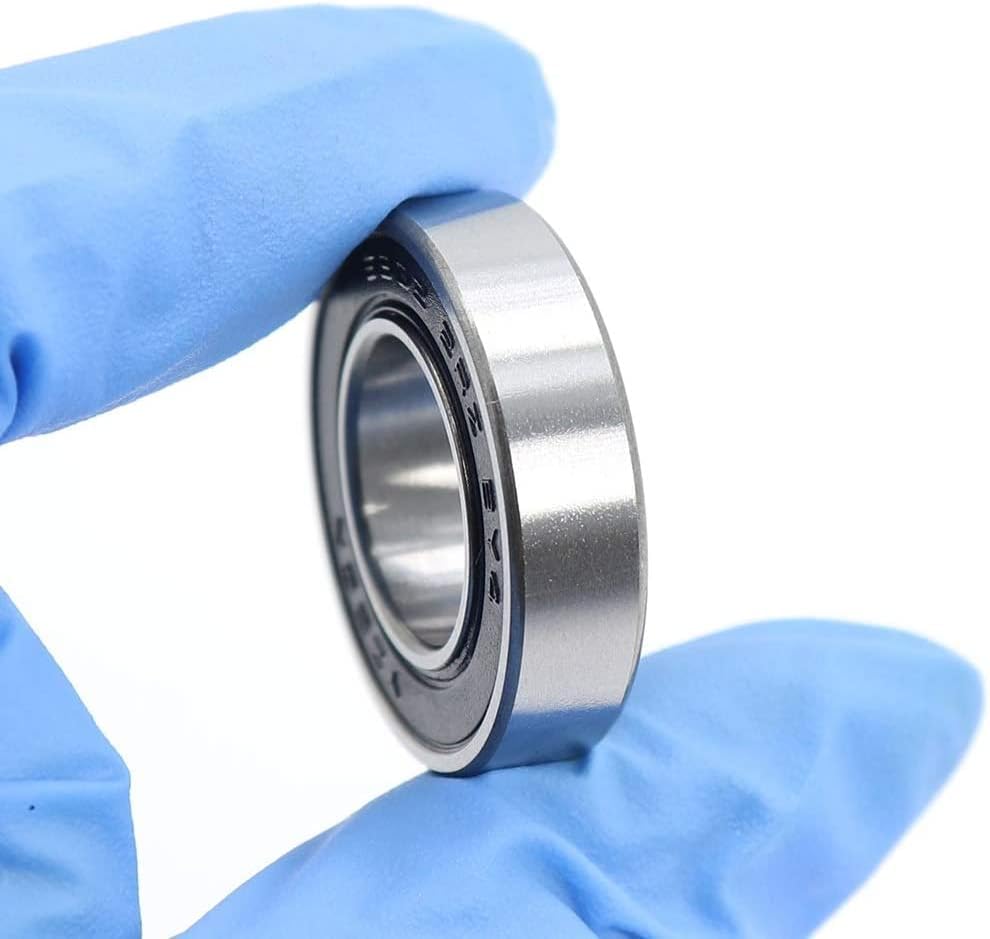

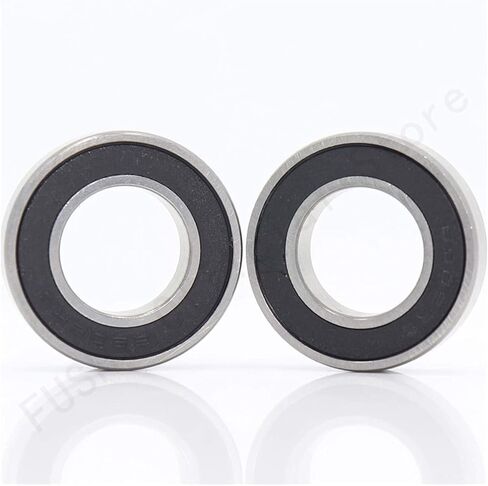

Item: 6902-2RS
Structure: Thin Section Ball Bearing
Material: 52100 Chrome Steel
Type: Rubber Sealed ( RS )

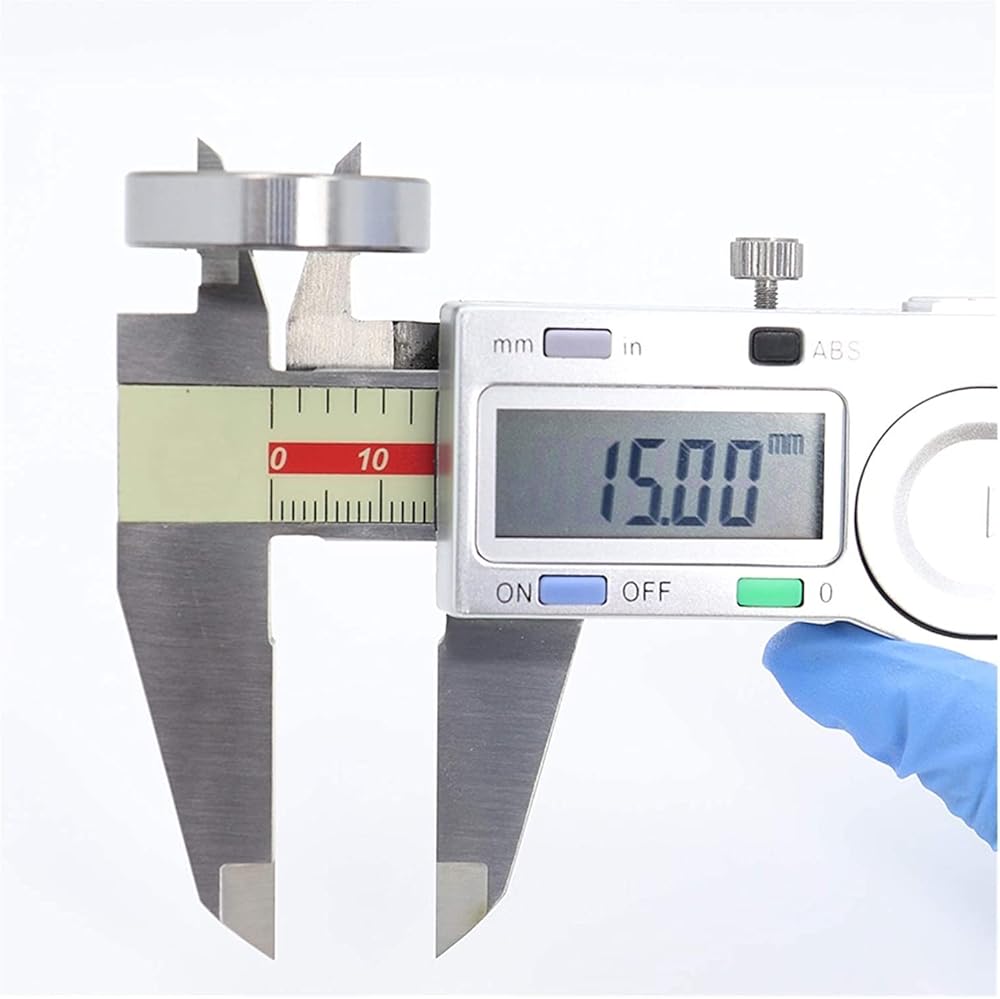

Bore Dia (d): 15 mm

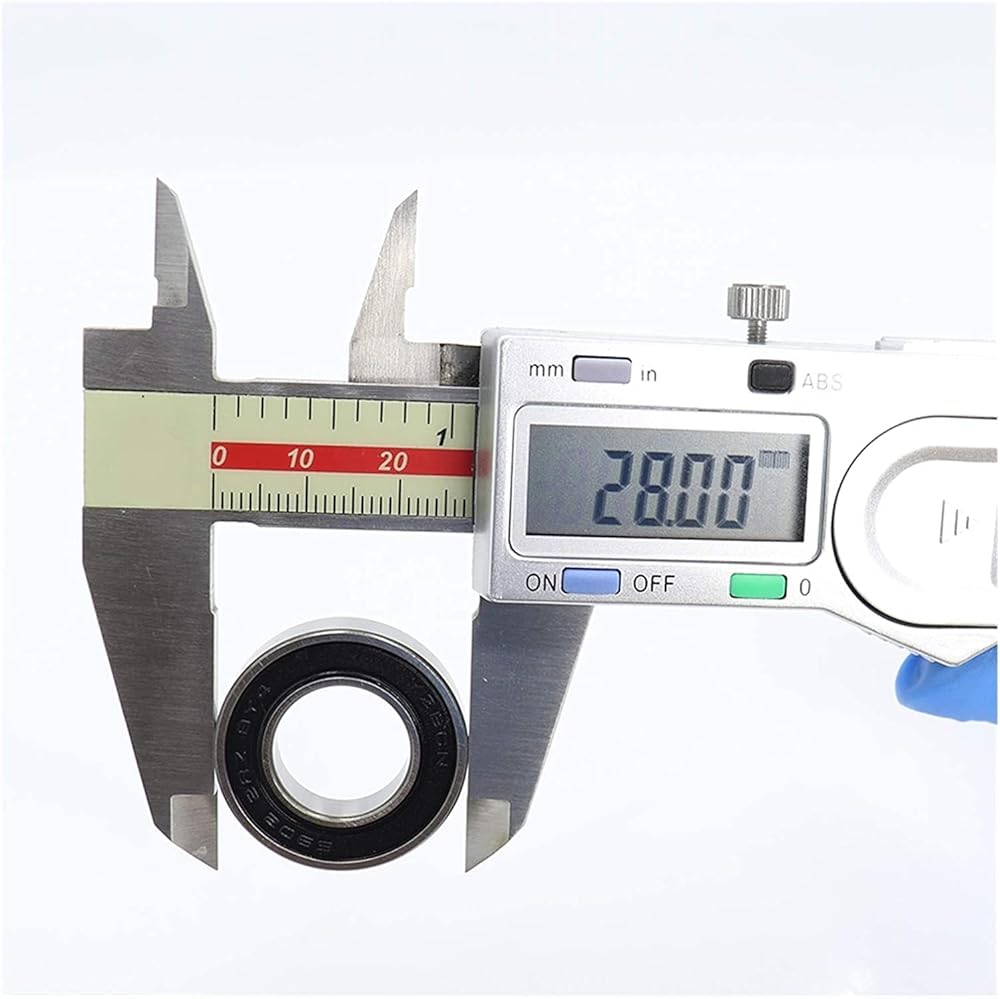

Outer Dia (D): 28 mm

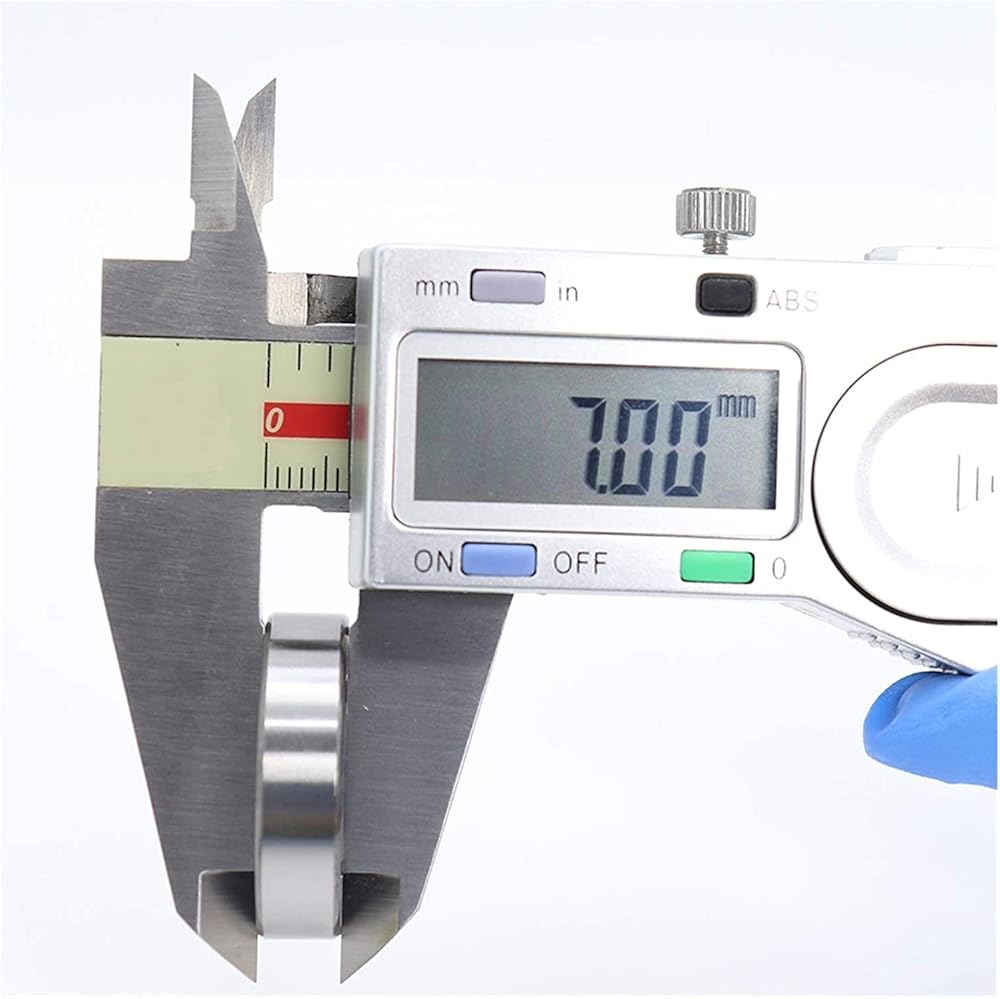

Width (B): 7 mm
Clearance: C2
Grades: ABEC-5
Lubrication: With Grease
Quantity: 1 Lot = 6 PCS
FEATURES &APPLICATION
Small size and light weight
In the most popular type of bearings the 6000 series the required space for their installation will be reduced to about 13
Various sealing types
Wide choices are available in mounting methods and lubrication system, for shielded type, non-contact type sealed and contact type sealed bearing are provided.
Low torque
Small cross-sectional area indicate that these bearings require low running torque.
In addition, the 6700 bearing series incorporates particularly low-friction contact seals.
