Connectors
Not suitable for European and American connectors.
Main Dimensions Of PT Thread:
Thread Size
Number Of Teeth
Pith (mm)
Thread Height (mm)
Radius Of Rounded (mm)
Major Diameter (mm)
Pitch Diameter (mm)
Minor Diameter (mm)
1/8"
28
0.91
0.58
0.12
9.73
9.15
8.57
1/4"
19
1.34
0.86
0.18
13.16
12.3
11.45
3/8"
19
1.34
0.86
0.18
16.66
15.81
14.95
1/2"
14
1.81
1.16
0.25
20.96
19.79
18.63
3/4"
14
1.81
1.16
0.25
26.44
25.28
24.12
1"
11
2.31
1.48
0.32
33.25
31.77
30.29
==========
Hign-concerned Chemical : None
Type : Fittings

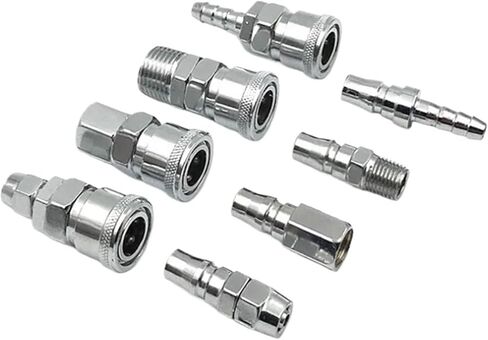

Model Number : SP30 PP30 SM30 PM30 SF30 PF30 SH30 PH30
Origin : Mainland
Certification : None
