1. The useful life of the sliding is 10 million revolutions, which has the ability to withstand the level of IP51 protection.
2. Easy to use, with high performance, this collecting has a precious metal material.
3. Admits high power, the high -power equipment accessory has high performance.
4. Titled with practical adoptability, its can maintain its high performance for a long time.
5. Imported engineering plastics are to wear, pressure, heat, and anti -aging.

Specification:
Article type: Collector
Technical pattern

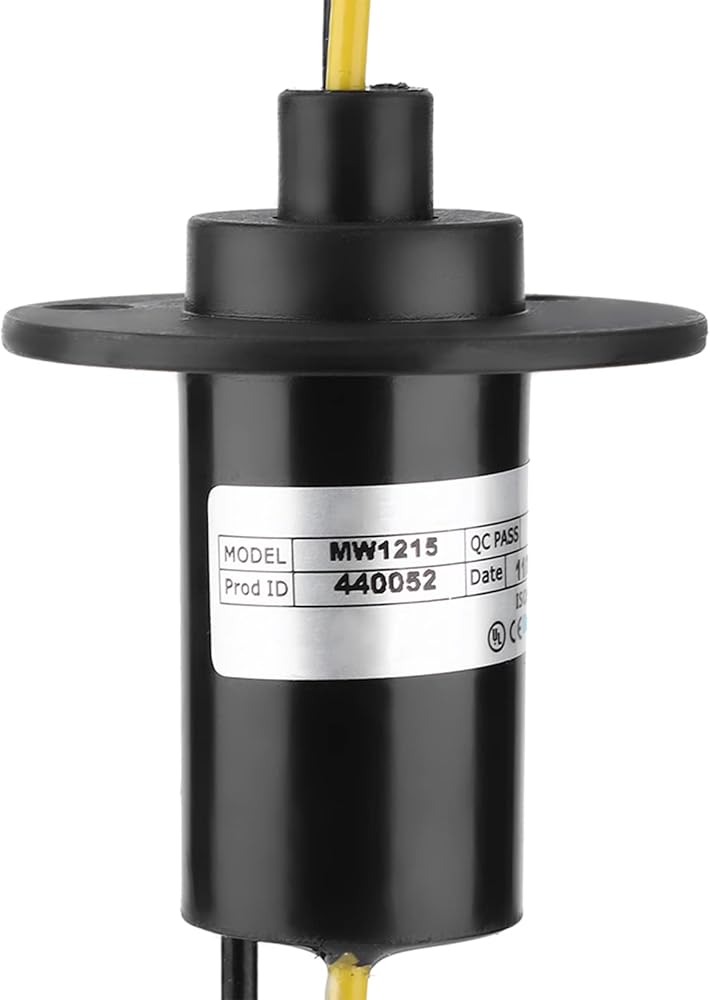

Model: MW1215
Rings number: 2
Nominal Current (A): 15
Exterior diameter (mm/in): approx. 22 mm/0.87 inches
Length (mm/inches): approx. 45 mm/1.77 inches
Mechanical technical indicators
Useful life: 10 million revolutions
Nominal speed: 150 rpm
Work temperature: -30 ℃ ~ 80 ℃
Operating humidity: 0 ~ 85% Rh material: precious metal
Housing material: Pbt
Rotation moment: 0.1 n/m; + 0.03nm / 6 channels
Protection level: IP51
Nominal voltage: 0 ~ 600 / VCC
Insulation : ≥1000mq / 500 Vcc
Cable pattern: 10 A = AWG # 16; 20A = AWG No. 14; 30A = AWG # 12;
Cable length: Standard length: approx. 300 mm/11.81 inches (adjusted as necessary)
Isolation force: 500 at 50 Hz, 60 s
Dynamic change value:

Packaging list:
1 sliding .

Grades:
