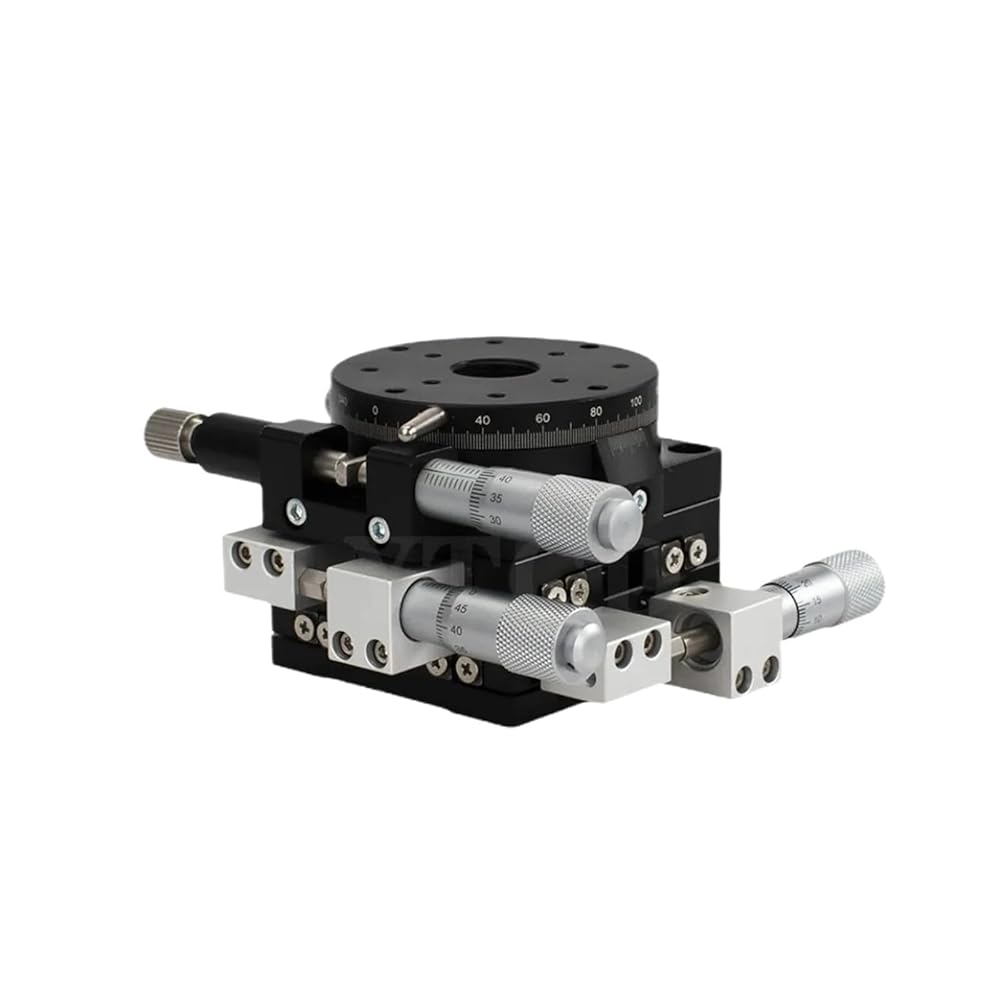

XYR محور 60 مم ميكرومتر منصة التشذيب اليدوية والسكك الحديدية الأفقية الدوارة (LS60-L)
مميزات خاصة
- Roller Tables
- High Accuracy: Fine adjustment with 0.03mm accuracy and 0.01mm minimum reading for optimal alignment.
- Multifunctional motion: The XYR axis provides ±6.5mm XY translation and ±5°R axis fine adjustment to enhance positioning flexibility.
- Lightweight design: This platform table is made of aluminum alloy and weighs only 0.64 kg
وصف
Roller Tables
scope:
1. Moving direction: XYR direction
2.Material: aluminum alloy
3. Slide table: 60mm*60mm
4. Diameter: 60mm
5. Load: 29.4N (3kgf)
6. Accuracy: 0.03mm
7. Parallelism: 0.03mm
7. Minimum reading: 0.01mm
8. Movement amount: XY axis ±6.5mm, R axis 360° fine adjustment ±5 degrees
9. Weight: about 0.64kg
