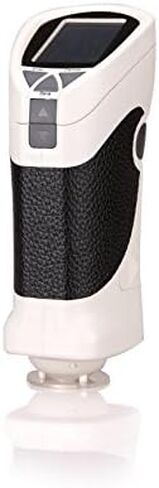

CS-200 Colorimeter Color Analyzer Digital Precise Colorimeter Color Difference Meter Tester, 8°/diffused illumination, 8mm, Color Software Lab、Lch、Yxy, XYZ, RGB, Whiteness Yellowness in Saudi Arabia CS-200 Colorimeter Color Analyzer Digital Precise Colorimeter Color Difference Meter Tester, 8°/diffused illumination, 8mm, Color Software Lab、Lch、Yxy, XYZ, RGB, Whiteness Yellowness in Saudi Arabia CS-200 Colorimeter Color Analyzer Digital Precise Colorimeter Color Difference Meter Tester, 8°/diffused illumination, 8mm, Color Software Lab、Lch、Yxy, XYZ, RGB, Whiteness Yellowness in Saudi Arabia CS-200 Colorimeter Color Analyzer Digital Precise Colorimeter Color Difference Meter Tester, 8°/diffused illumination, 8mm, Color Software Lab、Lch、Yxy, XYZ, RGB, Whiteness Yellowness in Saudi Arabia CS-200 Colorimeter Color Analyzer Digital Precise Colorimeter Color Difference Meter Tester, 8°/diffused illumination, 8mm, Color Software Lab、Lch、Yxy, XYZ, RGB, Whiteness Yellowness in Saudi Arabia

CS-200 Colorimeter Color Analyzer Digital Precise Colorimeter Color Difference Meter Tester, 8°/diffused illumination, 8mm, Color Software Lab、Lch、Yxy, XYZ, RGB, Whiteness Yellowness

SAR 3,075
Brand
CHN Spec
Weight
1.5 kg
– 1 +

Special Features

  • Multiple color space display color values : L*a*b、L*c*h、Yxy, XYZ, RGB, Whiteness, Yellowness;

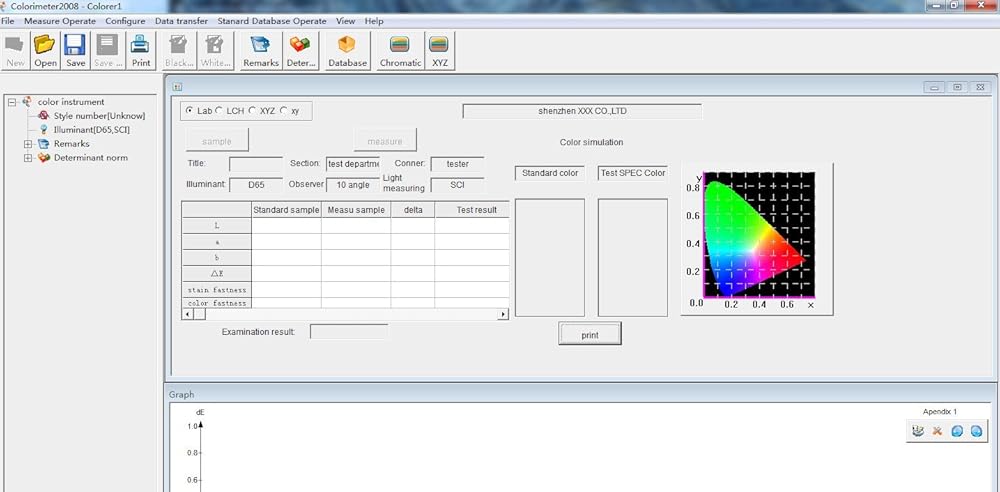

  • Free color management software;
  • Establish the prototype data L*a*b* by manually;
  • Test different points on sample and get the average value;
  • Extra standard black and white calibration tiles to do calibration manually.

Description

Introduction
CS-200 is widely used in different industries such as plastic cement, printing, paint, weaving and dyeing.

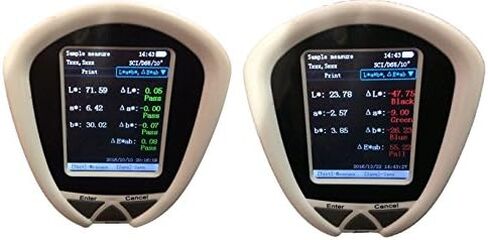

It measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.

Specification
Model: CS-200
Color Space: L*a*b,L*c*h,Yxy, XYZ, RGB, Whiteness, Yellowness
Accuracy: 0.08
Illumination: 8/d（8°/diffused illumination）SCI
Aperture: 8mm
Conditions: CIE 10° standard observer; CIE D65 light source
Range: L* 1-100
Repeatability: Standard deviation within △E*ab*，below 0.08(testing condition: measure the white calibration board 80 times for average)
Storage: 100 sets of standard samples; up to 100 under each standard sample
Speed: 0.5 seconds
Light source: LED
Languages: English

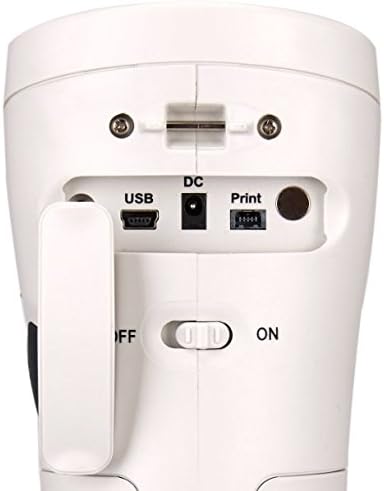

Power: 4 AA1.5V Alkaline battery or nickel-metal hydride batteries; Exclusive DC5V adapter
Weight: 550g
Size: 77×86×210mm

Packing List
Main instrument
Power Line
USB Cable
Driving Software
Color QC Software
Black/White Calibration Tiles
Operating Manual
Packing List
