1,010 Users (Output #1: 1,000 users, Output #2: 10 users).
2 Form C relay outputs.
Each relay has programmable output time from 1~99 seconds or toggle.
Output #2 can be programmed for use with a doorbell.
2 Egress inputs and 1 door sensor input.
Backlit keys for easy nighttime use.
2 Multi-colored status LEDs
All features are programmed directly from the keypad – no need for an external programmer.
EEPROM protects programmed information in case of power loss.
Optical tamper sensor for added security.
Circuitry is potted with epoxy for outdoor use.
Weatherproof (IP65).
Rugged aluminum construction.
Built-in proximity card reader.
3 Programmable access modes for Output #1: Card Only, Card or Code, and Card with Code.
Output #2 may have either a card or a code programmed for each user.
Manufacturer Part #: SK-2323-SPQ
UPC: 676544011057

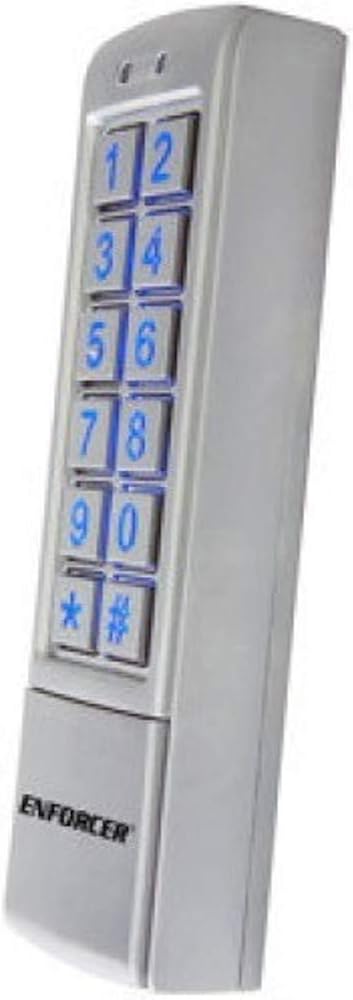

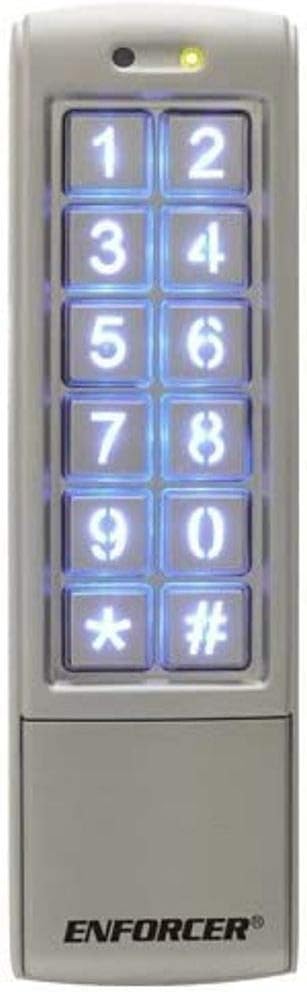

Type: Mullion-Style Weatherproof Digital Access Keypads
Number of user codes: Up to 1,010
Operating voltage: 12~15 VDC
Current drain:
Stand-by: 40mA@12VDC
Active: 70mA@12VDC

Relay outputs (2): 1A@30VDC, Form C, NO/COM/NC
Egress inputs: 2, N.O. Ground
Door sensor input: N.C. Ground
Tamper sensor: Optical
Operating temperature: -4° ~122° F (-20° ~50° C)
Keypad LED life: 60,000 hours (over 6.8 years)
Weight: 11-oz (312g)
Proximity reader frequency: 125kHz
Proximity reader distance: 1-15/16" (50mm)
Dimensions: 6"x1-3/4"x15/16" (152x44x24 mm)
Warranty: 1 Year
