Friendly reminder: Please refer to the second image for the correct dimensions. Thank you.
1. No slippage during operation; the synchronous pulley has buffering and damping functions, resulting in low noise and easy maintenance.
2. The synchronous pulley works in conjunction with the synchronous belt to achieve synchronous transmission.
3. Precise and stable transmission, wide power transmission range, suitable for long-distance transmission.

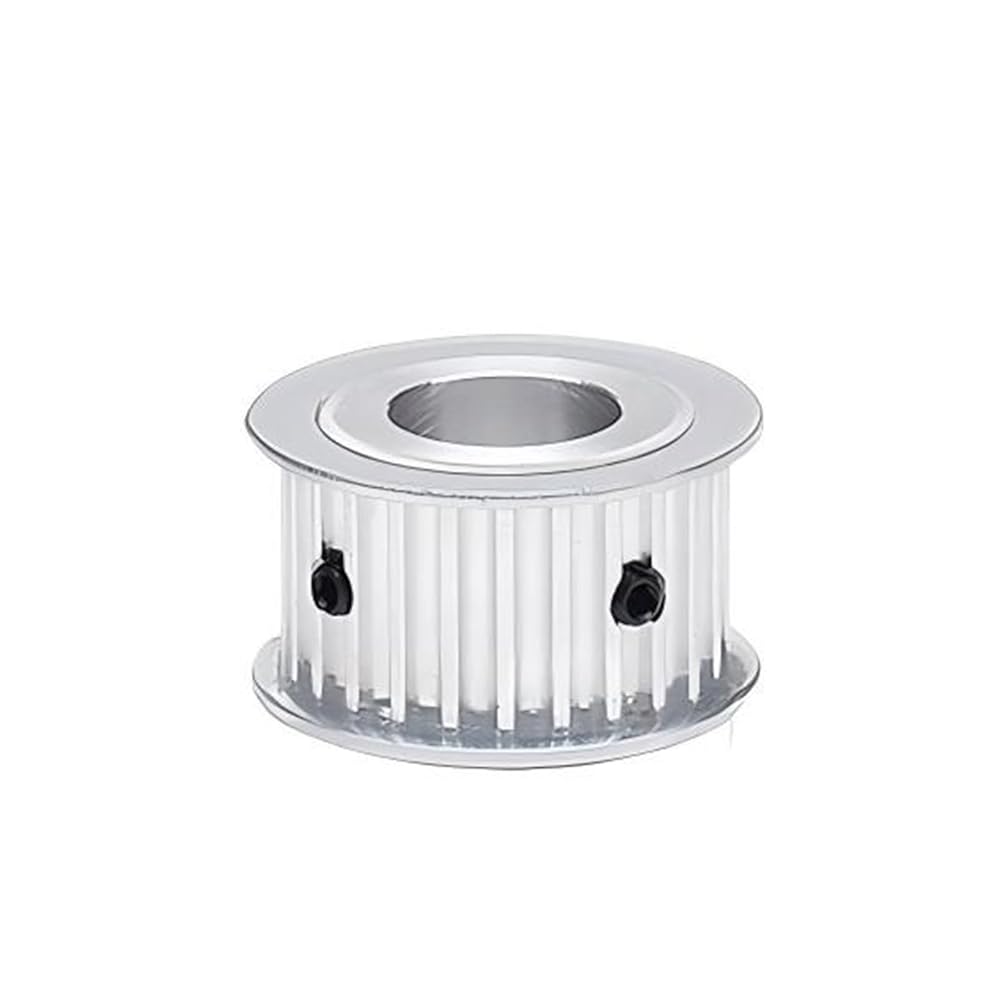

Double-sided flat 5M22 toothed synchronous pulley, groove width 21/23/27mm, AF type synchronous belt pulley.
Description
1. The synchronous pulley is made of aluminum alloy, making it sturdy and durable, with an anodized surface.
2. The synchronous pulley contacts the tooth side, minimizing the risk of belt slippage.
3. Widely used in CNC lathes, gear forming machines, gear hobbing machines, drilling machines, and other mechanical transmission applications.
Specifications:
Product Name: 5M Synchronous Belt Pulley
Material: Aluminum Alloy
Shape: AF type (flat on both sides)
Number of Teeth: 22teeth
Pitch: 5.0mm
Groove Width: 21/23/27mm
Application: Suitable for transmission components
