These are double-row screw terminals made of flame-retardant PA66 material and copper alloy. They are designed to simplify wiring in electronic circuits, mechanical equipment, and other electrical devices.
Terminal Block rated voltage/current universal: 20A/300V; Poles: 8 Positions (Dual Rows); Size(LxW): 93mm x 21mm / 3.7inch x 0.83inch; Terminal Pitch:9.5mm / 0.37inch; Conductor material: copper alloy; Insulator material: PA66; Insulation material color: Black; Applicable wire gauge range: 22-12AWG; Packing List: 4 Pcs x Barrier Terminal Block Strips with Flat Head Screwdriver

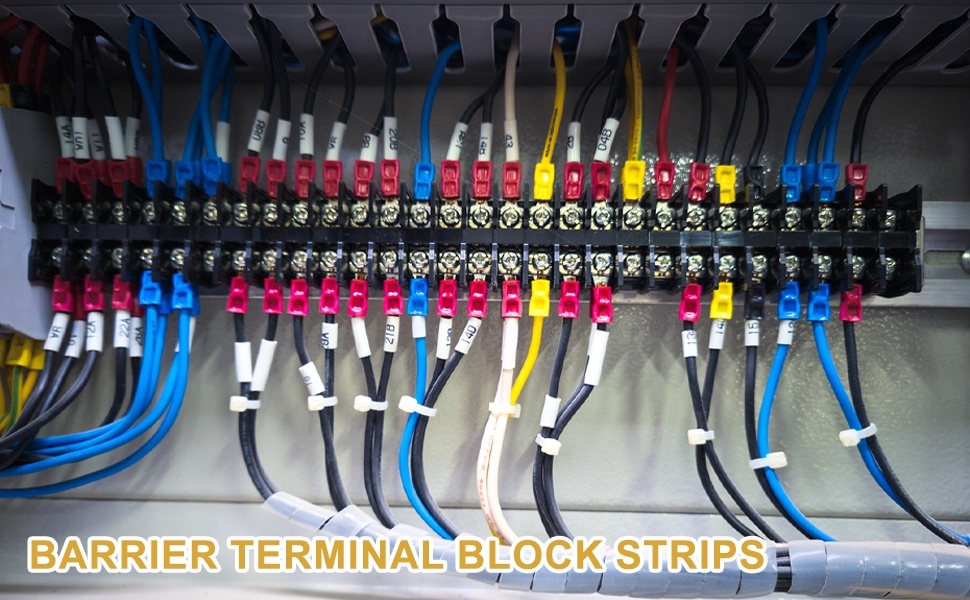

Easy Installation: A screwdriver is included in the package. The terminals are easy to install, with two screw holes at each end for easy securing. Additionally, there is a mounting hole at each end to ensure a secure installation. Flexible and Neat Wiring: These terminal blocks allow you to neatly connect each power cord to various power sources, good for compact wiring projects. They also allow you to disconnect individual branches without disassembling the entire system.
1. Use the included flat head screwdriver to loosen the screw of your target terminal position. 2. Strip a proper length of insulation from your wire, then insert the exposed metal part into the terminal hole. 3. Tighten the screw to secure the wire firmly. 4. Use the mounting holes to fix the terminal block at your desired location.
1. Do not exceed the 300V/20A rated specifications. 2. Always turn off the power before wiring to prevent electric shock.
