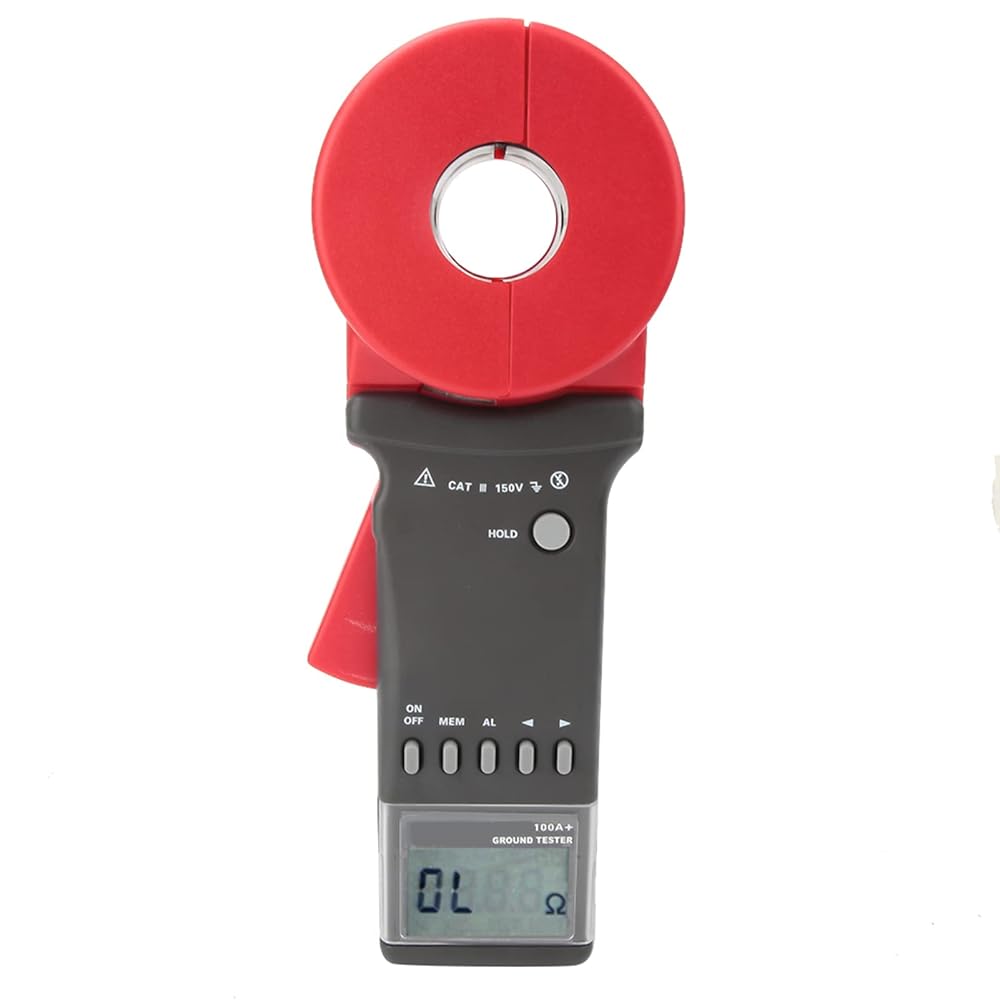

Specifications:
Condition: Brand New
Material: Plastic
Function: ground resistance test, loop resistance test
Power: 4 x 6V DC Battery (Battery not included)
Resistance range: 0.01-200Ω
Resistance resolution: 0.001Ω
Maximum resistance accuracy: ±1%±0.01Ω
Data storage: 99 sets
Alarm threshold setting range:
Resistance: 1-199Ω
Alarm sound and light: Beep-beep alarm sound, the alarm symbol flashes, press the AL key to turn it on, turn off the alarm or set the alarm threshold.
Interference signaling recognition: Beep-beep sound, NOISE symbol flashes
Working temperature: -20 ° C -55 ° C
Humidity: 20% RH-90% RH
LCD screen: 4-digit LCD display

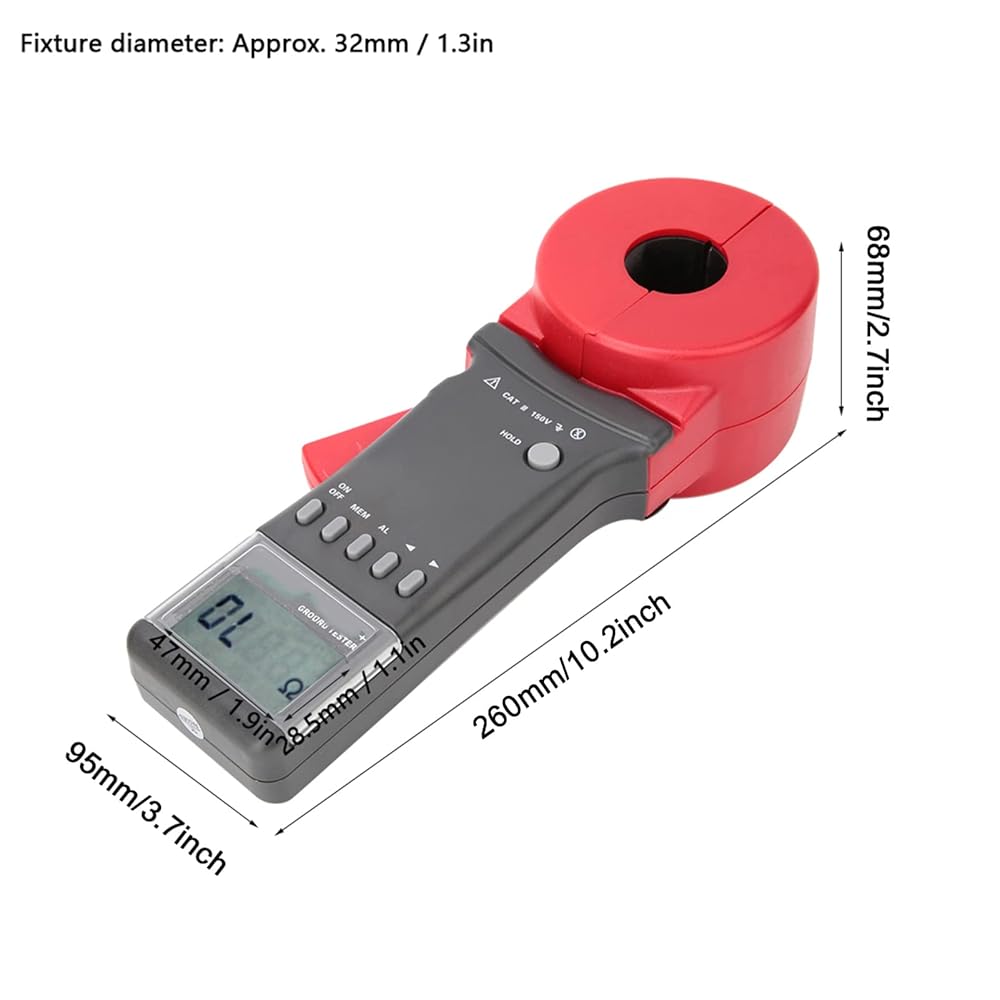

Screen size: Approx. 47 x 28.5mm / 1.9 x 1.1in
Fixture diameter: Approx. mm / 1.3in

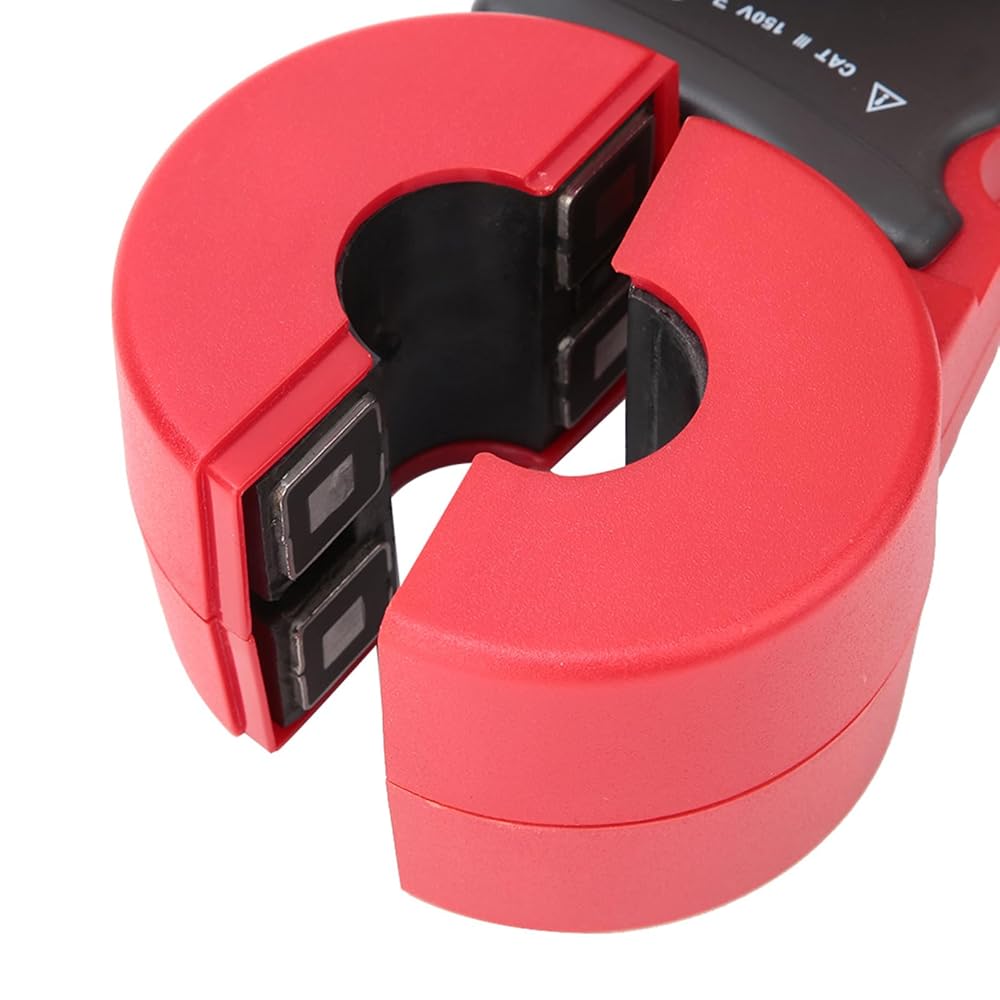

Clamp opening range: mm
Weight: Approx. 2271g / 80.1oz
Size: Approx.260 x 95 x 68mm/10.2 x 3.7 x 2.7in
Protection level: double insulation
Structural features: clamping CT
Shift: automatic shifting
External magnetic field:
External electric field:
Single measurement time: 0.5 seconds
Resistance measurement frequency: > 1KHz
Measuring current frequency: 50 / 60Hz automatic measurement
Low battery indicator: The battery low indicator is displayed when the battery voltage is lower than 5.3V
Memory full indication: MEM symbol flashes when all 99 memory is full
Overrange indication: Out of range indication OLΩ, L0.01 or OL A
Auto power off: 5 minutes after startup
Power consumption: 50mA at startup or normal operation, 30 hours of continuous operation

Package list:
1 x Clamp Resistance Meter (Battery not included)

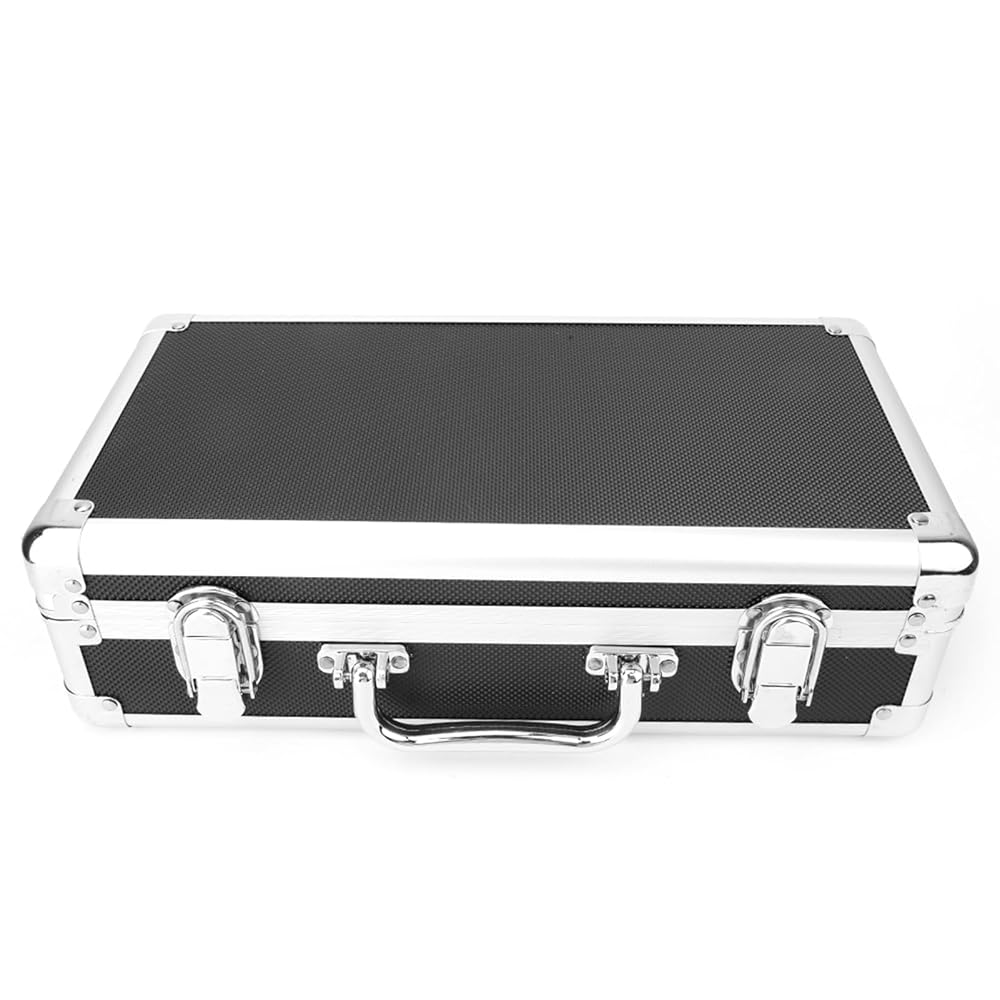

1 x Aluminum Box
1 x Instruction Manual

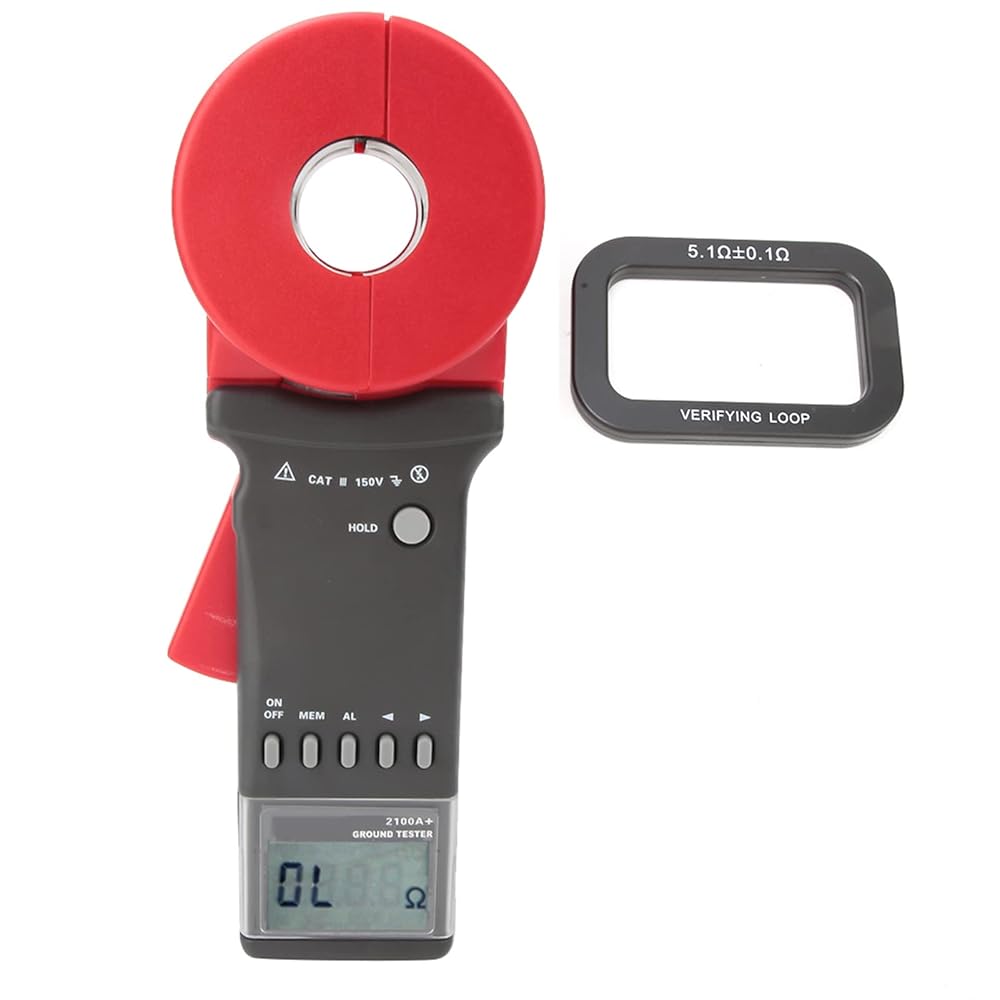

1 x Test Ring
