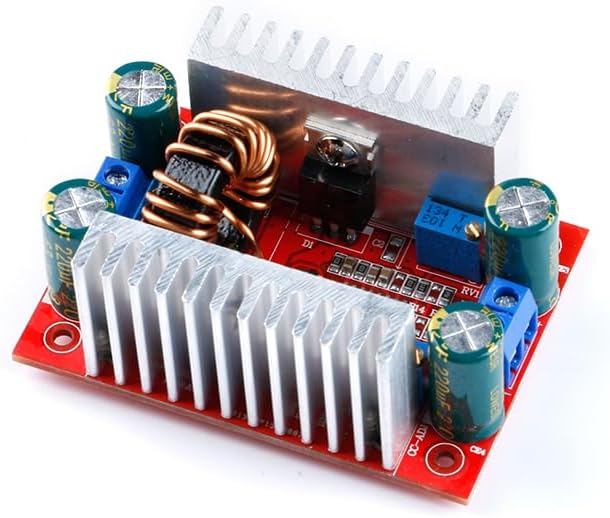

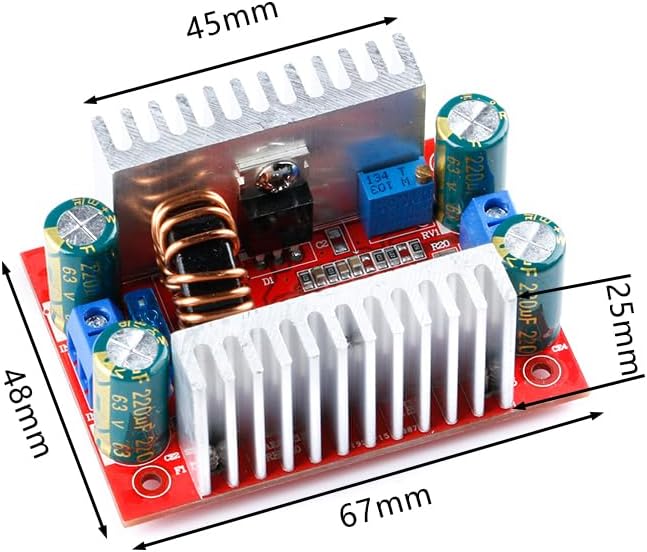

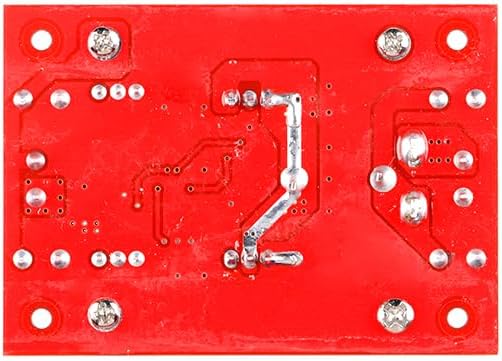

1. Product Parameters
Input Voltage: DC 8.5V–50V (±5%, 15A Max)
Output Voltage: 10–60V Continuously Adjustable (Default 19V)
Constant Current Range: 0.2–12A Programmable
Max Output Power: 400W (e.g., [email protected])
Efficiency: Up to 96% (@150kHz Switching)
Operating Temp.: -40°C to +85°C (Heatsink Required >8A)
Protections: Overcurrent (Auto-throttle), No Reverse Polarity

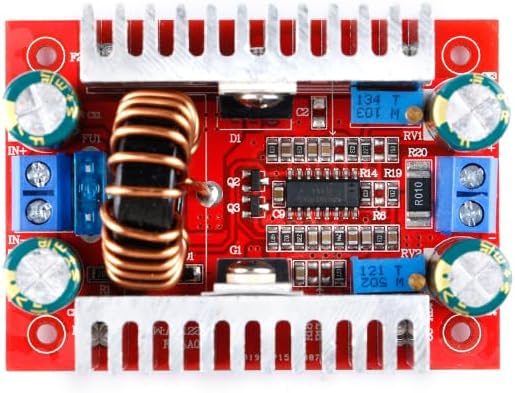

2. Key Terminal Functions
Power & Output
VIN+/VIN-: DC Input (Add diode for reverse protection)
OUT+/OUT-: Boosted Output (Max 1m wire to load)
Control Interface
CV-ADJ: Voltage Adjust (CCW↑ Voltage, CW↓ Voltage)
CC-ADJ: Current Adjust (CW↑ Current, CCW↓ Current)
⚠️ Critical Notes:

Min Input-Output Delta: ≥2V (e.g., 12V→min 14V output)
Heatsink Mandatory: >8A input or >60°C ambient

3. Common Issues & Solutions
Q1: Overheating at >180W output?

Fix: Mount 40×40mm aluminum heatsink + 12V cooling fan
Limit: Reduce current to 8A if temp >85°C
Q2: Cannot set constant current?

Error: Avoid short-circuit calibration! Use discharged battery/LED load
Fix: Rotate CC-ADJ30x CCW before setting target current
Q3: Output voltage drops unexpectedly?

Cause: Input >15A triggers overcurrent protection → Check for shorts or >12A load
Optimize: Use ≥40V input (e.g., 24V@10A=240W)
Q4: Relay buzzing/instability?

Solution:
Add 100μF capacitor at VIN+/-
Keep >10cm from motors/transformers
