Item Type:Power Meter Module
The main function
1, measurement function
C level ------ capacitance level (0.01pF~10uF)
L level ------Inductive level (0.001uH~100mH)
Hi.L level ---large inductance level (0.001mH~100H)
Hi.C level ---large capacitance level (1uF~100mF)
2, clear correction function
Capacitor mode ----- Open circuit correction;
Inductance mode ----- Short circuit correction.
3, display mode
Direct reading ---- Direct reading display.
Project Parameter
Capacitance Measurement (C Level) Accuracy 1pF~luF 0.01
1uF~10uF 0.05
Resolution 0.01pF
Inductance Measurement 1 Level) Accuracy 1uH~100mH 0.01
Resolution 0.001uH
Large Inductance Measurement (Hi.1 Level) Accuracy 100mH~1H 0.01
1H~100H 0.05
Resolution 0.001mH
Large Capacitance Measurement (Hic Level) Accuracy u~100mf 0.05
Resolution 0.01uF
Test Frequency L Level,C Level 500kHz
Hi. C Level 500HZ~50KHz
Inductance, capacitance and large inductance measurement LC resonance
Large capacitance measurement method Charge and discharge

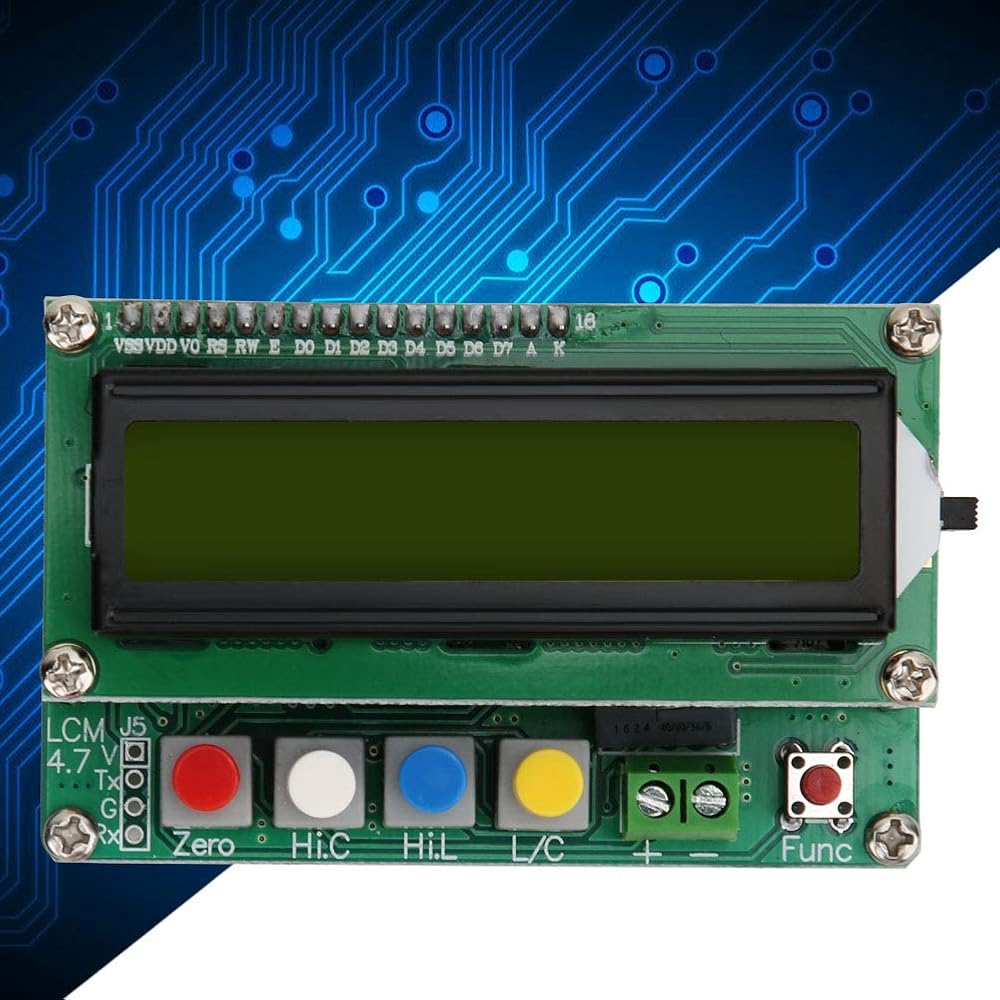

Display method 1602 LCD screen
Effective display digit 4

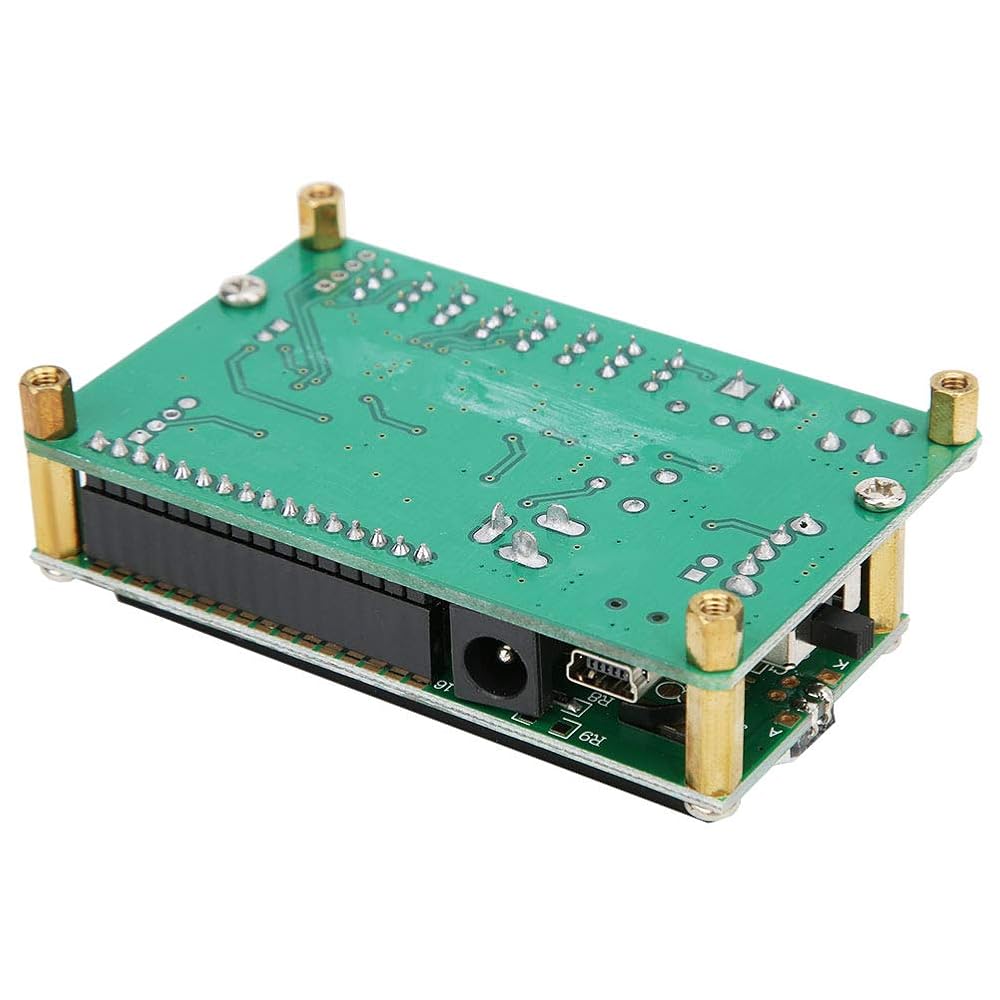

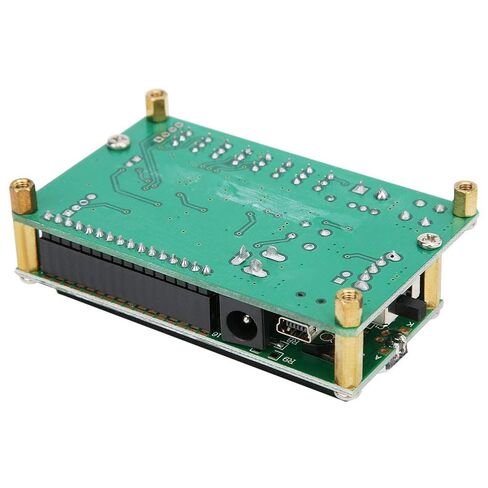

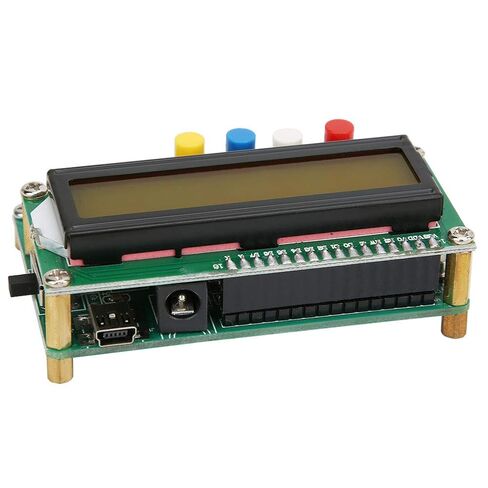

Power supply interface MiniUSB and 5.5DC socket
Supply voltage 5V

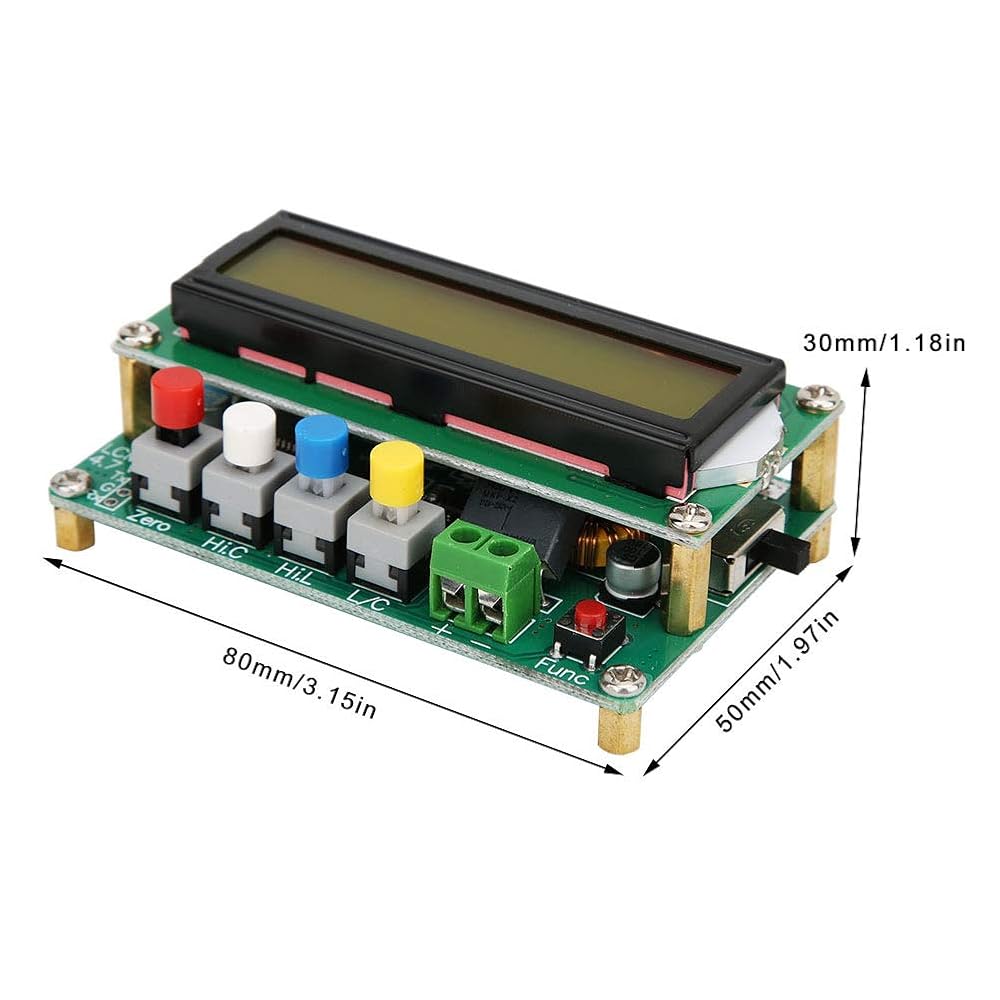

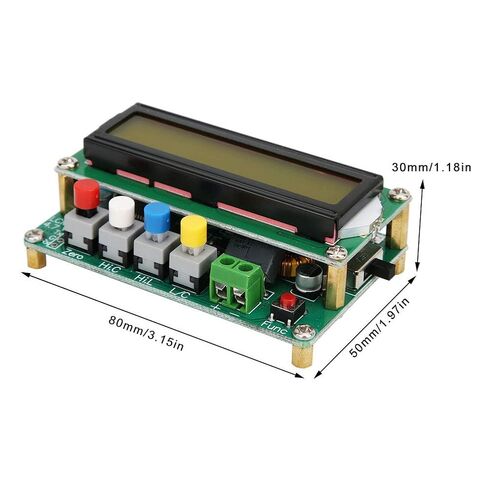

Product Size 80 x 50 x 30mm / 3.15 x 1.97 x 1.18in
Product weight 80g (Main Unit) + 28g (MiniUSB cable)

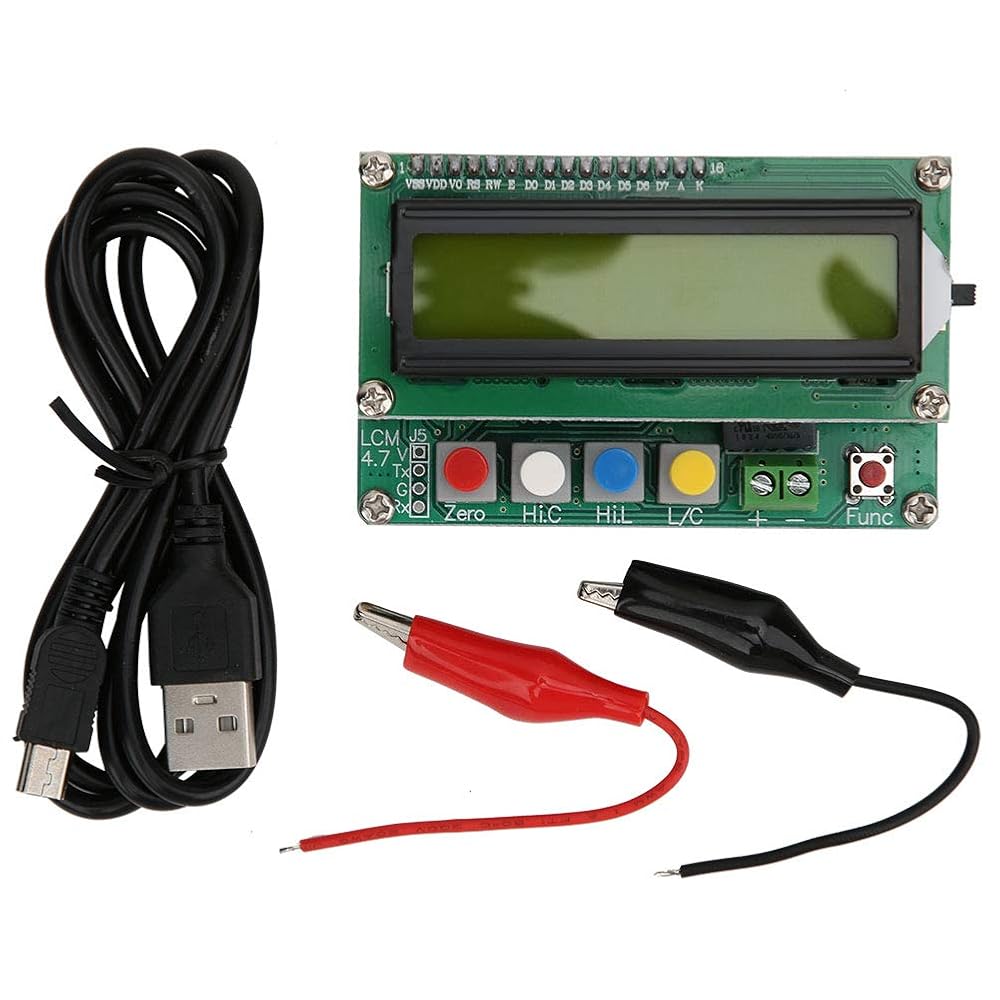

Package List:
1 x Meter

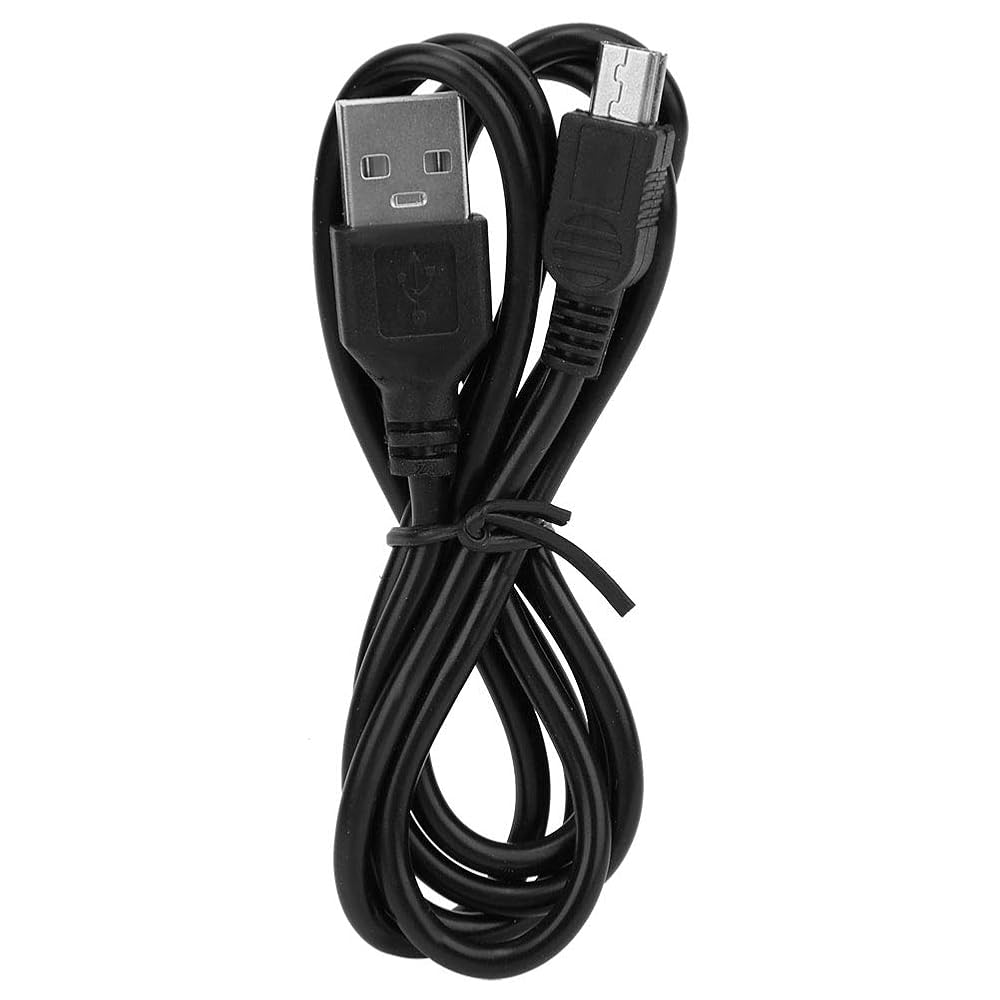

1 x Data Cable
1 x Red Crocodile Clamp
1 x Black Crocodile Clamp
