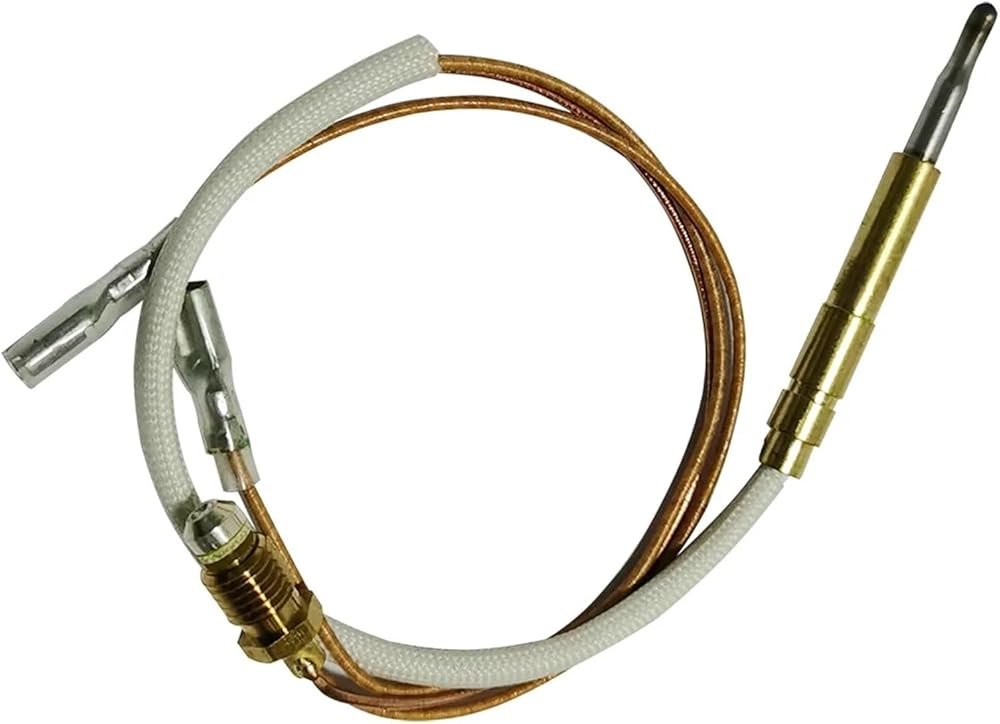

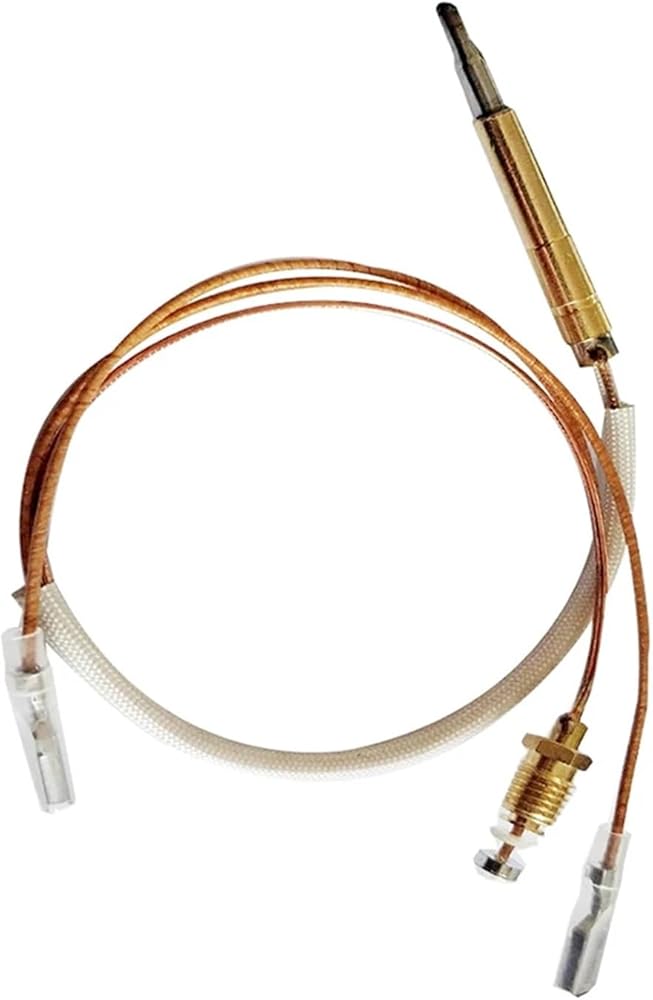

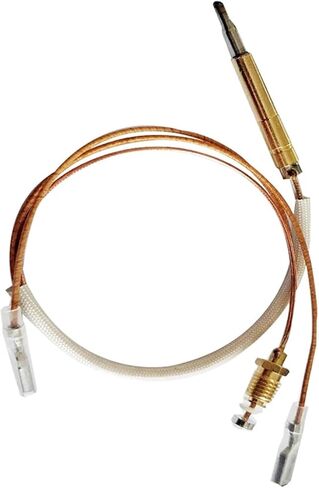

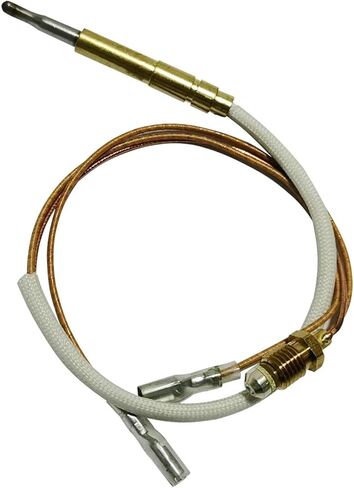

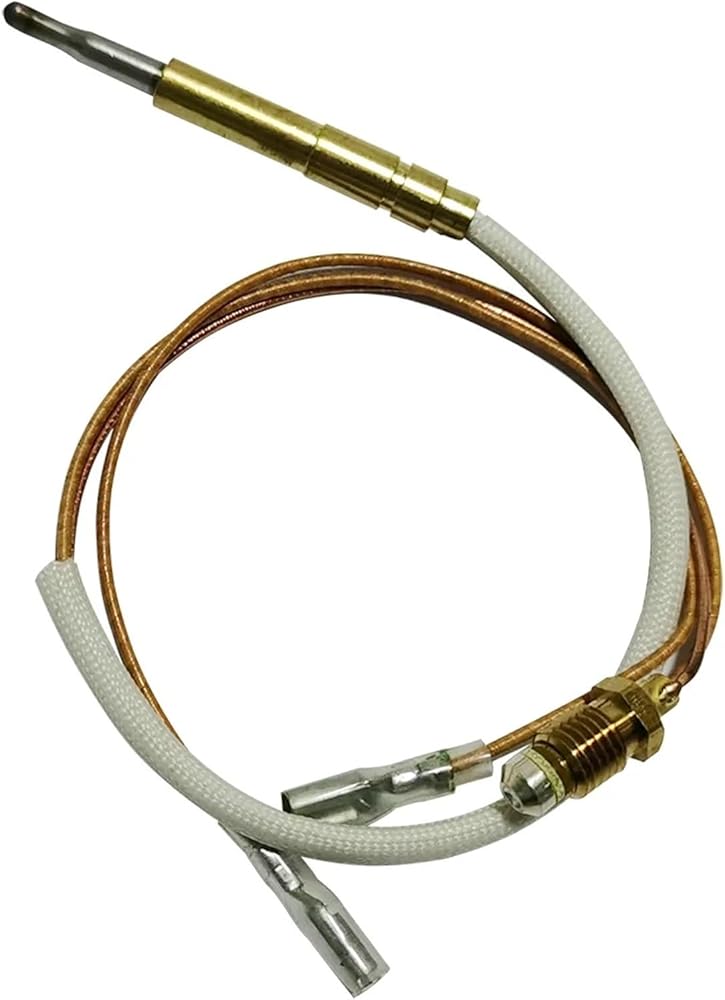

Outdoor Umbrella Heater / Patio Heater Replacement Flameout Protection Device Thermocouple Wire Sensor (Dump Switch Connections)
Product description:
End Nuts for gas valve 8mm, Two Flat square terminals width 4.8 mm for tilt switch
Extend total length 350mm for patio heater
Thermocouple head is common groove type fixed by clips
High temperature resistance protection sleeve
Terminal connect anti-down switch
Operation Instructions :
1). install the thermocouple tip on a board and use two nuts to fix it's location
2). Keep the tip at around 5mm distance from the burner hole in right height.
3). the thermocouple nut M8 on the valve end tightly (Check if your valve end thread if 8mm before you buy)
4). Connect two flat terminals well with the current tilt switch terminals.
5). Open gas and push your valve around 5-10s till the thermocouple head is heated enough.
6). Release your hand and it work properly
If when you release hand, gas valve shut off again, Please check
a. If your thermocouple is always be heated on flame
b. If the thermocouple end is well connect with valve
c. If the terminals connect tilt switch well.
==========
High-concerned chemical : None
Material : Metal
Metal Type : Red Copper
Model Number : AI-RDO001A

Type : Cookware Parts
Outdoor Umbrella Heater Thermocouple : Patio Heater Replacement
Flameout Protection Device : Thermocouple Wire Sensor
