Needle-Bearing
Specification:

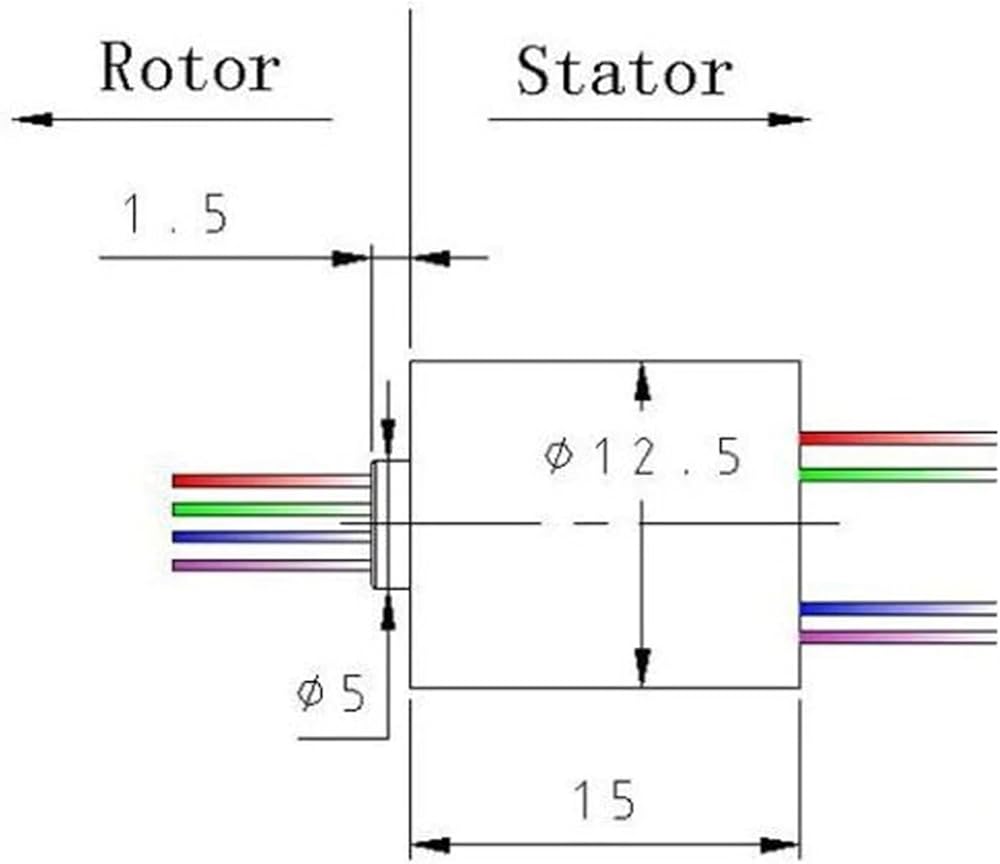

Diameter: 12.5 mm
- Speed: Maximum 200rpm
Number of channels: 4 channels
Rated voltage: 220VAC/DC
- Rated current: 2A/channel
Operating temperature: -20~+60
- Contact material: Gold/Gold
- Cable length: standard 200mm
- Withstand voltage: 500V 50Hz between two channels
- Insulation resistance: 500M / 500VDC
- Dynamic resistance fluctuation value: minimum 10m
Shell material: metal
- Working life: 5 million rpm (depending on working environment and speed)
