1. The rotating torsion sensor can display the current measured torsion value and speed value in real time, and can directly calculate the current power value.
2. Support RS485 communication, and support active upload protocol, communication rate up to 500 times per second.
3. Using strain electrical measurement technology, the electrical signal of the elastic shaft torsion can be measured by supplying power to the strain bridge.
4. Can perform simple calibration, zero adjustment, filtering and other operations, allowing 200% overload.
5. The rotating torsion sensor has an accuracy of more than 1/1000 and has excellent zero position stability.
6. Widely used in the detection of torsion, speed and power of motors, generators, reducers, and engines.

Specification:

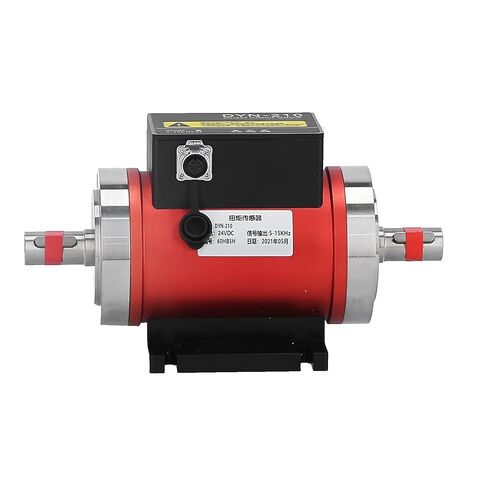

Item Type: Rotating Torsion Sensor
Material: Stainless steel
Model: -210
Speed Range: ≤15000rpm
Speed Signal: 120/60/10pulse/r, 4-20mA, 0-20mA, 0-5V, 0-10V
Torsion Signal: 5-15KHz
Zero Output: ±2%F.S.
Non Linearity: 0.1%F.S.
Hysteresis: 0.5%F.S.
Repeatability: 0.2%F.S.
Creep (30 Minutes): 0.03%F.S.
Temperature Sensitivity Drift: 0.01%F.S./10℃
Zero Temperature Drift: 0.01%F.S./10℃
Response Time: 0.6ms (50% response)
Response Frequency: 1kHz
Maximum Torsion Angle: 2.60 x 10rad (0.149°)
Moment of Inertia: 0.38kg/cm
Rotor Vibration Natural Frequency: 19.4kHz
Torsion Constant: 3.85 x 10Nm/rad
Annual Stability: 0.3%/year
Load Resistance: >2kΩ
Working Voltage: DC24V 0.2A
Current Consumption: Working Environment: -10-50℃ 0-85%RH
Safe Overload: 200%
Cable Tension: 10kg

Package List:
1 x Rotating Torsion Sensor
1 x Chinese English User Manual

Notice:
1. Strictly forbidden to disassemble or knock accurate instruments.
2. When turning on the power, make sure that other signal wires are not short circuited.
3. When the no load torsion value of the installation test is large, adjust the coaxiality of the tooling.
4. To ensure stability, the sensor housing and shielding wire must be grounded.
5.The factory test parameters shall prevail.
