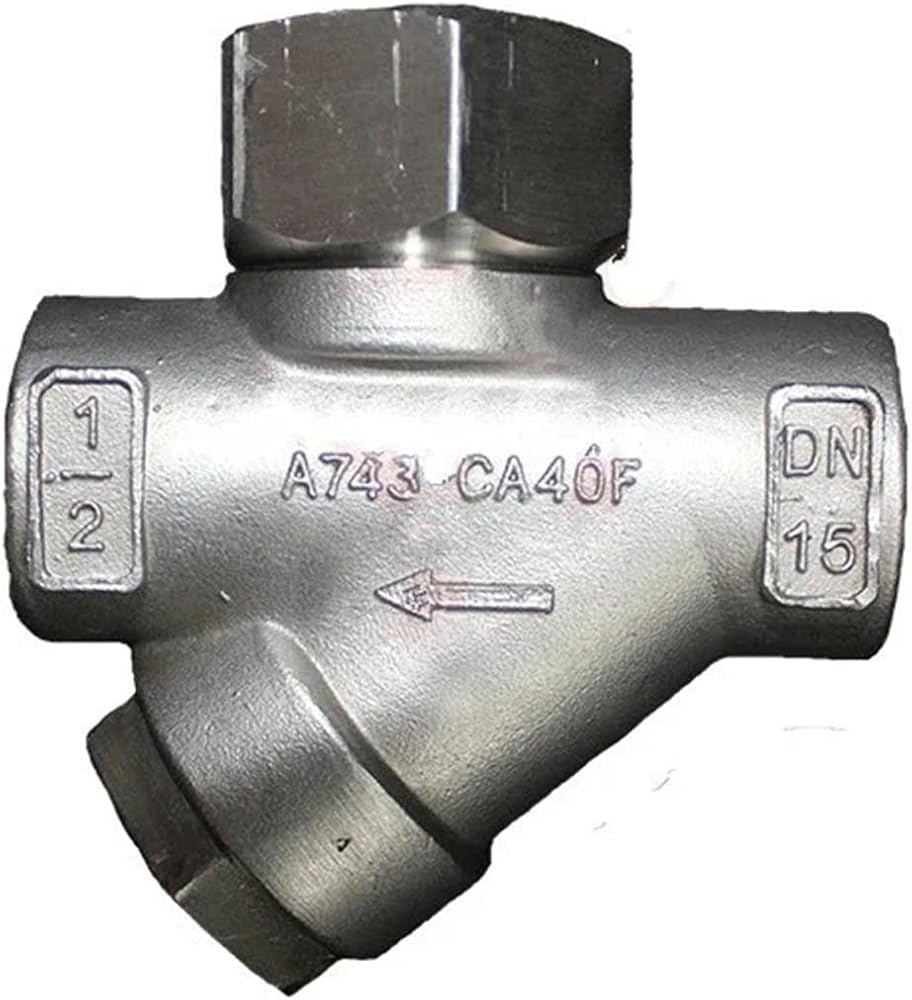

CS19W thermodynamic type (disc type) meter steam trap structure features:
1, with steam or air insulation device, not affected by the ambient temperature, reduce the operating frequency, extend life.
2, equipped with filter and drain valve.
3, the valve is sensitive and reliable operation, large displacement.
CS19W thermal power (disc type) instrument trap works:
The steam trap utilizes thermodynamic characteristics. Secondary evaporation occurs when the condensate drains to a lower pressure zone, and there is a difference in viscosity, density, etc. with the steam to drive the opening and closing parts.
CS19W Thermodynamic Type (Disc) Instrument Trap Main Applications:
This valve is suitable for steam pipelines and steam equipments, and it can prevent steam leakage and eliminate condensate, thus preventing water hammer phenomenon and its possible failure.
CS19W Thermodynamic Type (Disc) Instrument Traps Features:
1. Simple structure, easy installation, maintenance and maintenance.
3, suitable for steam mains, steam measuring instruments, steam irons and high pressure and high temperature pipelines.
==========
Actuator Mode : Without Manual And Instruction
Structure : Other
Media : Water
Material : Stainless Steel
Temperature of Media : Medium Temperature
Power : Manual
Standard or Nonstandard : Standard
Pressure : Medium Pressure
Model Number : h8
Port Size : DN15 DN20 DN25
