PZEM-015: Measuring Range 500A (use external shunt, can matched with 500A 1 kinds of shunt).
This meter is mainly used to test all kinds of voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, dump energy, energy consumption and running time, and display the measurement data through LCD screen.
Package
1 * Monitor Meter
1 * DC 500A Shunt (or other shunt you brought)
6 * Wire
1 * Instruction manual
About this item

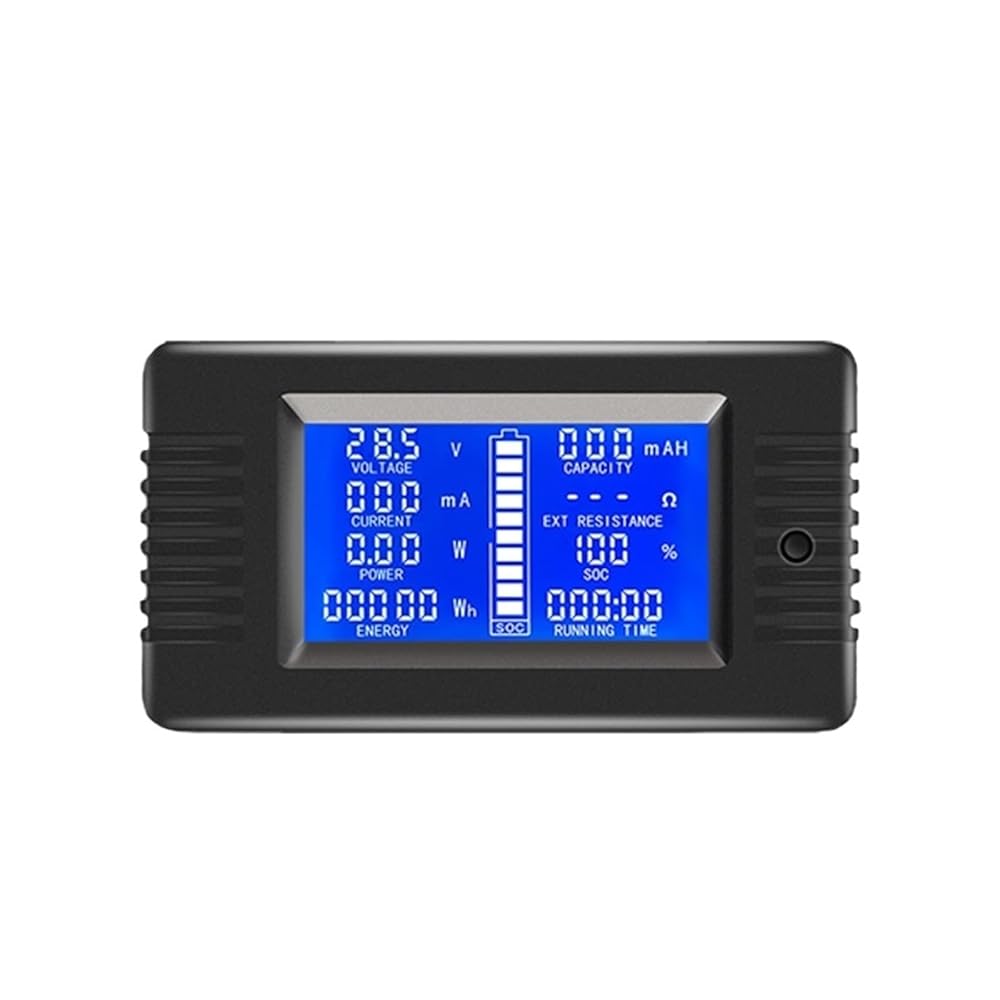

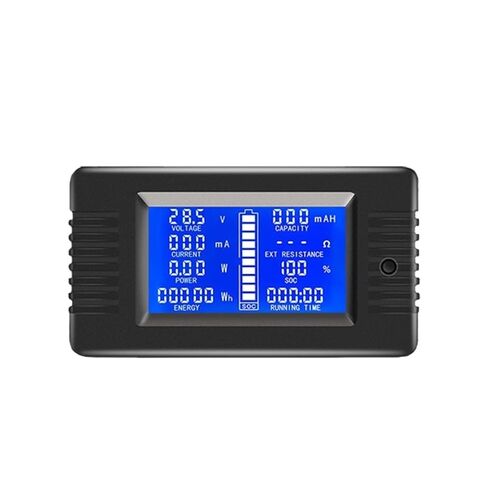

9 in 1 Measurement Functions : One interface displays 9 kinds of measurement parameters at the same time, including Voltage(0-200V), Current(0-500A can set from menu), Power(0-20000W), Impedance( 0-1000), Internal Resistance(0-999m), Capacity(0-1000AH), SOC, Energy Consumption(0-9999kWh) and Running Time(0-999h)
Better Visual Experience : LCD HD display, 360° viewing without dead angle, with backlight function, it is clearly visible whatever day or night
No Screw Installation : With the installation design of the push-on terminal, it is easy and convenient to install and remove the wires without the screws
Accurate Measurement : High precision control, efficient and stable operation, safe and reliable welding process, measurement accuracy reaches 1%
Wide Application : Wildly used in the automobile, solar system, industrial assembly line, etc.
Product description
Size:With 500A Shunt
Voltage
Measure range: 0-200V
Min.Resolution: 0.01V
Start test voltage: 0.05V
Accuracy: 1%
Current
Measure range: 0-500A.
Min.Resolution: 1mA
Start test current: 20mA
Accuracy: 1%
Power
Measure range: 0-60000W
Min.Resolution: 0.01W
Start test power: 0.2W
Accuracy: 1%
Impedance: Impedance=voltage/current
Measure range: 0-1000
When over the range or current is 0 displayed "---".
Min.Resolution: 0.1
Accuracy: 1%
Running time
Range: 0-999 hr(no load no time)
Display: 0:00:00-999:59
Operating Temperature : -40°C ~+60°C
Supply Voltage : DC
Display Type : Digital Only
DIY Supplies : Electrical
Origin : Mainland China
