10Pcs AMS1117-3.3 3.3V LDO Linear Regulator 800mA Power Module in-Line 3-Pin in Saudi Arabia 10Pcs AMS1117-3.3 3.3V LDO Linear Regulator 800mA Power Module in-Line 3-Pin in Saudi Arabia 10Pcs AMS1117-3.3 3.3V LDO Linear Regulator 800mA Power Module in-Line 3-Pin in Saudi Arabia 10Pcs AMS1117-3.3 3.3V LDO Linear Regulator 800mA Power Module in-Line 3-Pin in Saudi Arabia

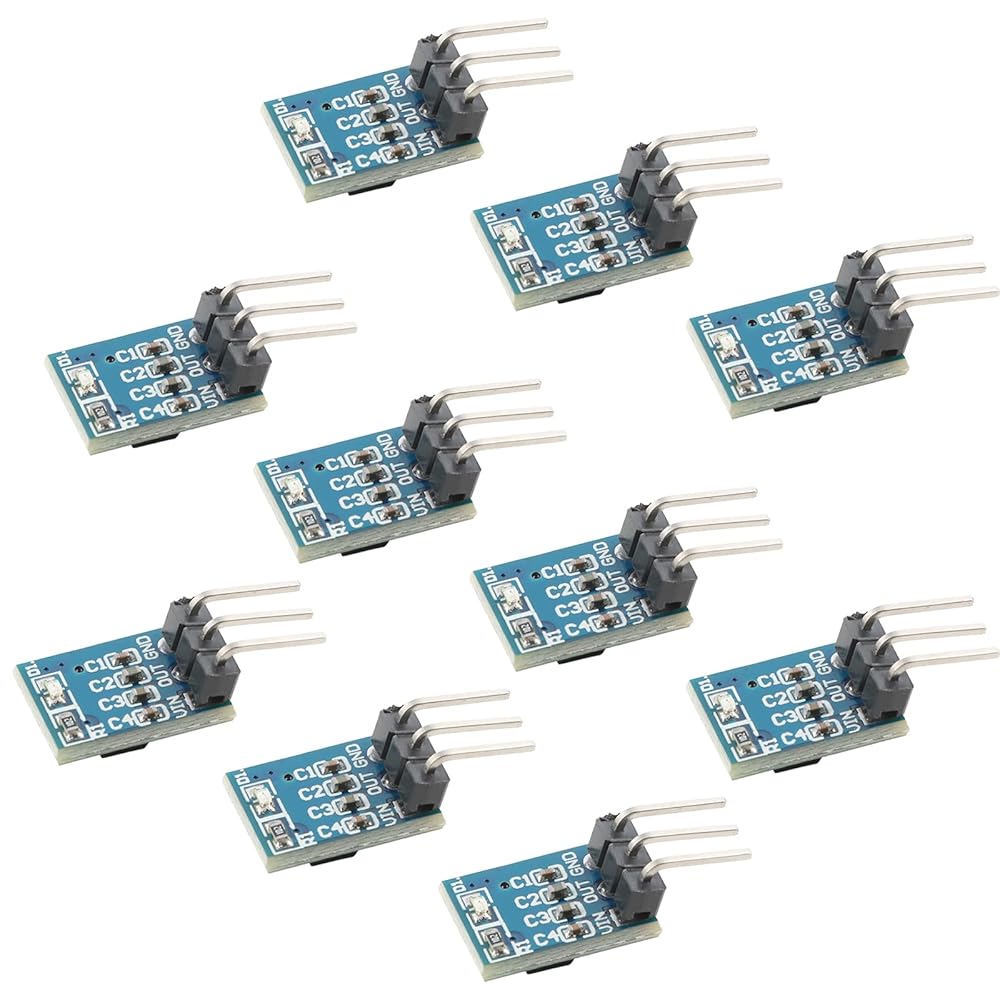

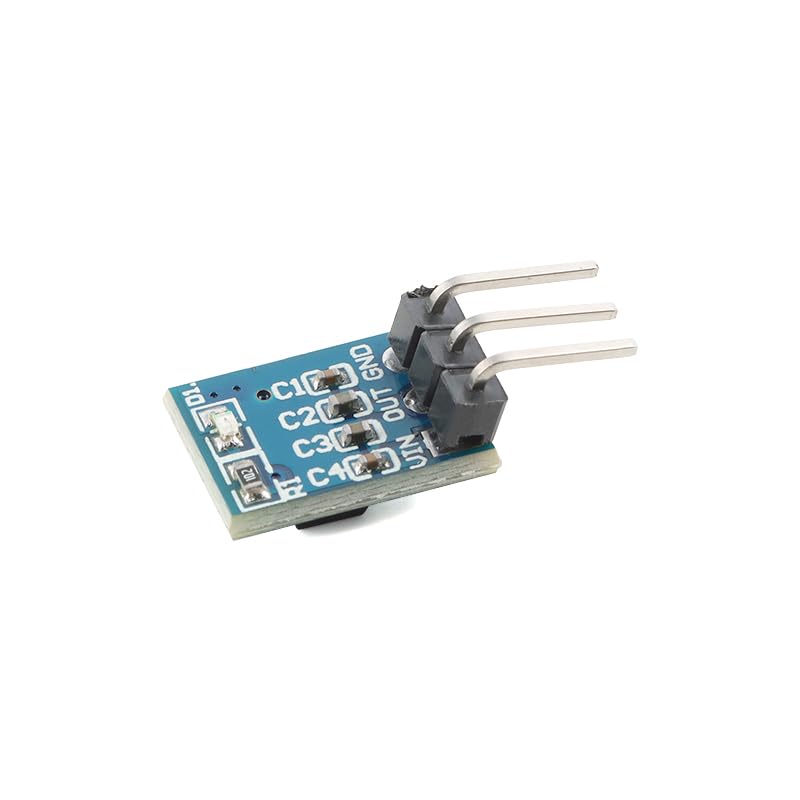

10Pcs AMS1117-3.3 3.3V LDO Linear Regulator 800mA Power Module in-Line 3-Pin

SAR 53
– 1 +

Special Features

  • 【Wide Voltage Compatibility for Industrial Applications】 This AMS1117-3.3 LDO voltage regulator supports a wide input voltage range of 4.5V to 36V DC, making it Suitable for Reliable power supplies and s with fluctuating voltages. Its robust design ensures stable performance even under challenging electrical conditions, providing reliable power to precision components like MCUs and sensors.
  • 【High Accuracy and Stability for Critical Systems】 With an output voltage accuracy of ±2% across the full temperature range (-40°C to +125°C), this TO-252-3 module delivers precise and consistent power delivery. The low dropout voltage (≤1.2V at 800mA) and excellent ripple rejection (75dB @ 120Hz) ensure clean, stable power for sensitive electronics, enhancing system reliability and performance.
  • 【Built-in Protection for Enhanced Safety and Longevity】 Equipped with overcurrent protection, thermal shutdown, and reverse current blocking, this Reliable LDO voltage regulator safeguards your devices from damage. No external components are required, simplifying your design while ensuring long-term durability in demanding applications.
  • 【Efficient Heat Dissipation for Reliable Operation】 Designed with a metal heat sink and optimized thermal management, this AMS1117-3.3 module maintains stable performance even under high load conditions. It supports continuous output current up to 800mA and peak current up to 1A, with proper heat dissipation solutions recommended for high-voltage drop scenarios.
  • 【Versatile Use in Industrial and Embedded Systems】 Suitable for industrial control systems, on-board electronics, and battery-powered instruments, this LDO voltage regulator solves power stability issues in noisy s. Its compact TO-252-3 package and wide voltage compatibility make it a versatile choice for a variety of embedded and industrial applications.

Description

the product parameters
input voltage range: 4.5V-36V DC (wide voltage compatible, support Reliable power supply fluctuations)
output voltage of: 3.3V ± 2% (full temperature range accuracy)
output current of: continuous 800mA (peak 1A, required to meet heat dissipation conditions)
dropout voltage: ≤ 1.2V (typical, when the output current is 800mA)
linear adjustment rate of: 0.2% (output stability when input voltage changes)
load regulation rate of: 0.4% (when load current varies from 0-800mA)
working temperature of: -40 ℃ ~ +125 ℃(industrial grade)
ripple rejection ratio of: 75dB @ 120Hz (efficient filtering of input noise)

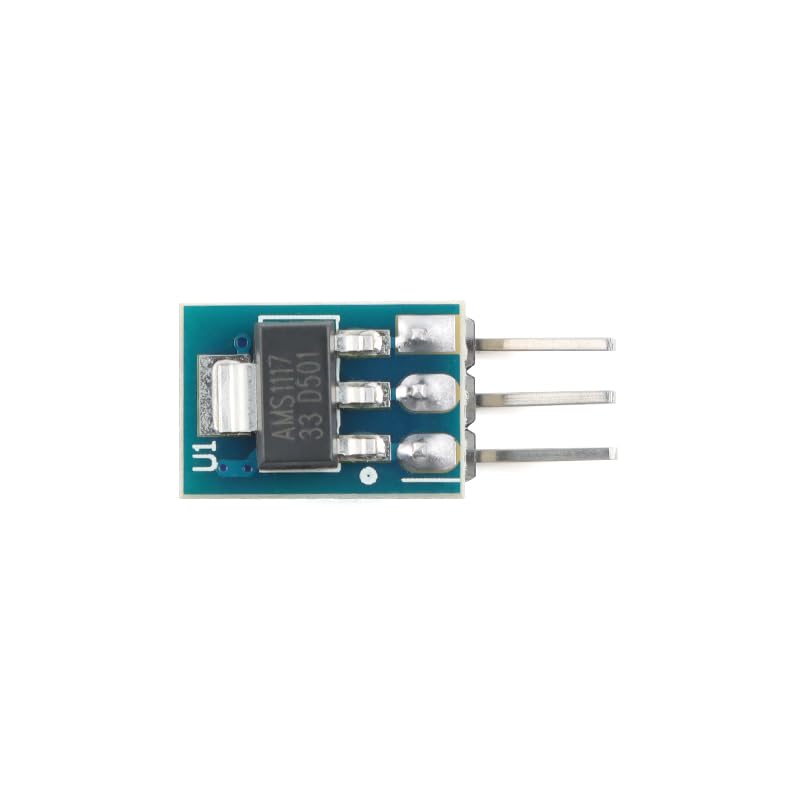

package form: TO-252-3 (in-line 3-pin) with metal heat sink

product main function introduction
The AMS1117-3.3 module uses-voltage low-dropout (LDO) voltage stabilization technology to the, converts the wide-voltage input (4.5V-36V) into a stable 3.3V output, and supplies power to precision components such as MCU and sensors. Built-in overcurrent protection, thermal shutdown and reverse current blocking function, no external components can work. Suitable for industrial control systems, on-board electronic equipment, battery-powered instruments and other scenarios, to solve the problem of voltage stability in high-noise power , significantly improve system reliability.

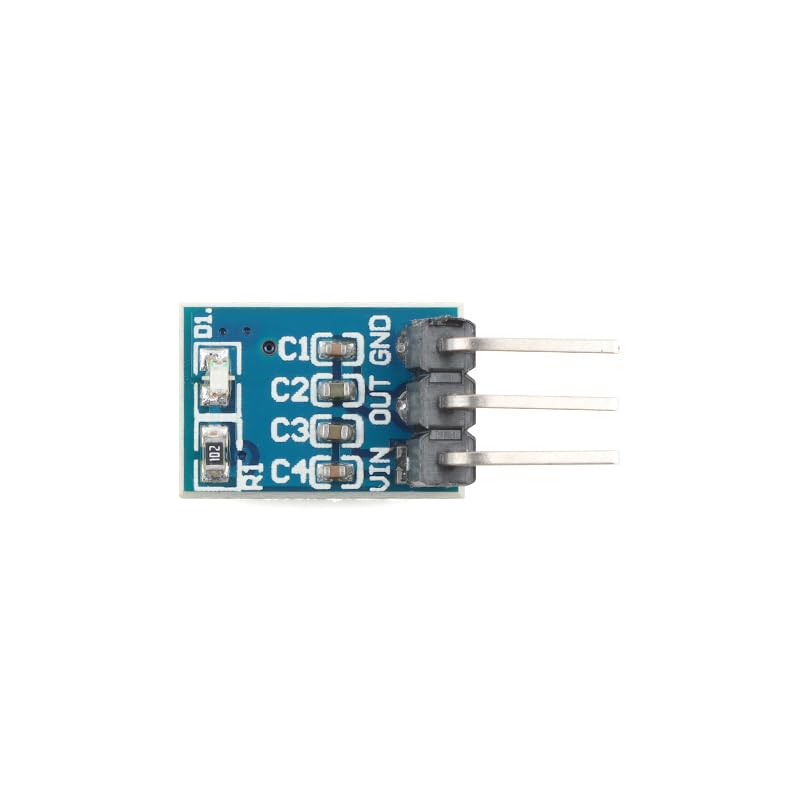

Main pin functions of products
IN + : DC input positive (4.5V-36V DC)
GND: power grounding is (must be connected to the load common ground with low impedance);
OUT: regulated output positive (3.3V ± 2%, connected to the load power supply terminal).
