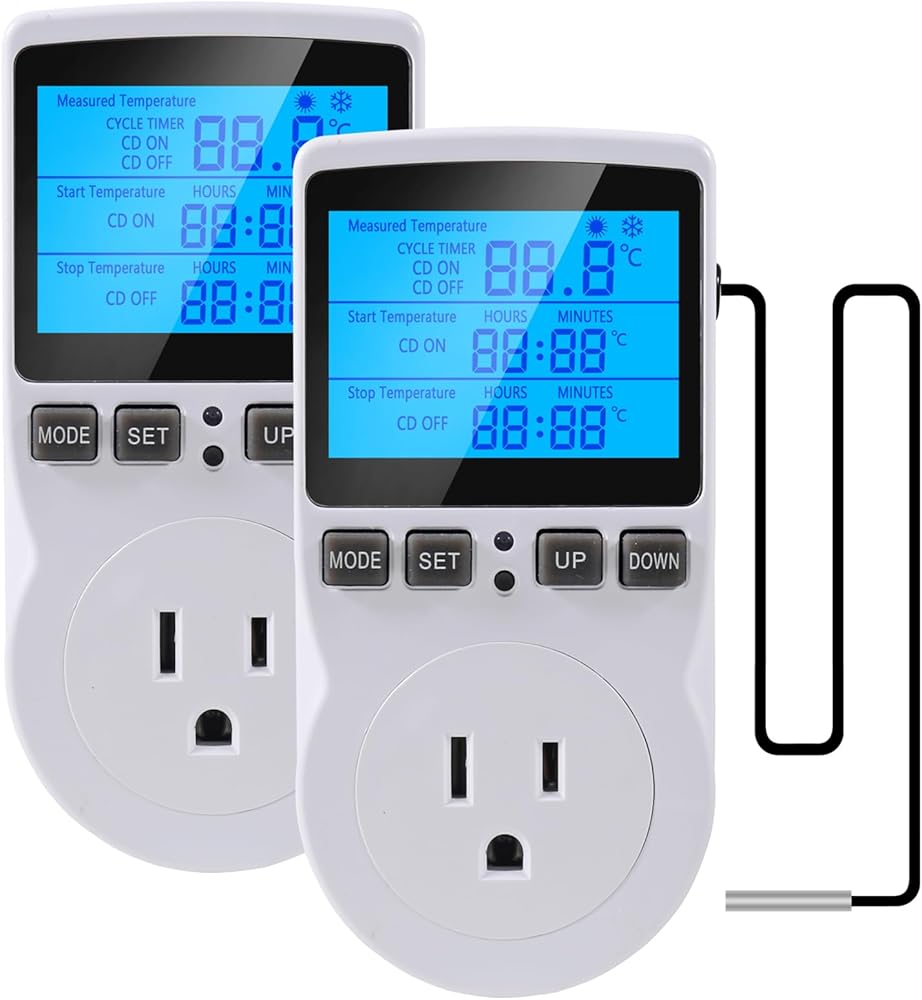

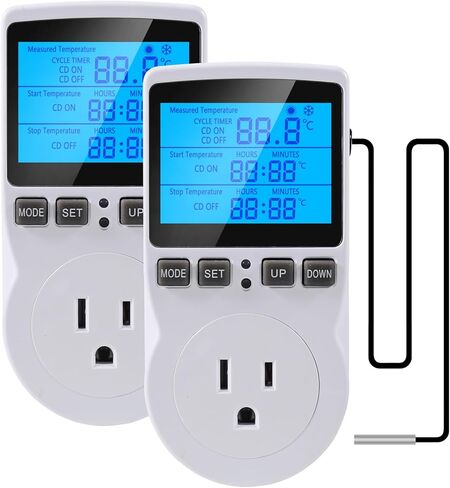

Digital Temperature Controller:Thermostat outlet: Temperature control range: -40℃~120℃/-40℉~248℉.;plug in thermostat function with ±1% accuracy. Set the start and stop temperature to make the heater or cooler operate as programmed.
Temperature control accuracy: ± 1%AC 50/60 Hz. Output: Maximum 15A/120V/1800W. Start temperature > stop temperature, cooling operation begins; Start temperature < stop temperature, heating operation begins.
Reptile Thermostat Applications: Temperature Controller Plug is suitable for greenhouse, reptile, incubator, terrarium, freezer, refrigerator, heater, fridge, homebrew, vivarium, fermentation, heat mat, and other temperature-controlled system
Multi-function: F01 cycle timer mode; F02 countdown on mode, F03 countdown off mode, F04 countdown on mode and countdown off mode. Setting range: 0 to 99 hours 59 minutes. With data storage function, after power off can save all the parameters set.
HD LED display with backlight:Plug and play design, LCD display with wide viewing angle and backlight for easy temperature reading in poor visibility conditions and at different viewing angles,The thermostatic outlet can be displayed in degrees Celsius or Fahrenheit with a 1.7m NTC temperature sensor.
Description
Features:
Heating/cooling mode
LCD display with wide viewing angle and backlight
5 Modes: Temperature Control Mode, F01-Cycle Timer Mode, F02-Countdown ON Mode, F03-Countdown OFF Mode, F04-Countdown ON and OFF Mode
Temperature calibration
Memory function: all current settings will be saved after power off.
Reset
Specification:
Power Supply: AC 100~250V
Temperature control range: -40~248℉ (-40℃~120℃)
Control accuracy: ±1%
Sensor: 3m NTC10K/B3950 temperature sensor
Output: Max 15A/120V (The relay is max 15A. Please use resistance load less than 15A, inductive load less than 2A.)
Timing accuracy: MAX 10minutes
