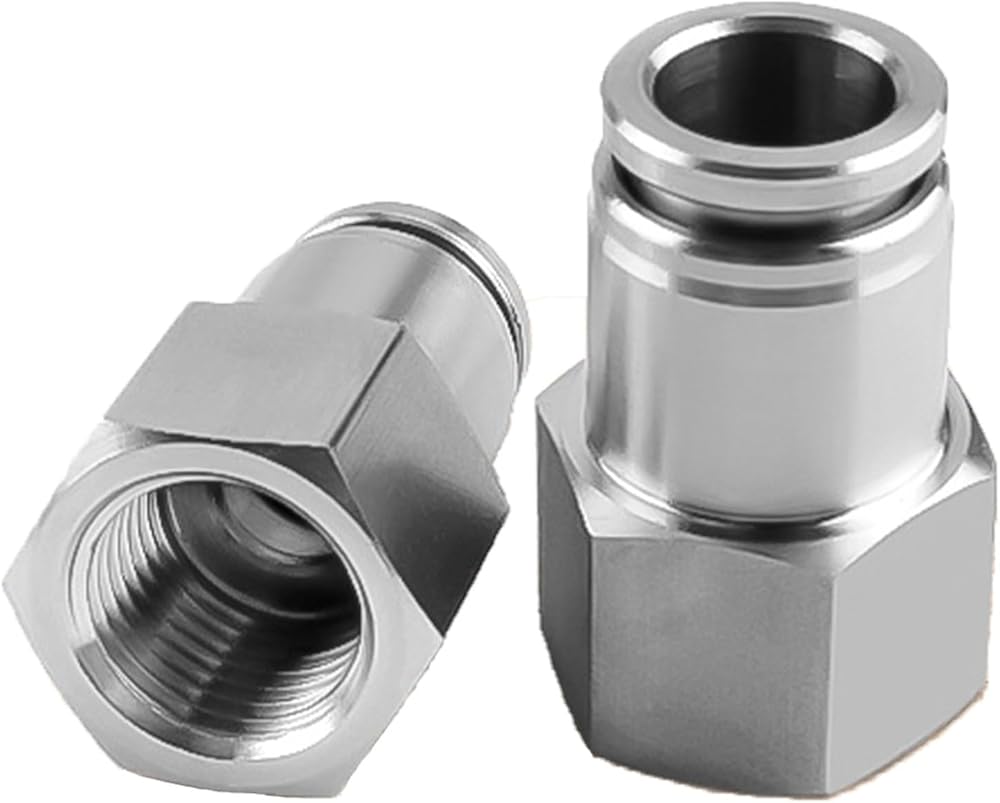

Quick-Connect-to-Threaded Fittings
1/8" Standard Pipe Thread (DN6) internal thread outer diameter9.5mm
1/4" Standard Pipe Thread (DN8) internal thread outer diameter 12.5mm
3/8" Standard Pipe Thread (DN10) internal thread outer diameter 16mm
1/2" Standard Pipe Thread (DN15) internal thread outer diameter 20mm
specification:
External thread size: 1/8", 1/4", 3/8", 1/2" Standard Pipe Thread
External thread diameter: 9.5mm, 12mm, 16mm, 20mm
Pipe outer diameter: 4mm, 6mm, 8mm, 10mm, 12mm hose outer diameter
Working pressure: 0~10.2kgf/cm2 (0~1.0Mpa)
Negative pressure: -750mmhg (10 Torr)
Operating temperature range: 0~60C
Suitable for pipes: PU/nylon, polyurethane
Quick joint material: 304 stainless steel
Content: Connector
