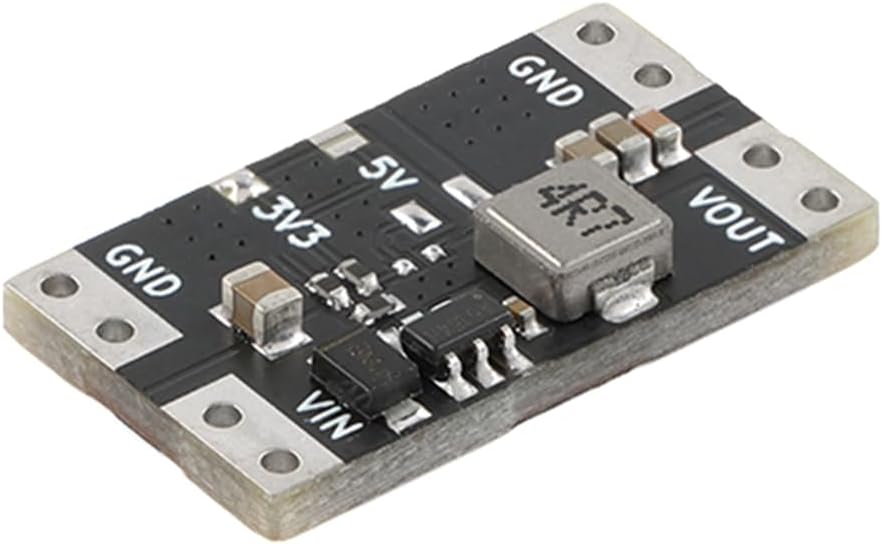

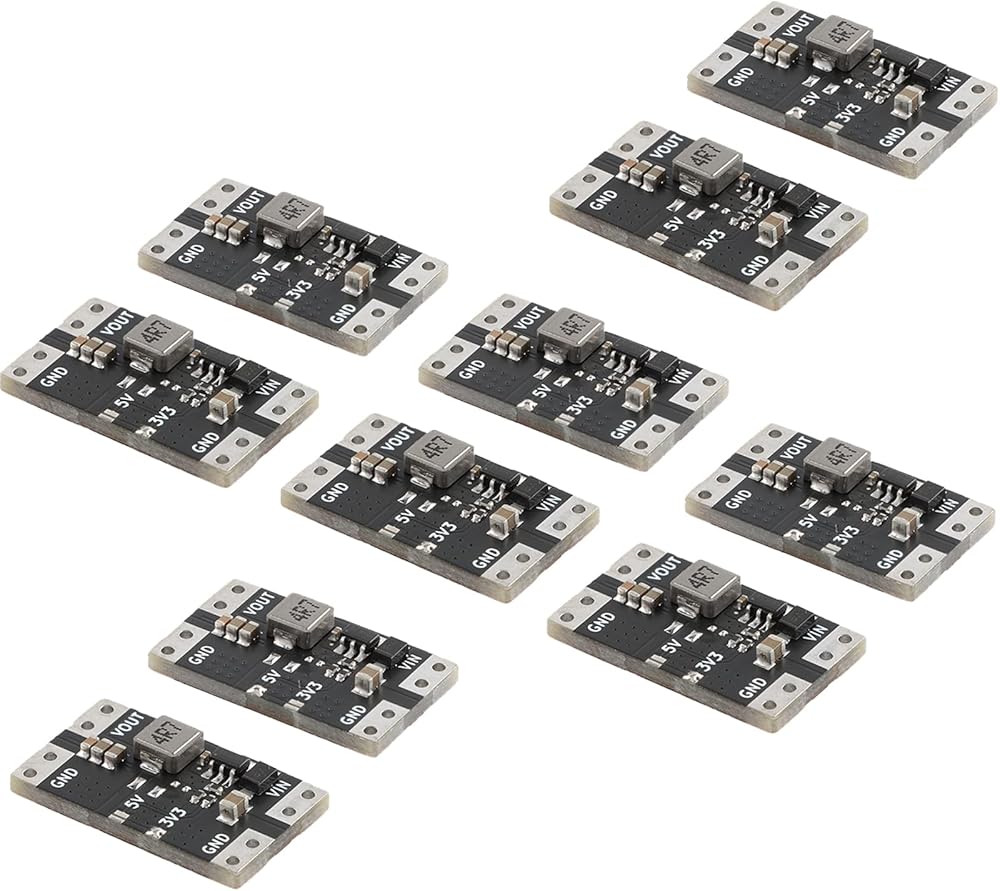

Product introduction
This module adopts 2A current synchronous rectifier buck program, high efficiency,
low output ripple, stable performance, switching frequency of about 600KHZ,
the output current can be output for a short period of time 2A,
12V input without heat dissipation can be long run 5V 1.5A output,
MAX current can be done well heat dissipation can also be provided with
3.3V and 5V output version. Need 1-5V voltage output can contact our company to customize,
the board contains a reserved voltage setting pad can also be modified,
very suitable for a variety of 12V input but the demand for 3.3V 5V operating voltage system,
MAX 2A current in the 1.5A or less long run is enough to adapt to the jue most of the 3.3V and 5V operating equipment.
Parameter Introduction
Module type: BUCK step-down power supply
Input voltage: DC 4.5-16V (input voltage needs to be higher than output voltage by more than 1V)
Output current: 3 [email protected] (12V input without additional heat dissipation for long-distance running current)
Output voltage: DC 3.3V
Switching frequency: approximately 600KHZ
Adjustment method: Jumper pad selection, 3.3V

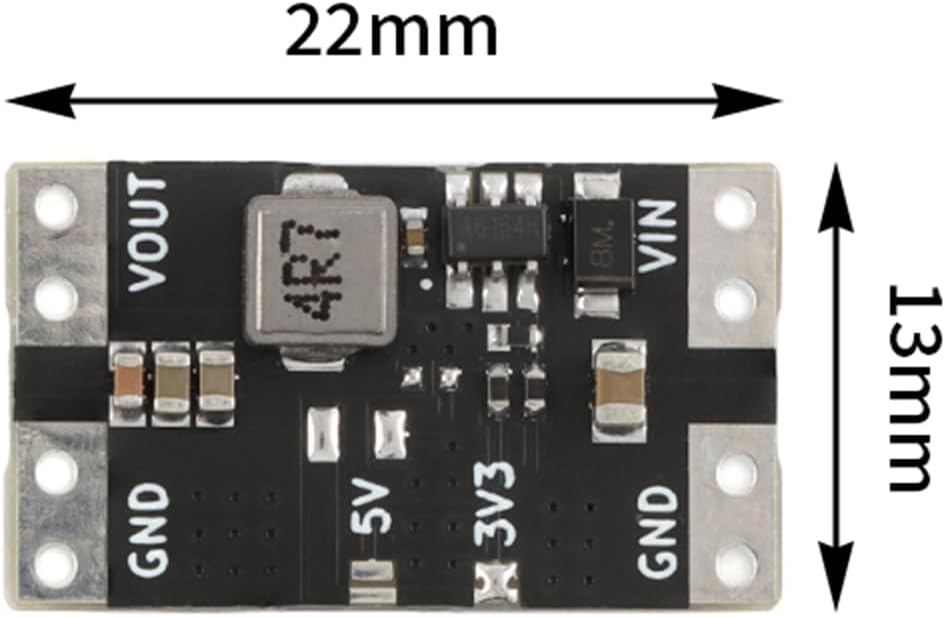

Module interface: Large area solder pads (can also be connected to 2 54mm needle arrangement)

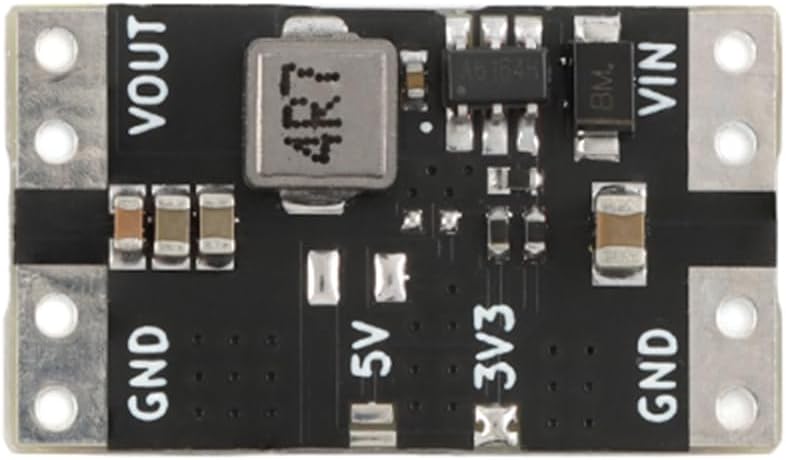

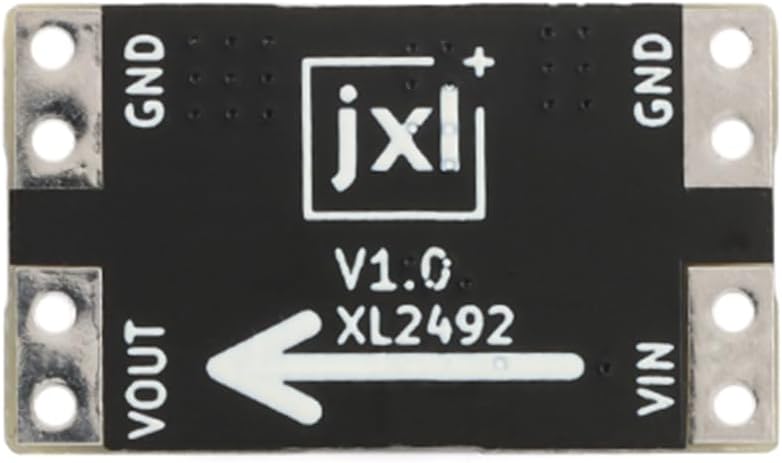

Pin Name Pin Function：
VIN: power input positive, 4.5-16V (input needs to be higher than the output voltage of more than 1V)
GND: input and output negative, common
VOUT: power output, 3.3/5V
Voltage jumper pads: short to enable the corresponding voltage,
prohibit simultaneous disconnection or short to more than one at the same time.
