1. Not easy to wear, performance. This gear is a good industrial alternative accessory.
2. Widely used in conveying, hardware, agricultural equipment, printing machinery, mechanical transmission and so on.
3. The contact between the gears is firm to ensure the normal operation of the machine and good carrying capacity.
Specification:

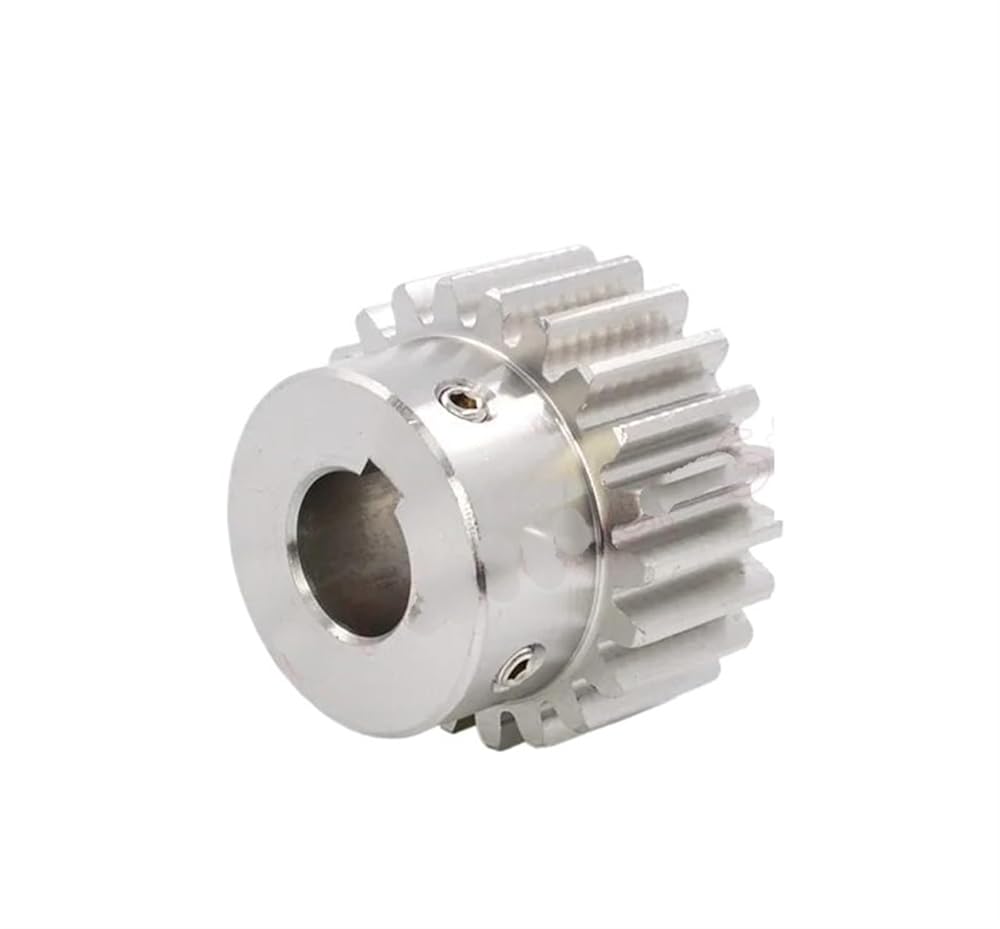

Name: Spur Gear with Step
Model: 1.5M (1.5 Module)
Material: 304 Stainless Steel
Surface Treatment: Untreated
Pitch: 4.71mm
Number of Teeth: 20 Teeth
Tooth Height: 15mm
Total Height: 29mm
Fixing Screw: 2*M5
Round Bore: 6/8/10/12mm
Shaft Hole: Machining Completed
Tooth Surface Hardness: Hard Tooth Surface
Note:
1. The contour data described above (in addition to ensuring the accuracy of the inner hole) may vary slightly from batch to batch. No further notice, please refer to the actual subject!
2. Gear in the production and transportation will inevitably cause bumps and scratches, mind, please order carefully.
3. The product must be used with a rack of the same modulus.
