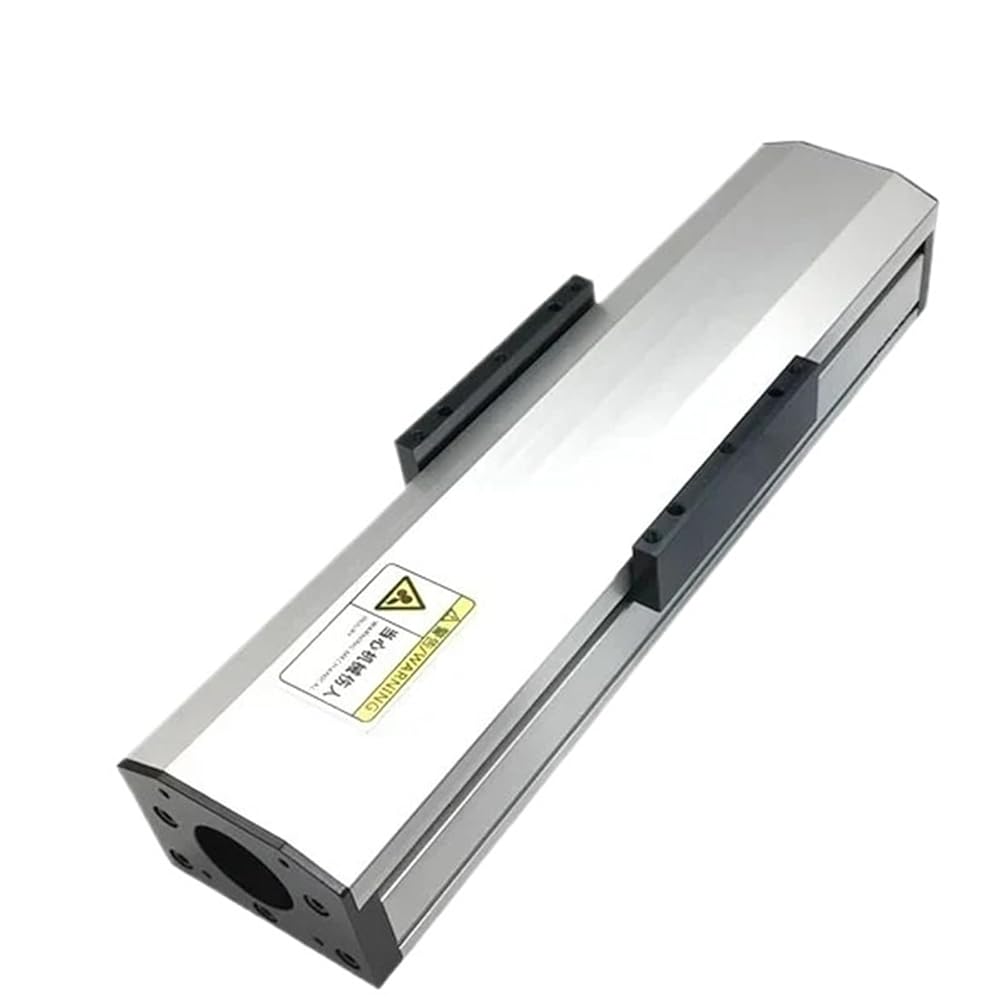

Sliding Block
Repeat positioning accuracy: 0.03mm-0.05mmBallscrew material: Bearing Steel
Ballscrew accuracy: C7
moving speed: 250mm/s
57mm Stepper Motor Technical Parameters
Model Number : QMF90
Guide Width or Diameter : 12mm
Effective Stroke : 100mm-300mm Optional
Total length : Effective Stroke+170mm
Ballscrew type : SFU1605
Guide width : 12mm
Guide Rail Type : 2PCS MGN12R
Sliders type : 4PCS MGN12C
Horizontal load : 70KG (Max)
Vertical load : 35KG (Max)
Module material : Industrial Aluminum Profile
Module width : 90mm
Repeat positioning accuracy : 0.03mm-0.05mm
Ballscrew material : Bearing Steel
Ballscrew accuracy : C7
