Package Included:

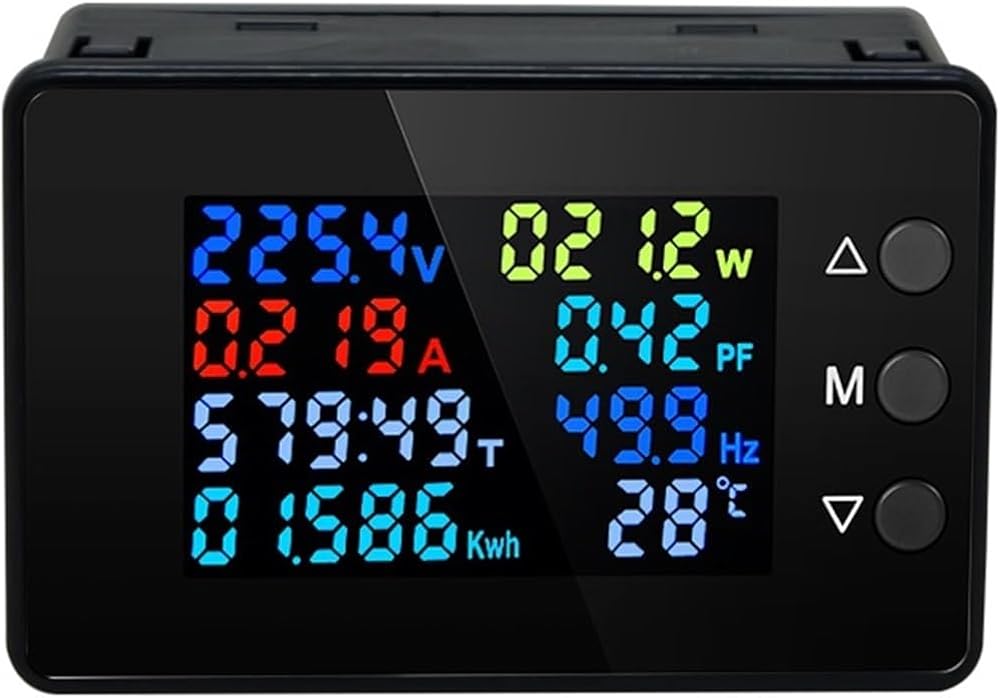

As shown in the picture of the selected style
Instructions:
1. Press and hold the M key for three seconds to enter the settings double-click the M key to wrap and click the M key to shift.
2. Alarm prompt setting when the value is set press the M key for 3 seconds to save.
The alarm prompt will appear only when the actual test value is greater than or equal to the set value or greater than or equal to the set value. When the instrument has an alarm it will make a sound. At the same time the numerical unit will flash on the screen. For example if the current is set to 1.000A an alarm will appear and a prompt will appear when the actual current used is greater than 1.000A.
Turn off the alarm prompt method: set the alarm value larger than the actual value or set all alarm values to 0.
Electric energy and reset method: press the up button for 3 seconds and the flashes click the M button to clear the double-click the M button to wrap to the electric energy and click the M button to clear.
Restoring settings: Press and hold the down key and then turn on the power and hear the sound of the meter indicating that the restoration is successful.
The default voltage alarm value is 275V others are 0
Model: AC301-20A
Model: AC301-100A
Diversion method: built-in
Diversion method: external
Voltage: AC 50-300V
Voltage: AC 50-300V
Current: 0-20A
Current: 0-100A
Electric energy: 0.001-99999kwh
Electric energy: 0.001-99999kwh
Power: 0-4.4KW
Power: 0-22KW
: 0.1-999
: 0.1-999
Temperature: -20~150 ° C
Temperature: -20~150
Frequency: 50-60Hz
Frequency: 50-60Hz
Power factor: 0.01-1PF
Power factor: 0.01-1PF
