Are you still troubled by limited tension measurement range and large data errors?
Want to adapt to various material conditions but struggling with insufficient sensor durability?
Our axis-mounted tension sensor is the ideal choice for accurate force measurement!

Features
1. Dual material options: stainless steel & aluminum alloy
2. 0.1% high precision, extremely low measurement error
3. Million-cycle lifespan, maximum durability
4. Multiple installation methods, adaptable to various working conditions
5. Wide range coverage, 5-500kg suitable

Product Information

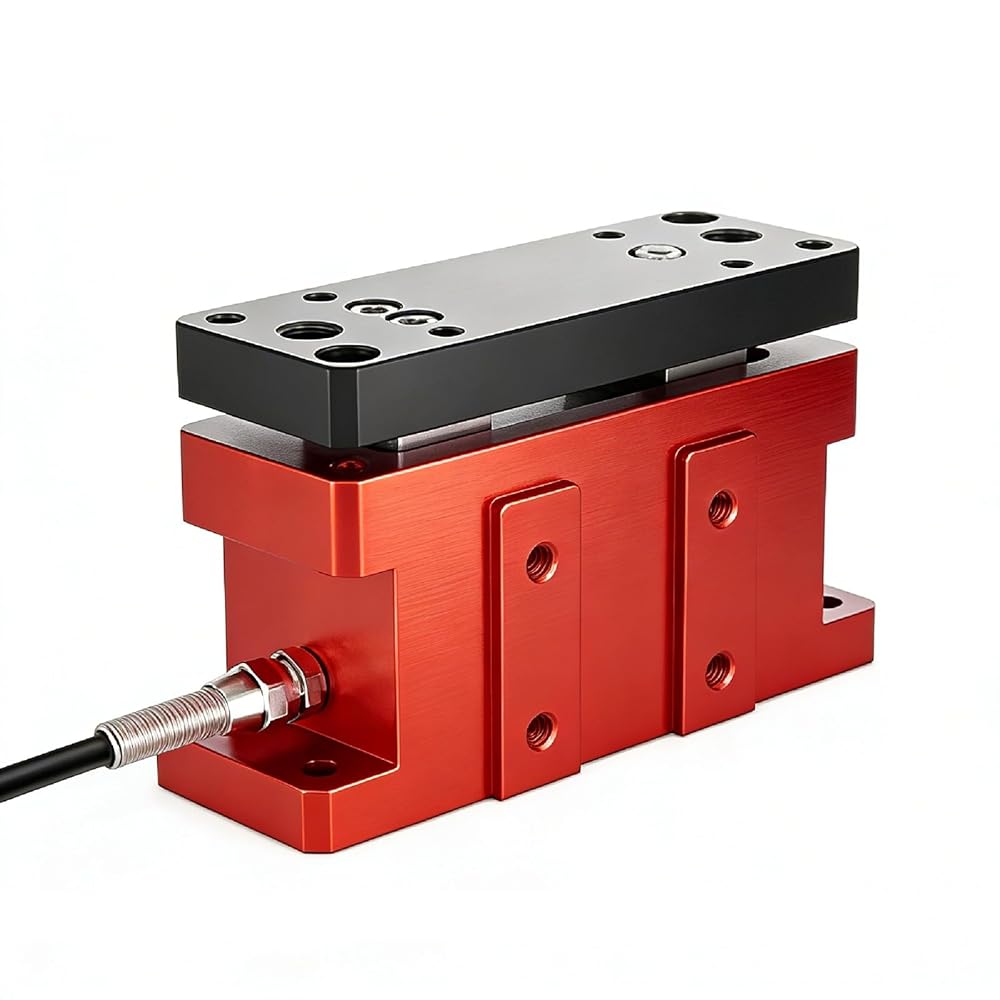

Product Name: High-Precision Tension Sensor
Measuring Range: 5/10/20/30/50/100/200/500 kg
Comprehensive Error: ±0.1%F.S
Non-Linearity: 0.1 %F.S.
Hysteresis: 0.05%F.S
Service Life: More Than 1 Million Times
Material: Stainless Steel/Aluminum Alloy
Insulation Resistance: ＞5000MΩ/100V DC
Cable Specifications: 5mmx3m
Protection Level: IP66
Sensitivity Temperature Effect: ±0.05%F.S/10°C
Zero Point Temperature Effect: ±0.05%F.S/10°C
Temperature Compensation Range: -10~40°C
Operating Temperature Range: - 20~60°C
Recommended Excitation Voltage: 5~10V
Maximum Excitation Voltage: 12V
Safe Overload Range: 120%F.S
Ultimate Overload Range: 150%F.S

Package Contents
1 x High-Precision Tension Sensor

Notes
Please contact me promptly if you have any questions
