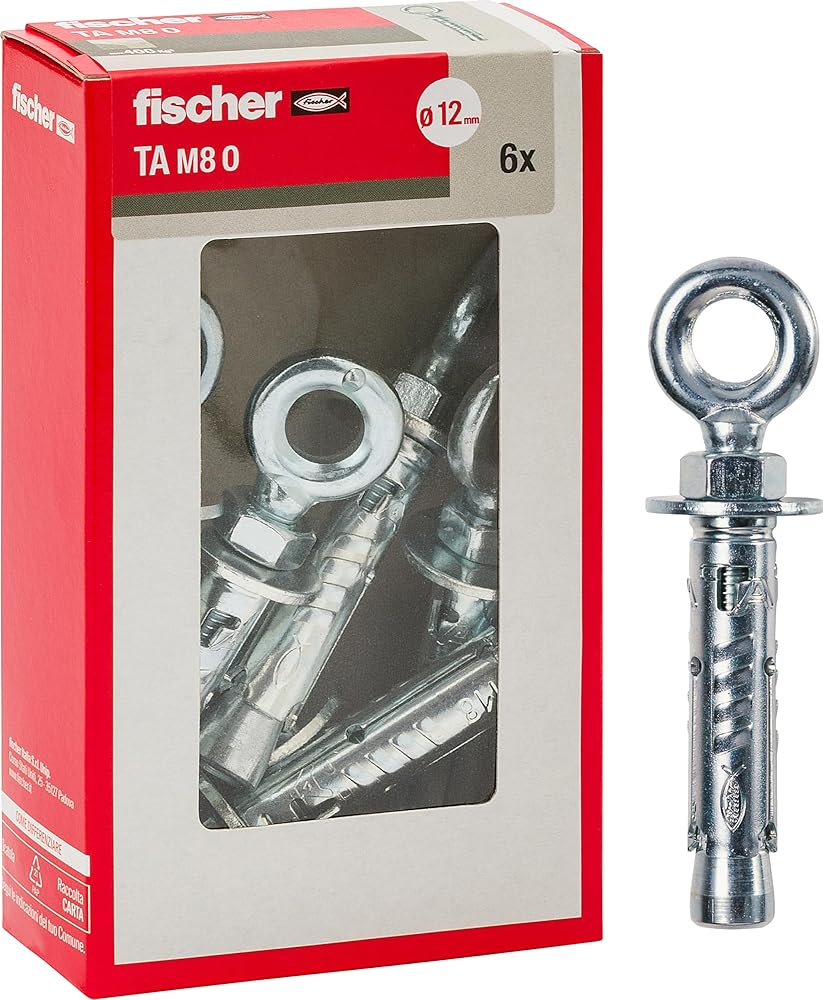

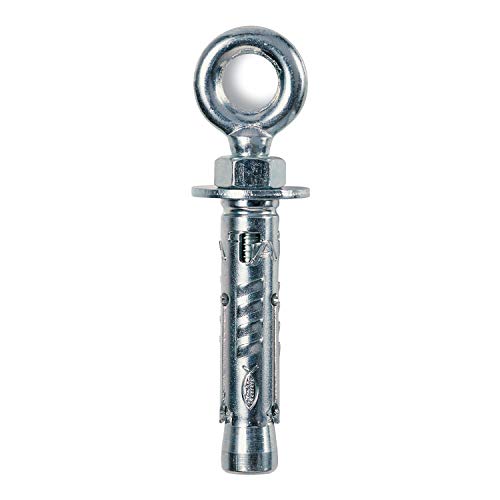

TA M8 O Y Multi-Purpose Anchor with Eyelet TA M-O Y in Cardboard Box with Window
Advantages:
The optimized geometry minimises installation effort and allows for use in extremely tight spaces. This allows easy installation for the user.
The three-section expanding body causes even load distribution and therefore reduced wheelbase and edge distances. This makes the TA M extremely flexible.
Metric internal thread allows the use of standard screws and threaded rods for an ideal fit to the application.
The red plastic cap protects the thread from drilling dust, thus ensuring proper operation.
The TA M (anchor or screw only) is also available in A2 stainless steel (not certified).

Support materials: Cable Walkways
Spaced Installations

Suggested Applications: Cable Walkways
Spaced Installations

Operation: The TA M is suitable for non-through-through installation.

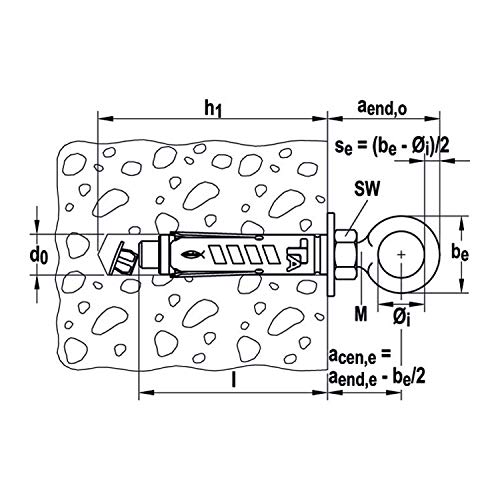

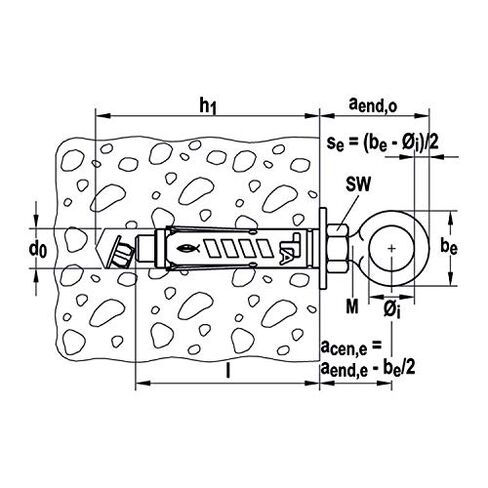

When applying the tightening torque, the cone is called back into the anchor body, which expands against the hole wall.
For correct installation, the eyelet must be counteracted with washer and nut.
To determine the length of the screw ls: Screw length ls = Fixing length + Thickness of object to be fixed tfix + Washer thickness.

Technical details:
Spaced Installation: No
Metric Thread Size: 8 [mm]
Metric Thread: M8

Reference:
Ean code: 8001132712559
Fischer Code: 71255
