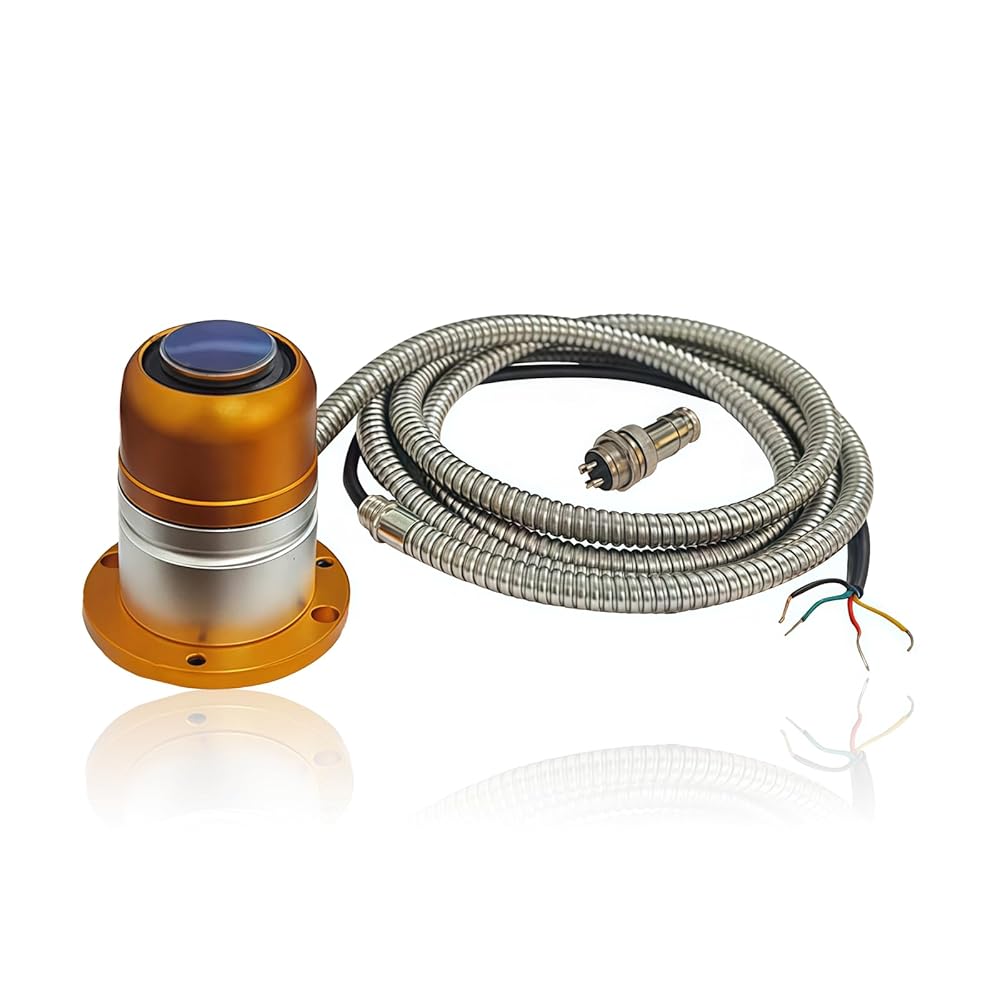

CNC Automatic Tool Sensor Gauge DC 24V Four Wire Normally Closed Touch Probe Tool Setter for Engraving Machine Z Axis Measurement High Accuracy Aluminum Alloy (Without Blowing air) in Saudi Arabia

CNC Automatic Tool Sensor Gauge DC 24V Four Wire Normally Closed Touch Probe Tool Setter for Engraving Machine Z Axis Measurement High Accuracy Aluminum Alloy (Without Blowing air)

SAR 163
ColorWithout blowing air
– 1 +

Special Features

  • 【High Precision Tool Measurement Performance】 This automatic tool setting gauge is designed with a 5 mm stroke and delivers 0.01 mm repeat positioning accuracy; 1.5 N trigger force allows sensitive and repeatable contact for tool length measurement; rated at DC 24V 20 mA for stable signal output; suitable for precise Z axis calibration tasks where consistency and accuracy are critical for your machining setup
  • 【Normally Closed Four Wire Signal Stability】 Built as a normally closed tool sensor with a four wire configuration; this structure helps reduce signal interference and false triggering during operation; compared with open contact designs it offers improved reliability for continuous use; ideal for users who need a stable tool setter connection for engraving and routing machines without air blow systems
  • 【Industrial Protection】 This Z axis probe features an IP67 protection rating to resist dust coolant and debris; sealed housing supports long term use in workshop conditions; designed to maintain performance even with metal chips and moisture present; suitable as an industrial tool setter for users concerned about premature failure caused by environmental exposure
  • 【Flexible Cable】 Equipped with a 2 m flexible four core cable and an additional 1 m protective tube with minimum bending radius R25; this design helps reduce internal wire stress and accidental damage during machine movement; anti collision structure supports safer operation and helps prevent sensor failure caused by unexpected contact
  • 【Compact Size】 Overall dimensions measure 55 x 62 x 38 mm which equals 2.17 x 2.44 x 1.50 inches; net weight approximately 0.35 kg or 0.77 lb; designed for Z axis touch sensor applications on engraving machines; please confirm electrical compatibility and mounting space before installation as this unit does not include air blow functionality

Description

Specifications
Condition: 100% Brand New
Material: Industrial grade metal and sealed components
Color: Silver
Stroke: 5 mm
Repeat Positioning Accuracy: 0.01 mm
Trigger Force: 1.5 N
Rated Voltage and Current: DC 24V 20 mA
Signal Type: Normally closed four wire
Protection Level: IP67
Cable Length: 1.6 m flexible 4 core cable
Protective Tube: 1 m with minimum bending radius R25
Size: 55 x 62 x 38 mm / 2.17 x 2.44 x 1.50 inches
Weight: 0.35 kg / 0.77 lb

Package Included
1 x CNC Automatic Tool Setting Gauge

Please Note
1.This tool setter is a normally closed four wire sensor without air blow function, please confirm compatibility with your control system before installation
2.Manual measurement may allow slight size deviation and color may vary slightly due to lighting and display differences
