The Essential Link Between Your USB World and DIY Electronics

This Cermant Micro USB to DIP breakout board is the professional's choice for bridging standard Micro USB connectivity with the flexibility of 2.54mm pin headers. Turn any Micro USB cable into a modular component for your custom circuits, prototypes, and repairs.

📐 Detailed Specifications:
Interface: Standard Micro-USB B Female Port
Output Format: 5 x 2.54mm (0.1") Pitch Plated Through-Holes

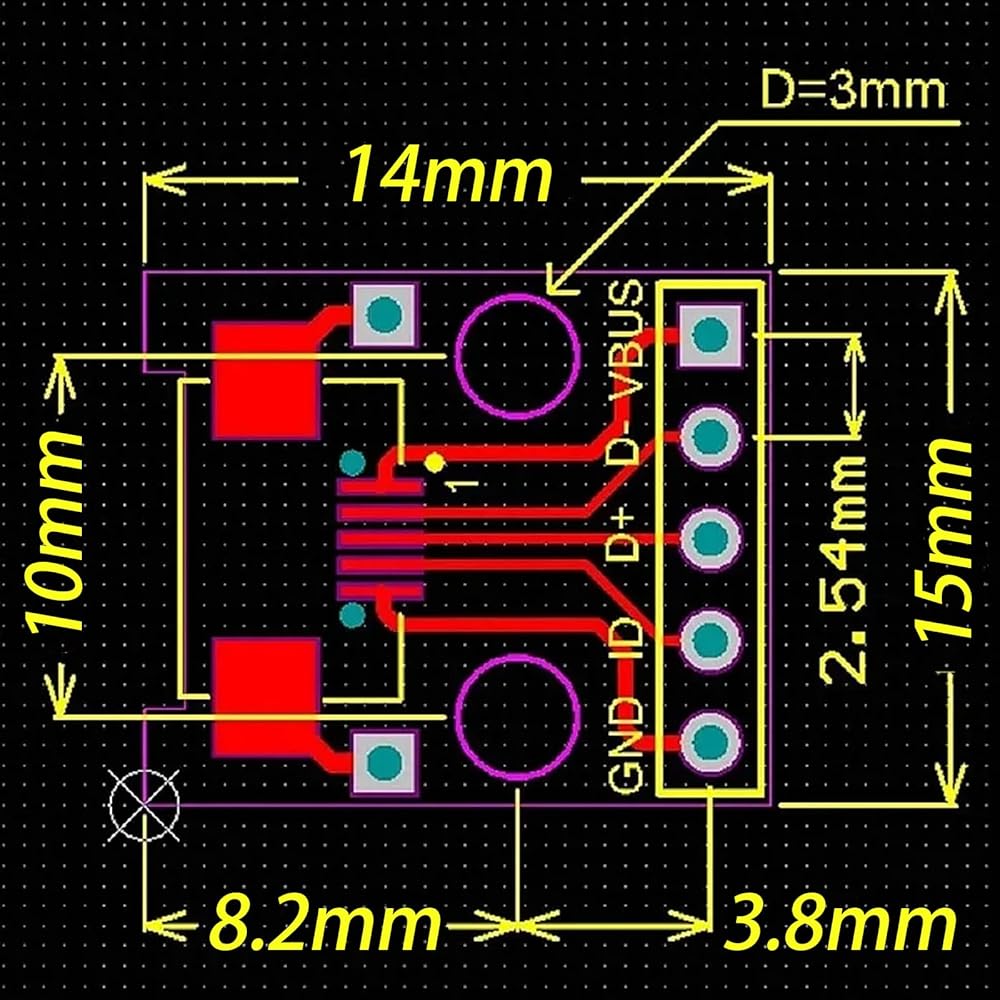

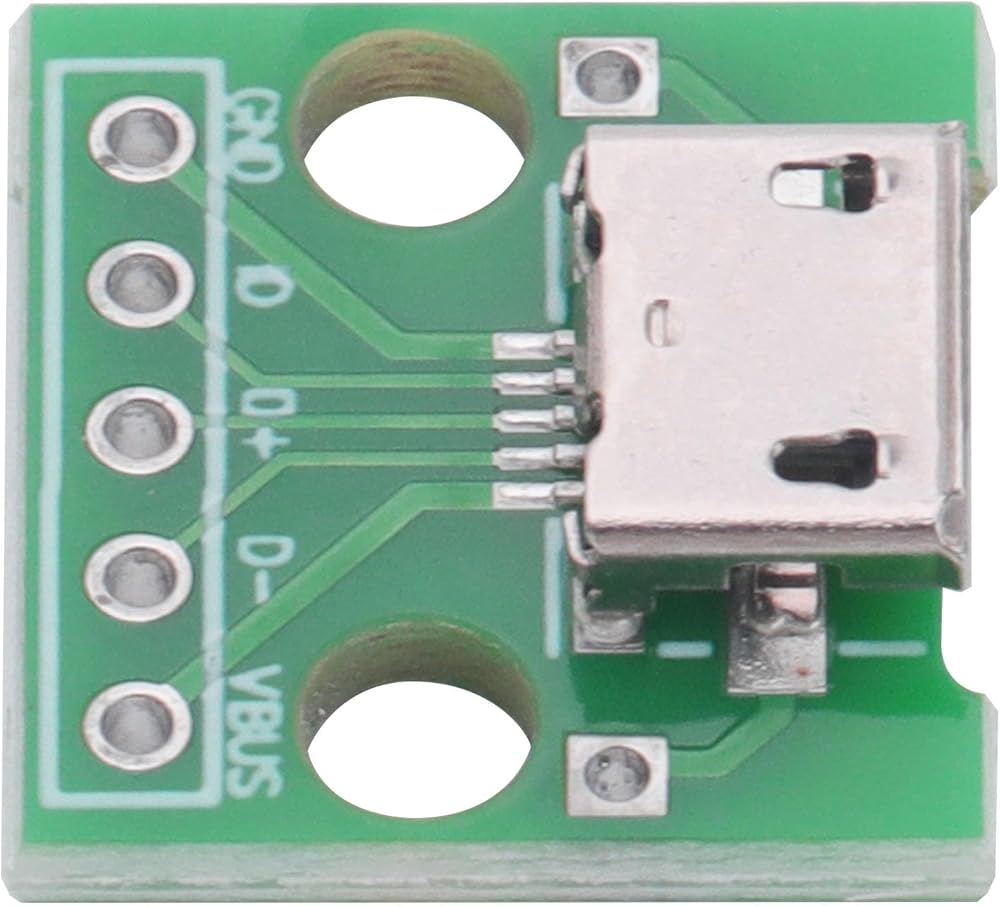

Pinout (From Left to Right, Looking at the PCB with USB Port Facing Up):
  VBUS (+5V Power from USB host)
  D- (USB Data -)
  D+ (USB Data +)
  ID (Identification, often connected to GND in devices)
  GND (Ground)
PCB Material: FR4
Dimensions: Approximately 16mm (L) x 14mm (W)

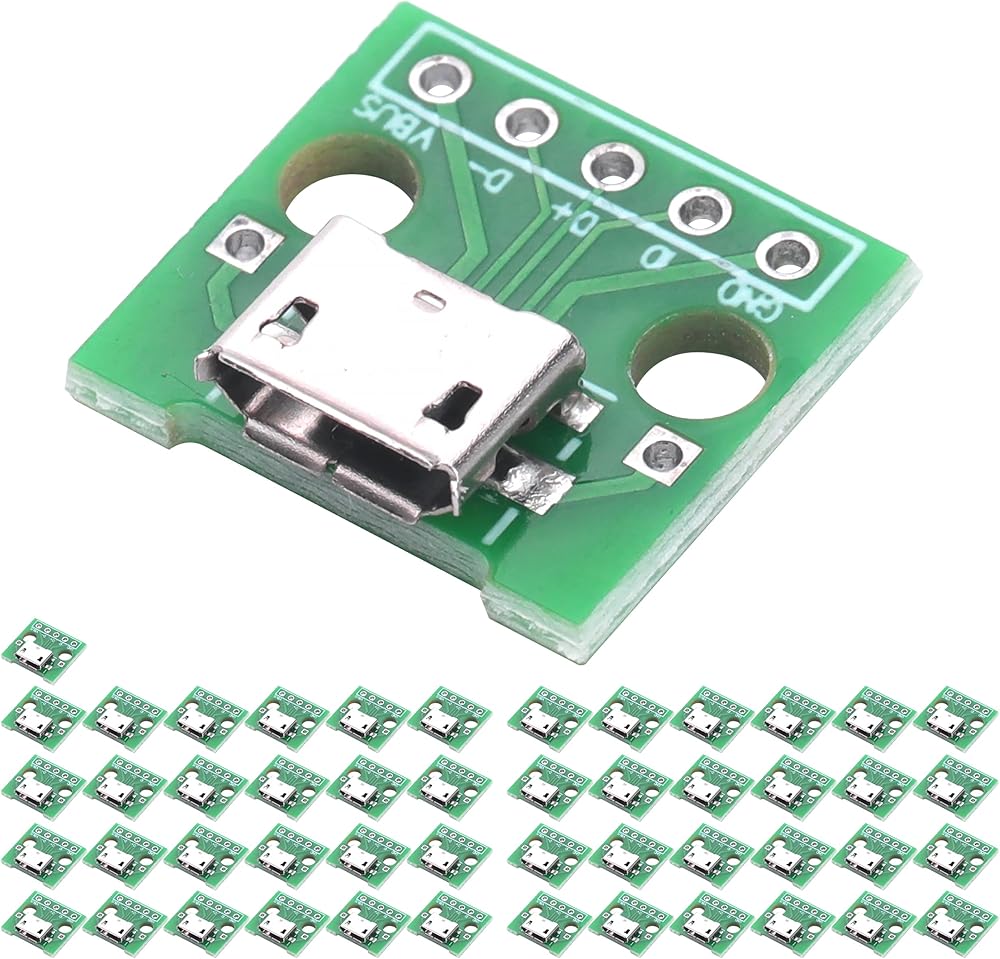

Package Quantity: 50 Pieces

⚠️ Important Usage Notes:
Not a Standalone Power Supply: This is a passive adapter. It does NOT generate power. It provides access to the 5V (VBUS) and GND lines from a connected USB host (like a computer, charger, or power bank).
Solder Required: This board comes with solder pads/holes only. You will need to solder your own header pins (straight or right-angle) or wires to connect it to your circuit.
Check Pinout: Always verify the pinout with a multimeter before connecting to sensitive circuits to avoid short circuits.

🔧 Common Project Applications:
Custom USB Cables & Adapters: Create specialized USB cables for data or power.
Microcontroller Programming: Build a permanent USB-to-Serial (FTDI) interface onto your custom PCB for easy programming of ATmega, ESP8266, ESP32, etc.
DIY USB-Powered Gadgets: Power LED projects, small fans, or sensors directly from a USB port.
Device Repair & Modification: Replace a damaged Micro USB port on a device with this more robust breakout board, or add USB functionality where it didn't exist.
Prototyping & Education: An excellent tool for learning about USB connectivity and integrating it into breadboard projects.

📦 Package Includes: 50 x Cermant Micro USB Female to 5-Pin DIP Breakout Adapter PCBs.
