Bearing

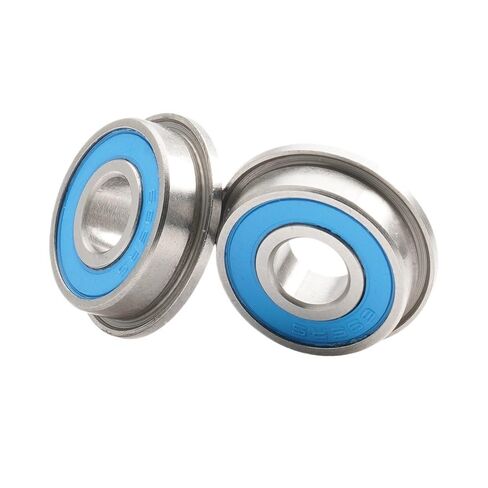

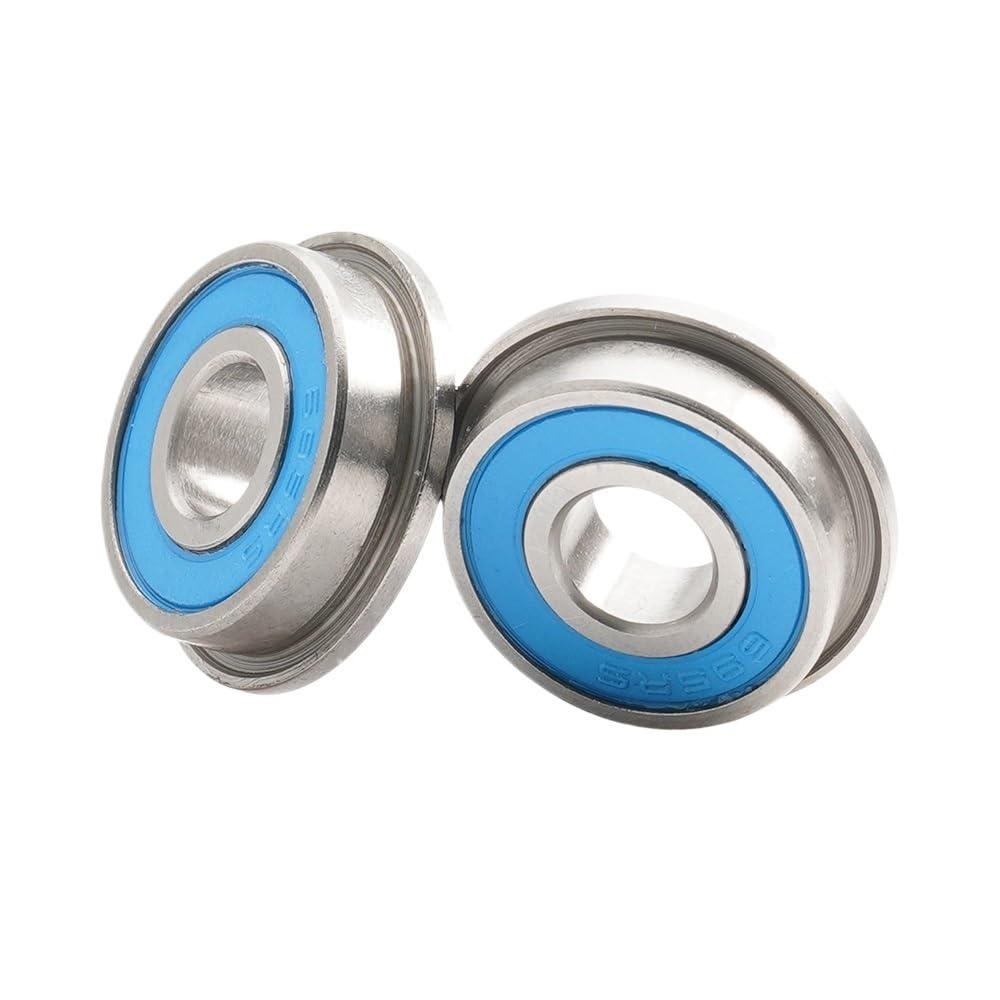

Model : F695-2RS Miniature Ball Bearing
Part Number : F695 2rs
System of Measurement : Metric
Bearing Type : Ball
For Load Direction : Radial
Construction : Single Row
Seal Type : Double Sealed
Bore Dia : 5 mm
Bore Dia Tolerance : -0.007mm to 0
Outer Dia : 13 mm
Outer Dia Tolerance : -0.007mm to 0
Width : 4 mm
Width Tolerance : -0.11mm to 0
Flange Outer Dia : 15 mm
Flange Thickness : 1 mm
Ring Material : 52100 Chrome Steel
Ball Material : 52100 Chrome Steel
Cage Material : F1 Stamping Steel
Shield Material : Nitrile Rubber
Dynamic Radial Load : 916 N
Static Radial Load : 346 N
Max Speed (X1000 rpm) : 43
Lubrication : Pre Filling Grease
Shaft Mount Type : Press Fit
Temperature Range : -30° to 120 °C
ABEC Rating : A9
Radial Clearance Trade No. : C0 Small
Radial Clearance : 0.005mm to 0.011mm
Ball Dia : 2.0000 mm
Ball Qty : 8
Weight : 2.68 g
Quantity : Pack of 10 Pcs
Material : Bearing Steel
Model Number : F695-2RS Bearing 5*13*4 Mm for ZEROG .1 Bearings
