[High Voltage Output]Delivers pulse voltage up to 0.8kV, providing high-temperature arc for quick ignition of cigarette paper.
[Compact Design]PCB size of 5.4 by 1.8cm allows easy portability, ideal for DIY electronic enthusiasts.
[Safe and Reliable]Encapsulated transformer design ensures safe operation, perfect for extended use without issues.
[Power Efficient]Operates on DC 3-5V with 5A current, making it compatible with 3.7V lithium batteries for optimal performance.
[Versatile Usage]Can be used for various ignition purposes, including igniting thin wires and conducting electronics experiments.

Features:
Application: can instantly ignite cigarette paper, super small size, DIY electronic lighter, electronic enthusiasts study
Input 3-5v and the secondary high-voltage output is not connected to a high-voltage rectifier diode and capacitor, the output two-stage wire end can generate a purple high-temperature arc with a length of≤0.8 centimeters and no hum, but the temperature is very high.
It can easily light up the cigarette lighter momentarily. Even a very thin wire can be burnt (such as the scene of burning the fine wire in oxygen during the junior high school chemical test, but not as intense as in oxygen).

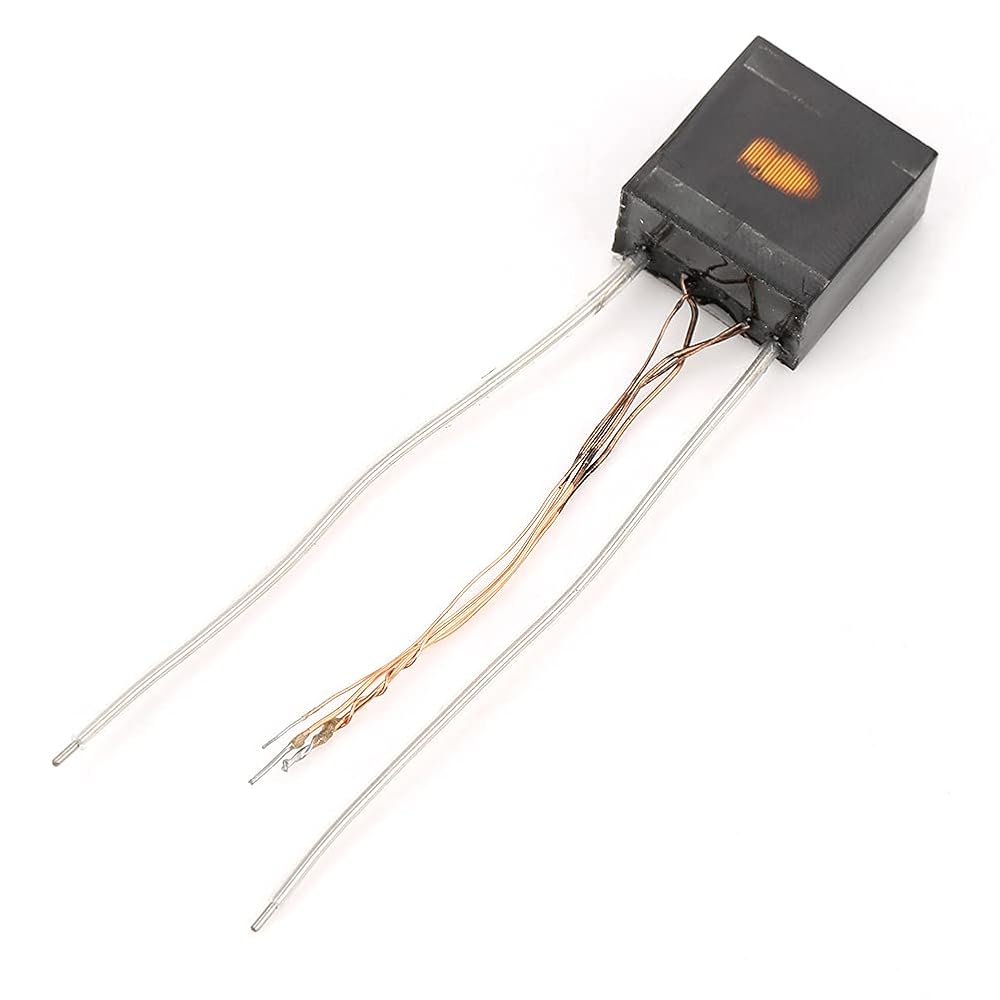

Transformer has been encapsulated with resin, which has high safety
Can work reliably and continuously for a long period of time.(recommended within 1 minute at a time.Pay attention to heat dissipation)
Specification:

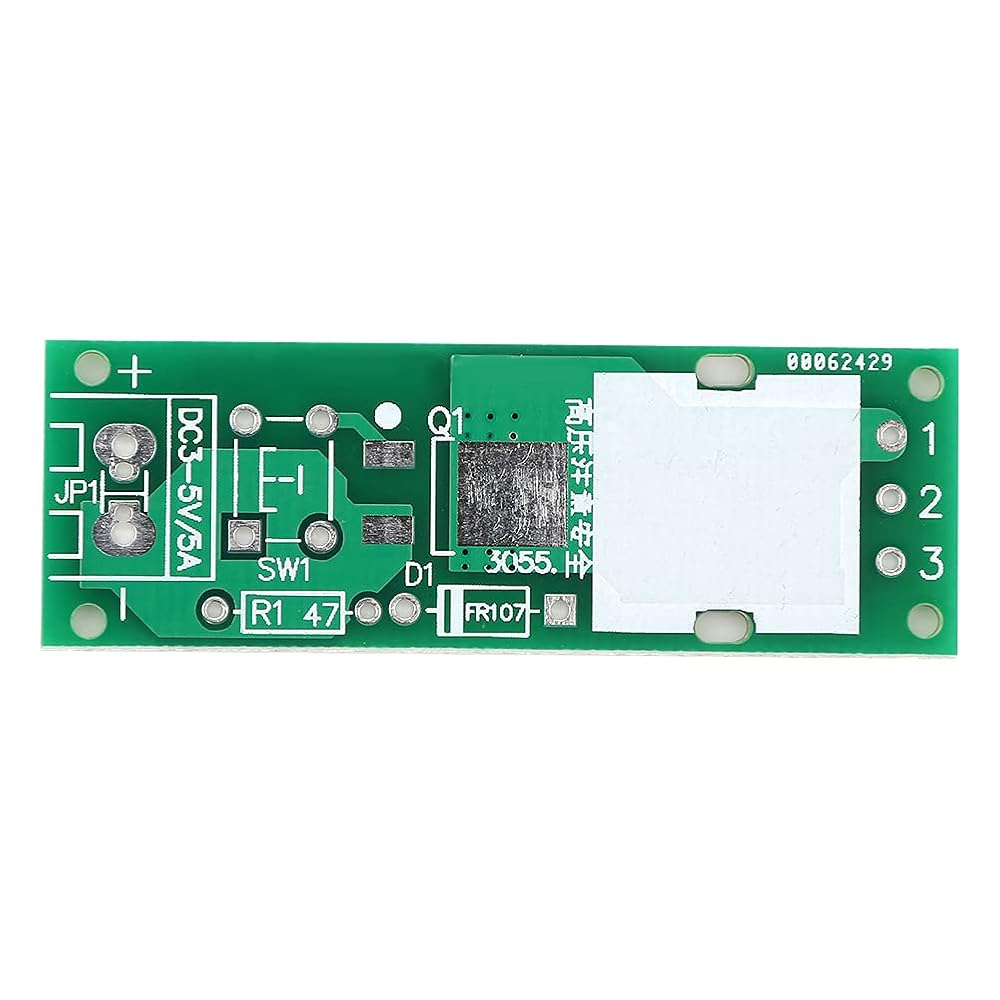

PCB size: 5.4*1.8cm/2.1*0.7in
Voltage and current power: DC 3-5V, current 5A, more than 15W. It is recommended to use a 3.7V lithium battery.
Output pulse voltage: 0.5kv-0.8kv
Working frequency: 20khz-25khz
Arc distance: 5-8 mm
Size: 5.4*1.8cm/2.1*0.7in
Weight: Approx.12g/0.4oz

Package list:

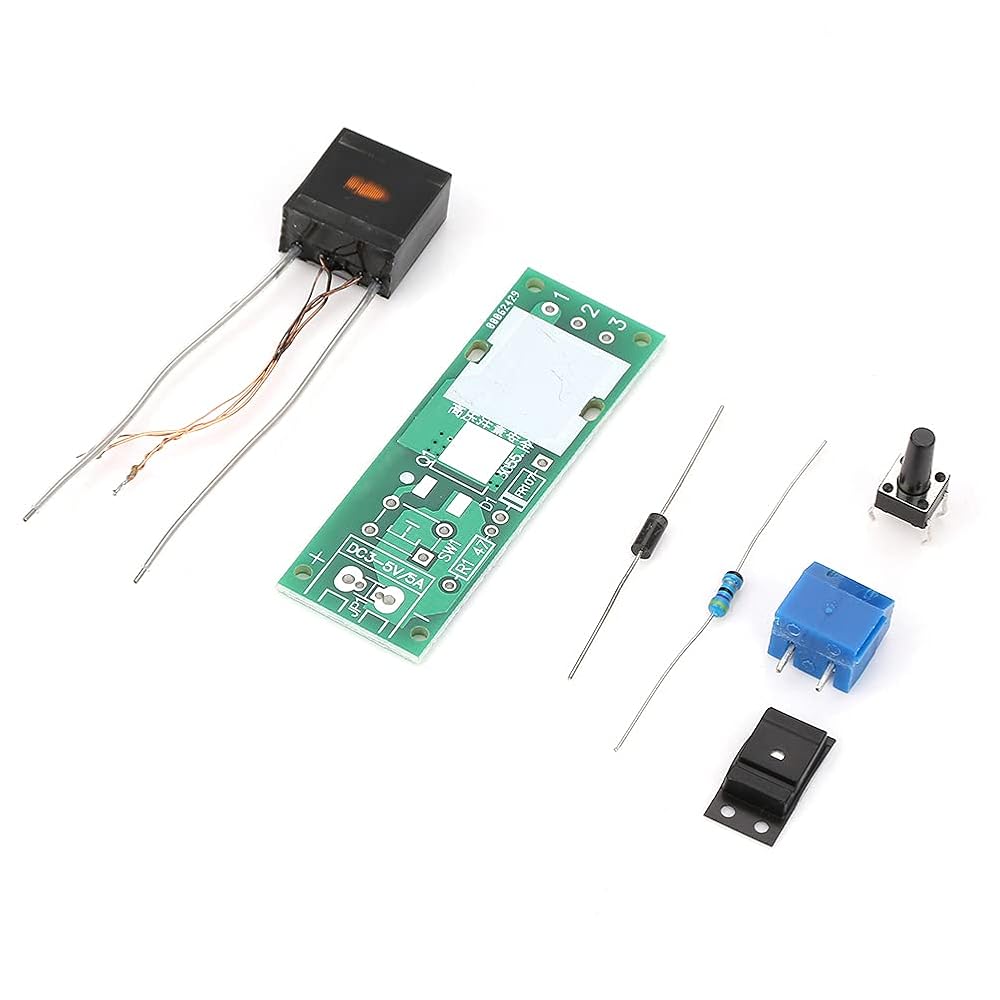

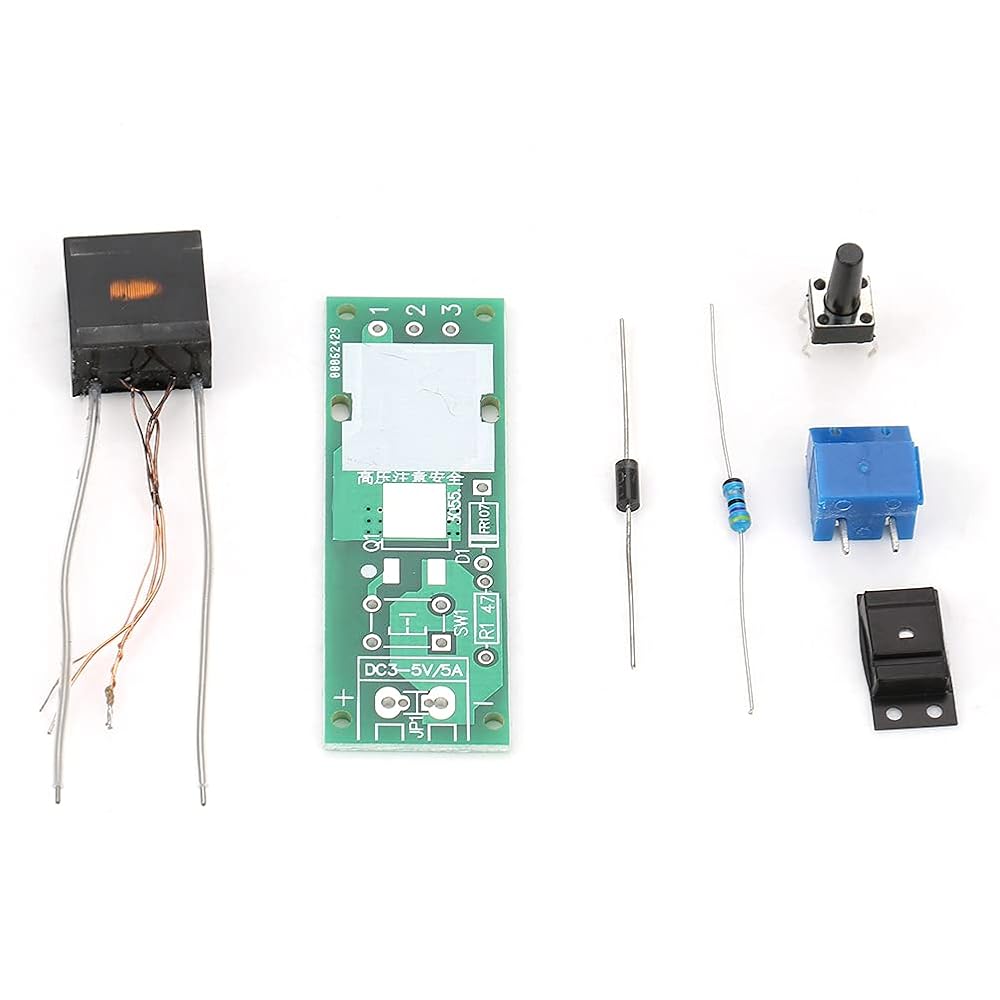

1 set x Arc Starter Coil Module kit
