1. [EASY TO USE] Control your stepper motor effortlessly with this pulse generation module that can produce pulse and PWM signals.
2. [ SIGNAL] Enjoy precise control with high, middle, and low frequency signals ranging from 80-160 KHZ.
3. [WIDE COMPATIBILITY] Compatible with a variety of stepper drivers and motors, allowing for flexible control options.

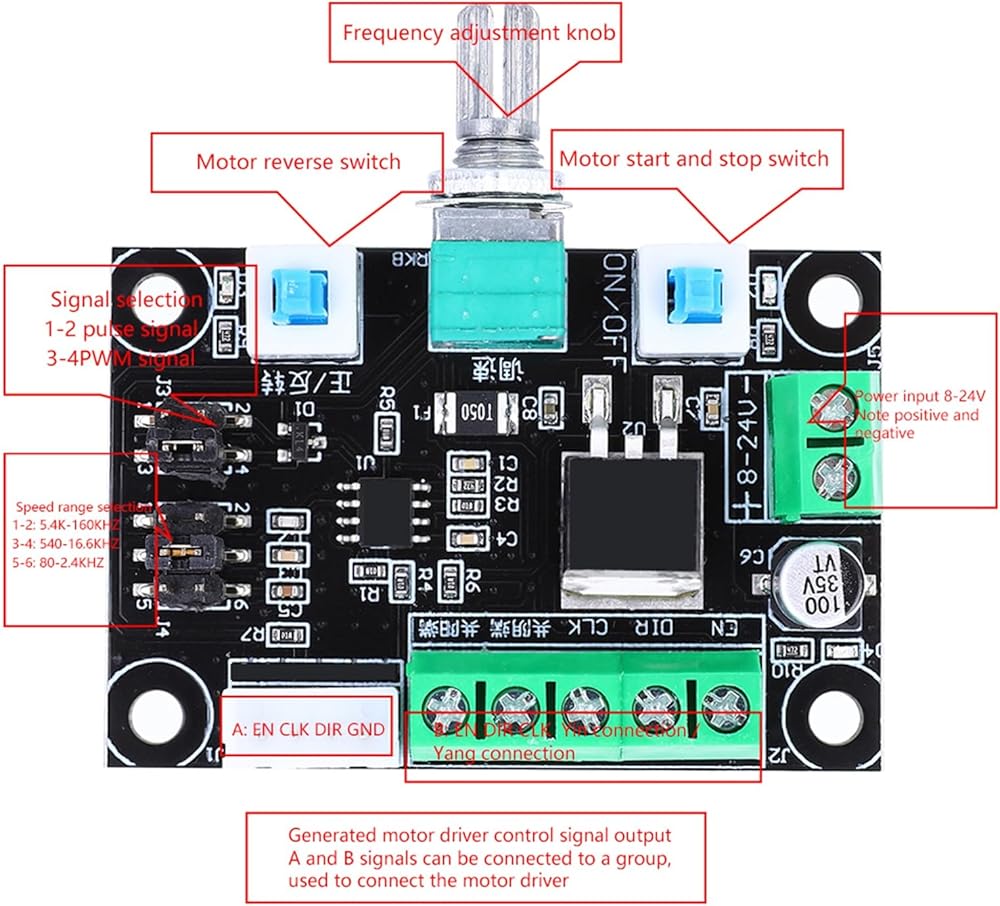

4. [VERSATILE FUNCTIONALITY] Can generate both pulse and PWM signals with the option to choose between them using a jumper.
5. [ACCURATE MEASUREMENT] Measure both pulse and frequency signals for precise monitoring and control.

Specification:

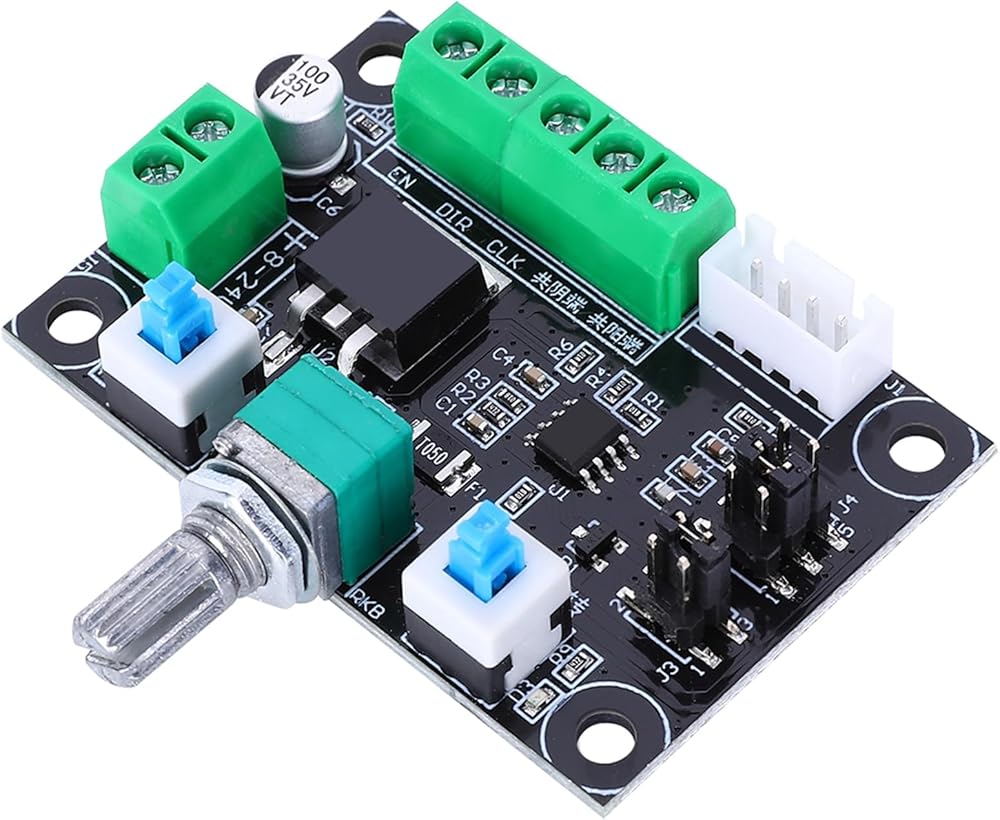

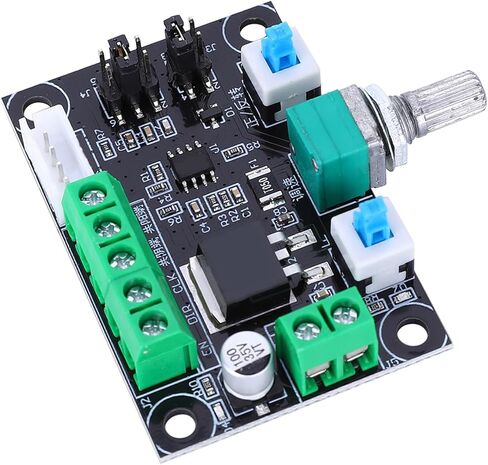

Condition: 100% Brand NewItem Type: Stepper Motor Drive Controller
Material: Metal
Coloe: As Pictures Shown
Out of sync motor driver port tag is different but the same function
EN = = FREE can make
PUL = PULS = CLK pulse
DIR = the CW = CWW direction
Yang connection (B)
EN + PUL + DIR + together received a total of anode side.
Meet EN EN -
PUL - answer the CLK
DIR - meet DIR
A total of Yin connection (B)
EN - PUL - DIR - together received a total of cathode .
EN + meet EN
PUL + answer the CLK
DIR + meet DIR

Package List:
1 x Stepper Motor Drive Controller2 x Screw Gasket
