Hydraulic Quick Connect Coupling M16x1.5 Male Female Cr Plated Steel Coupler for High Pressure Hose with Check Valve
Feature:
1. STRONG MATERIAL: The hydraulic quick connect coupling is designed with heavy load. The female connector is made of Cr plated steel material. The lock sleeve of the male connector and the female connector are hardened to withstand pressure and have good fatigue prevention
2. SAFE SEAL: M16 hydraulic quick connect coupling adopts two stage seal, no leakage, with safe self locking function, you can use with confidence
3. LIFT VALVE FUNCTION: The hydraulic quick connect coupler lift valve prevents uncoupled leaks. Within the rated operating pressure range, the lift valve automatically opens when connected to quickly maintain flowrate

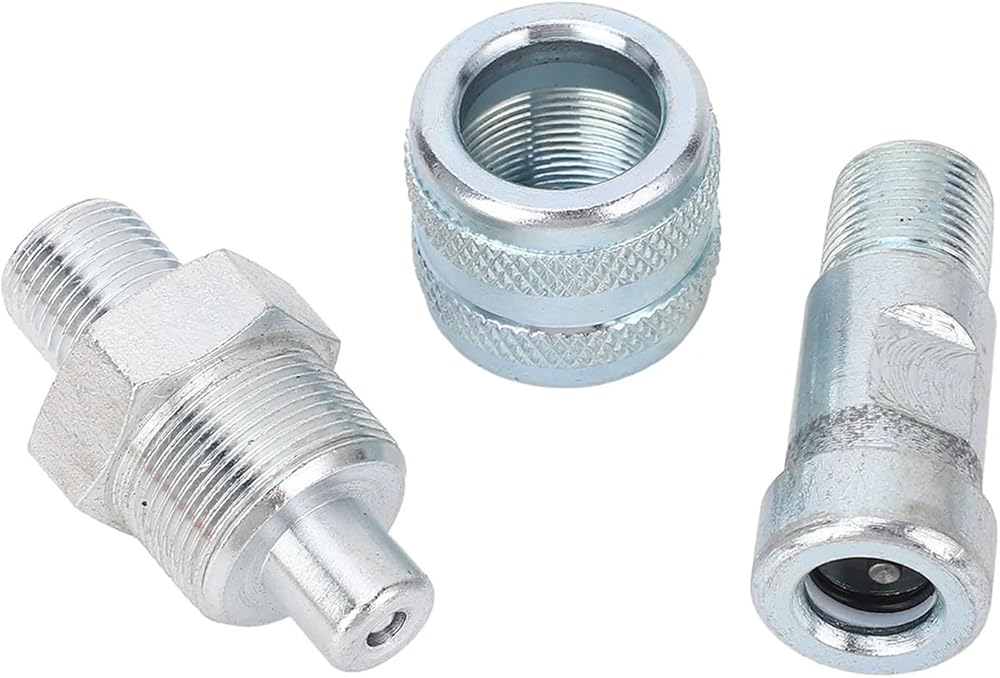

4. STABLE STRUCTURE: The key components of hydraulic quick connect coupler are hardened and long lasting. A trusted ball locking mechanism holds the matching halves together

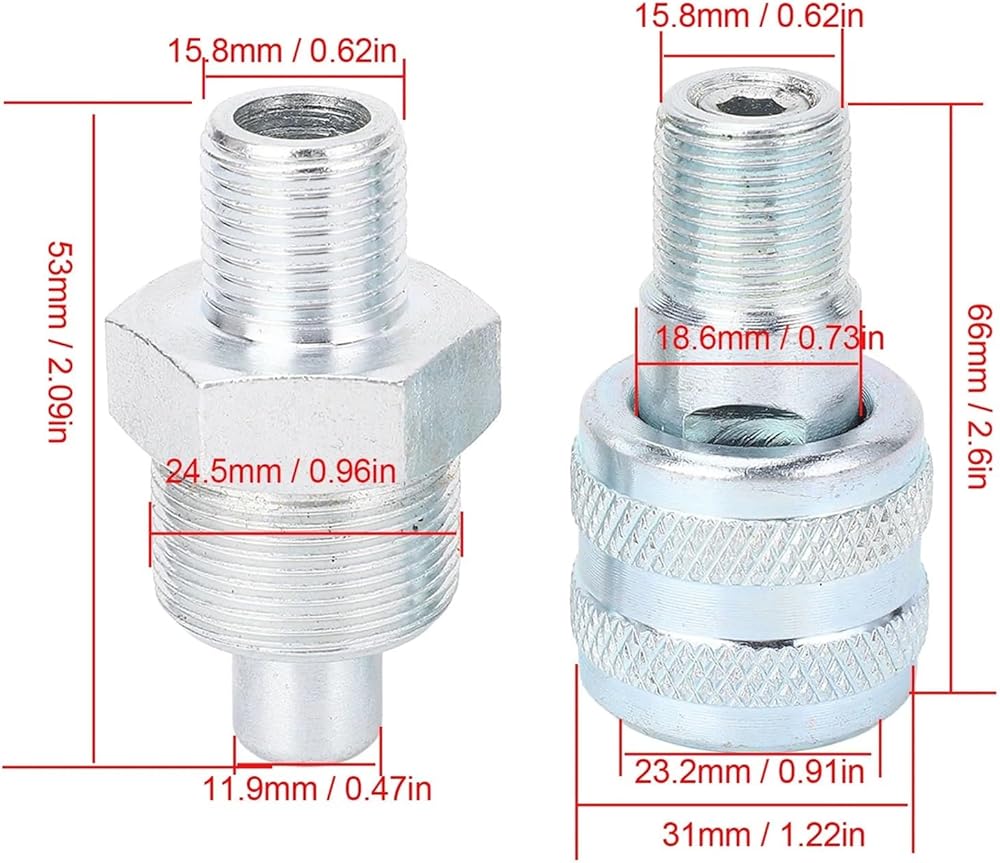

5. TECHNICAL PARAMETERS: Hydraulic quick connect hose coupling socket and are made of solid material with accurate machining, screw thread is M16x1.5, can withstand 70MPa pressure, can be installed and used
Specification:
Item Type: Hydraulic Quick Connect Coupling
Material: Cr plated steel
Thread: M16x1.5
Withstand Pressure: 70MPa
How to Use:
Install and use
Package List:

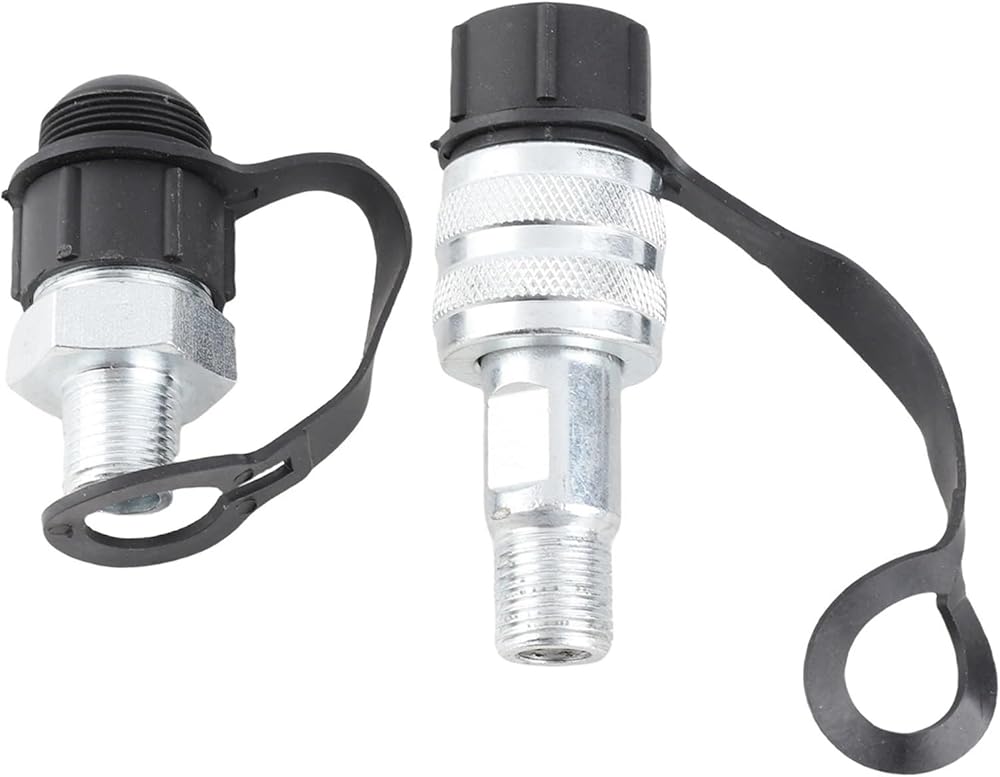

1 x Hydraulic Quick Coupler Male
1 x Hydraulic Quick Coupler Female
==========
Pressure : 850 kPa
High-concerned chemical : None
Hose Inner Diameter : 16mm
Connection : Female
Head Code : Hexagon
Technics : Casting
Model Number : Hydraulic Quick Connect Coupling
Shape : Reducing
Type : Coupling
Material : Alloy
Origin : Mainland
Certification :
Material : Cr plated steel
