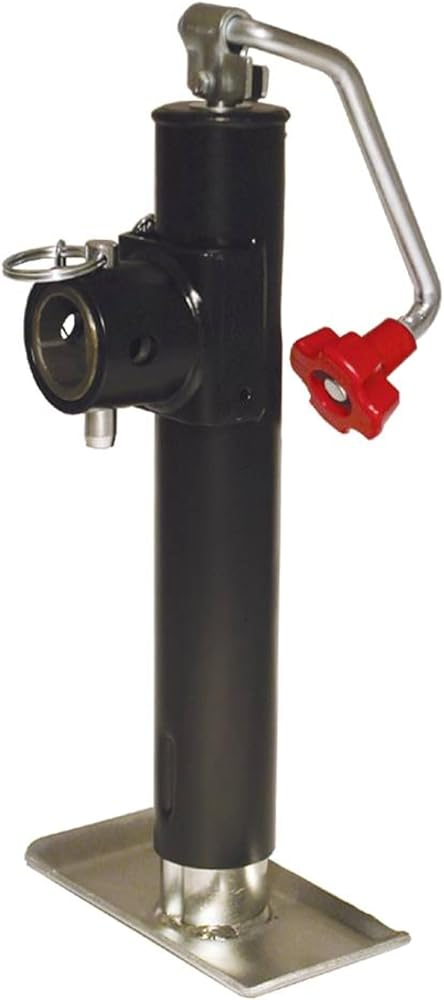

TOPWIND IMPLEMENT JACK — 2000 LBS LIFT CAPACITY:
Lift Capacity: 2,000 lbs
Lift Height: 10 Inches
Mount Type: Weld-On Collar (Pipe Mount)
Handle: Topwind (Top Crank) Operation
Construction: All-Steel Round Tube
Retracted Height: 11 1/4" from Center of Bracket
Swivel Bracket: L-Bend with 1/2" Plunger Pin
Foot Plate Included for Stable Ground Contact
Rolled Acme Threads with Anti-Friction Thrust Bearing

AGRICULTURAL AND UTILITY TRAILER APPLICATIONS:
Farm Equipment Trailers — Weld-On Collar Pipe Mount
Hay Wagons, Hay Trailers, Light-Duty Implement Trailers
Seed Drills, Planters, Small Grain Carts, Feed Trailers
Utility Trailers — Single Axle Weld-On Pipe Mount
Landscape, Boat, Cargo, Dump Trailers — Pipe Mount
ATV, Snowmobile, Personal Watercraft Trailers
Rotary Mowers, Finish Mowers — Pull-Type Implements
Small Flatbed Trailers — Weld Collar Mount

OEM PART NUMBERS:
Valley Industries: VI-020 / VI020
Bulldog / Reese / Draw-Tite: 151401 / 158451
Torin: ATR39003R
Complete Tractor: 3013-0502 / 30130502

PRODUCT DETAILS — Heavy-Duty Weld-On Topwind Jack:
Premium topwind implement jack with 2,000 lb lift capacity and 10 inch lift height. Weld-on collar pipe mount provides permanent secure attachment to trailer tongues and implement frames. L-bend swivel bracket with 1/2 inch plunger pin allows jack to pivot out of the way when not in use. All-steel round tube construction ensures durability and reliable operation season after season. Retracted height of 11 1/4 inches from center of bracket keeps profile low for clearance. Rolled acme threads and anti-friction thrust bearing deliver smooth, effortless cranking. Foot plate included for stable ground contact.

⚠️ IMPORTANT: Verify pipe diameter and mount type before ordering to ensure proper fitment.
