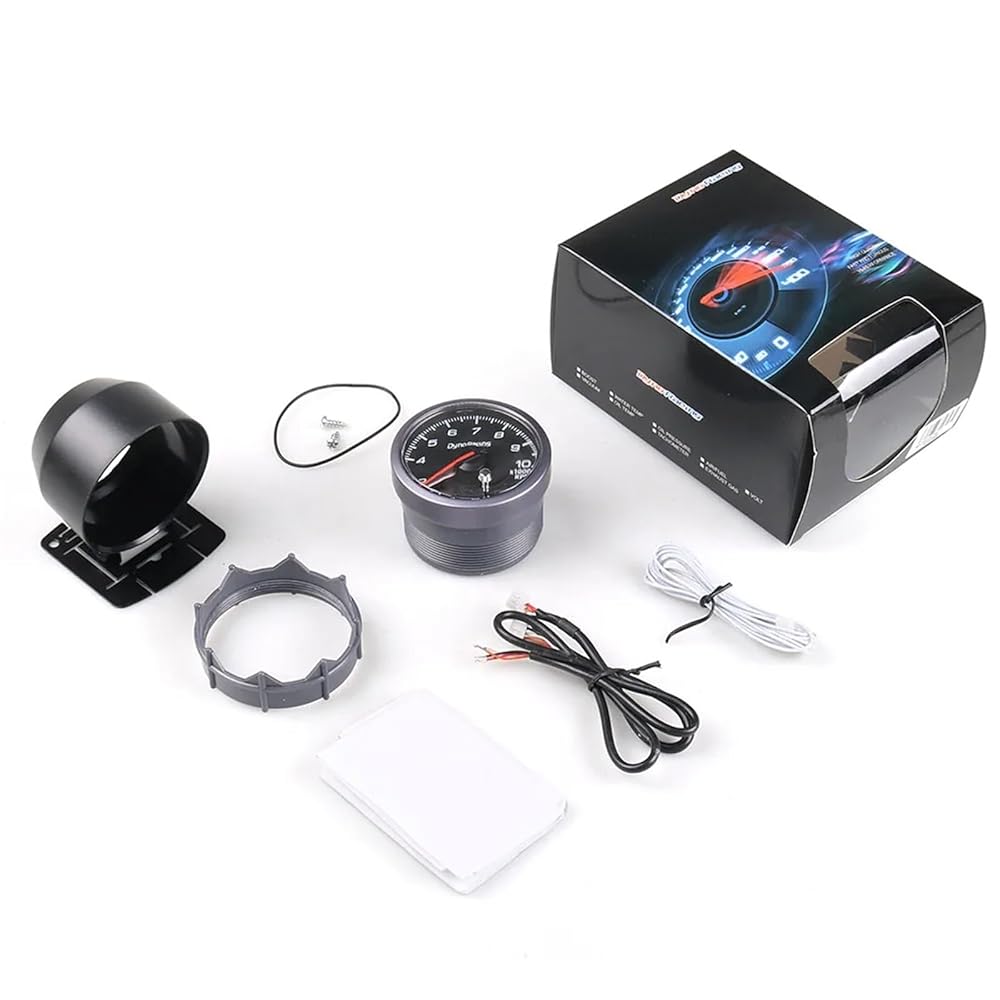

Package Includes:
1*RPM Gauge
1*Gauge Stand with mounting accessories
2*Cables
1*Screw knob
1*Installation Manual
1*Retail Box
Features:
With high speed stepper motor ,give you a quick response.

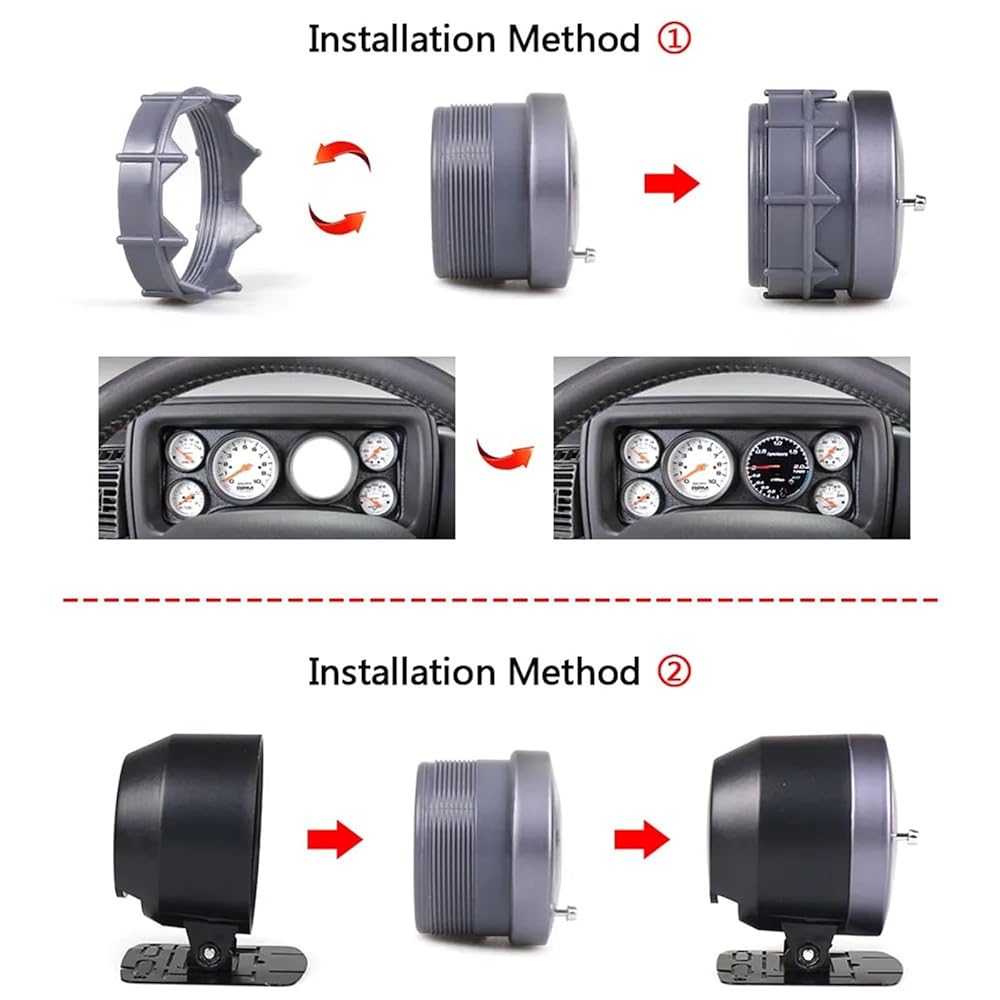

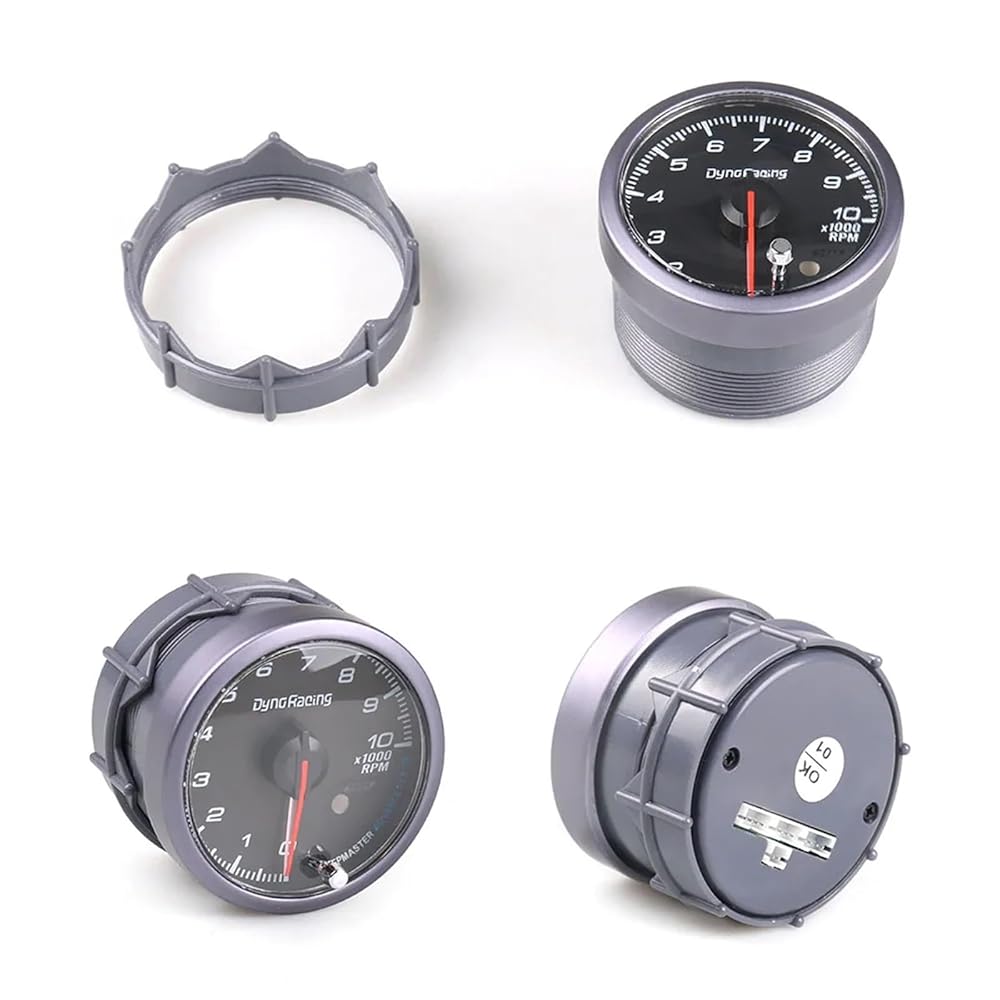

Two installation methods according to your preference.

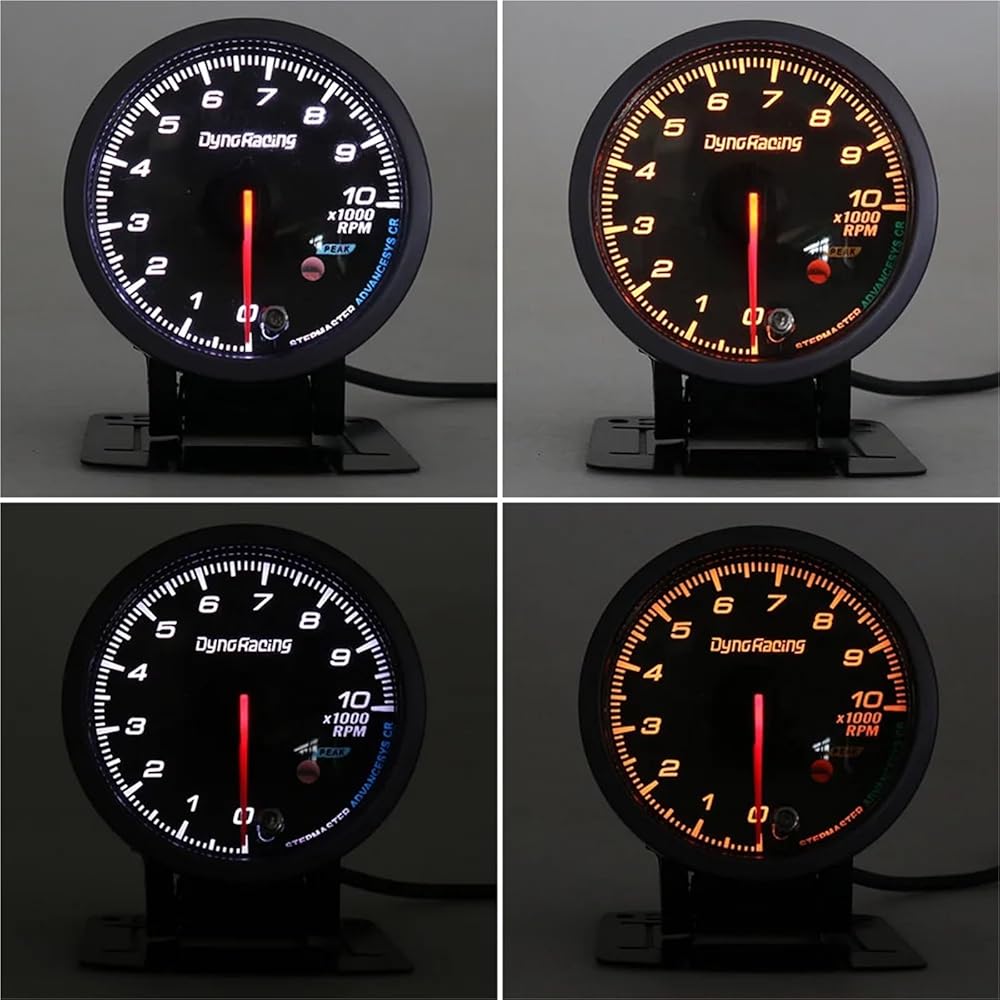

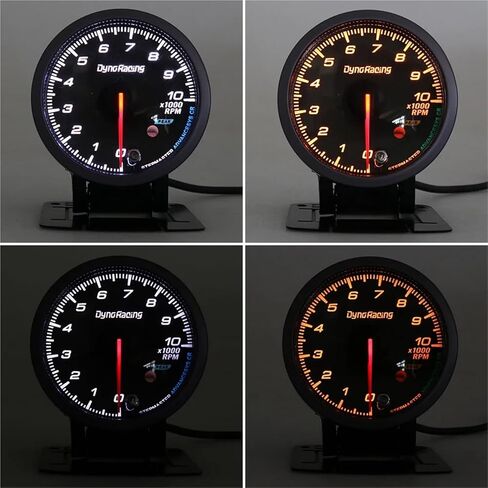

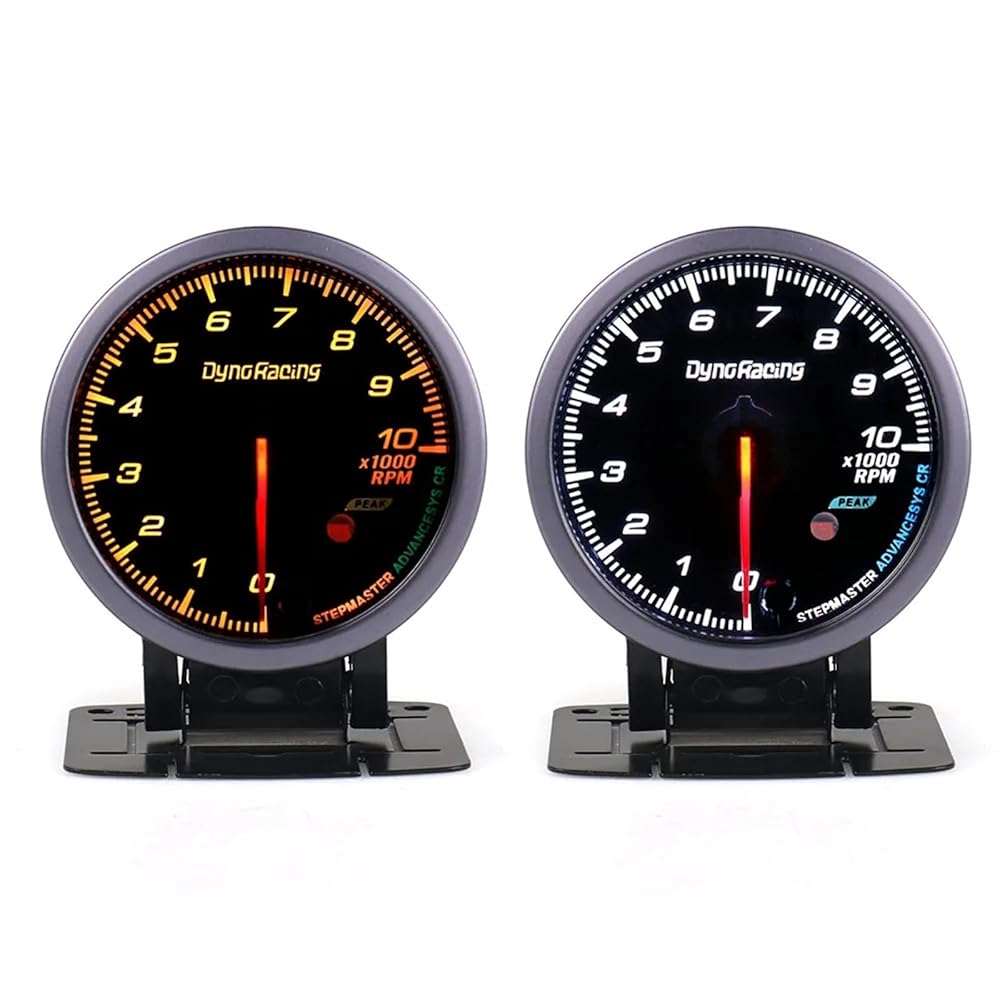

Can be wired up to light up WHITE or AMBER.(Warning RED)
Comes with everything required for install as pictured

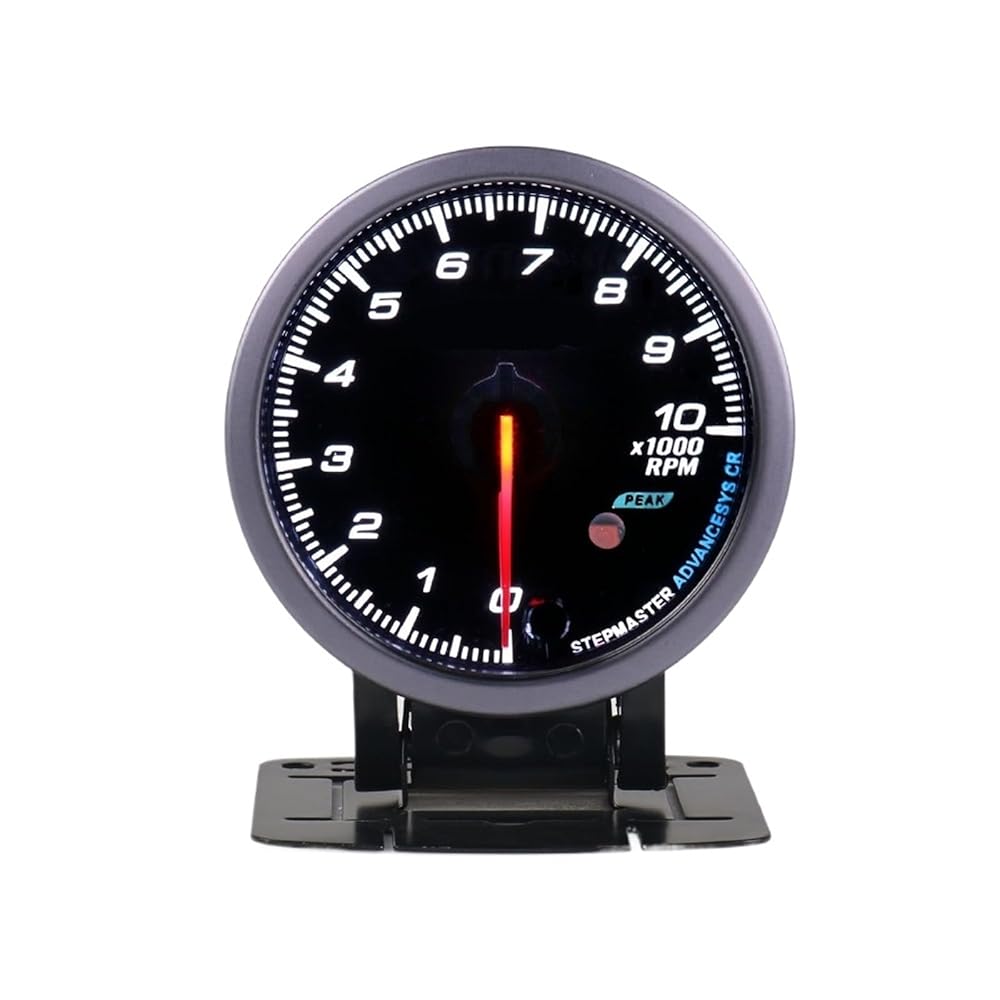

This RPM gauge has a range of 0 - 10,000 RPM
Gauge takes RPM reading from your ECU.
Works on 4/6/8 Cylinder engine and 12VOLT Gasoline car
Adjustable warning setting
Peak display - allows you to show your highest reading with a push of a button.
When initially powered on, the gauge displays an opening ceremony which calibrates the gauge to ensure accurate reading
Question and solution:
1:How to cancel the buzzing sound?
If you want to cancel the buzzing sound, just restart the power supply and hold the button until the buzzing sound disappears, then release the button. Vice versa.
2:How to set the PEAK Value
After completing the Self-checking, press the button and release, the PEAK lights up (blue light). Then hold the button again for 3 seconds, when the PEAK light flashes, release the button, PEAK value is cleared, the pointer will returns to zero after about 3 seconds.
2:How to set alarm points and cylinder:
After self-examination, hold the button for 5 seconds, the pointer lights flicker, loosen, and then press the button to set the alarm point (Press the button and fleetly for fine setting, press and hold the button for quick setting). After about 5 seconds, the pointer automatically returns to zero, you can then set the next Step.
After self-test or after the pointer returns to zero, hold the button for 10 seconds, the pointer lights flicker, loosen, and then press the button to set the cylinder, loosen, after 5 seconds, the pointer automatically returns to zero, you can set the next step.
When the meter reaches the alarm value, the lights will flicker .
==========
Number Of Cylinders : 4/6/8
Placement on Vehicle : Front
Country/Region of Manufacture : Rpm gauge
Interchange Part Number : Tachometer
Special Features : Tachometer
Item Weight : 0.4KG
Item Height : 60mm
Item Width : 60mm
Item Length : 60mm
Part Number : BX101476
Material : ABS+Steel
Color : Black Case/ Red & Amber Lighting
Meansure Range : 0-10000 RPM
Fitment : 12V,4/6/8 cylinder ,Gasoline car
