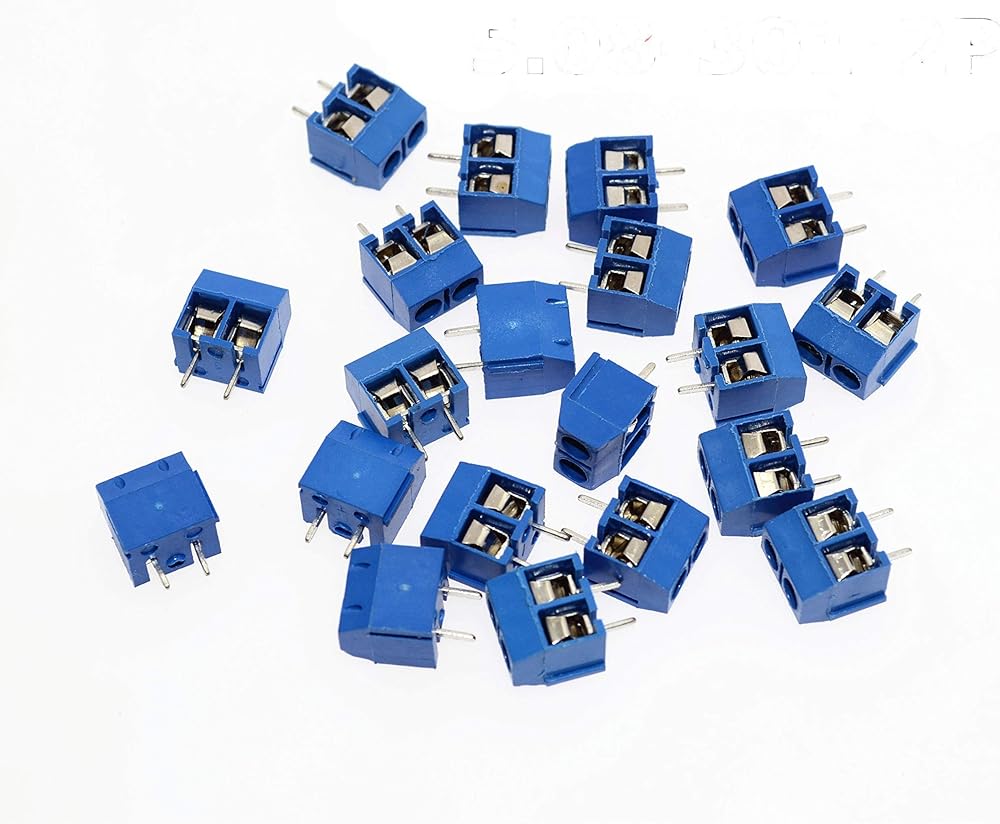

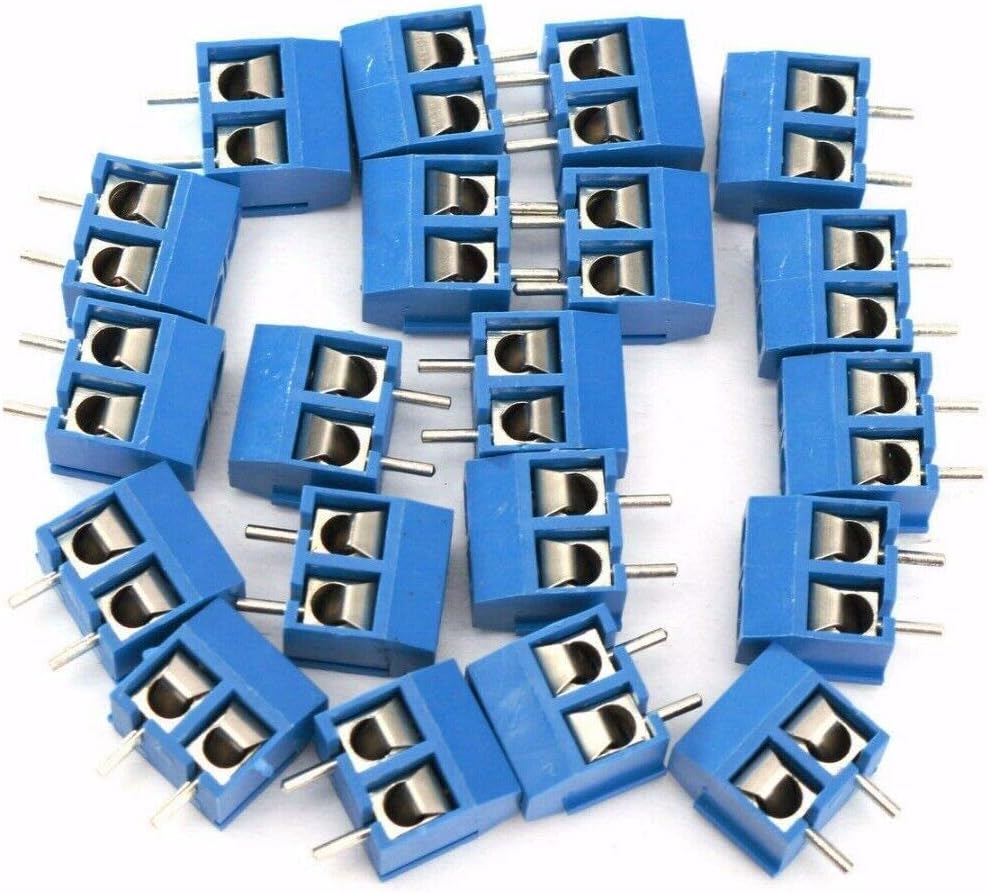

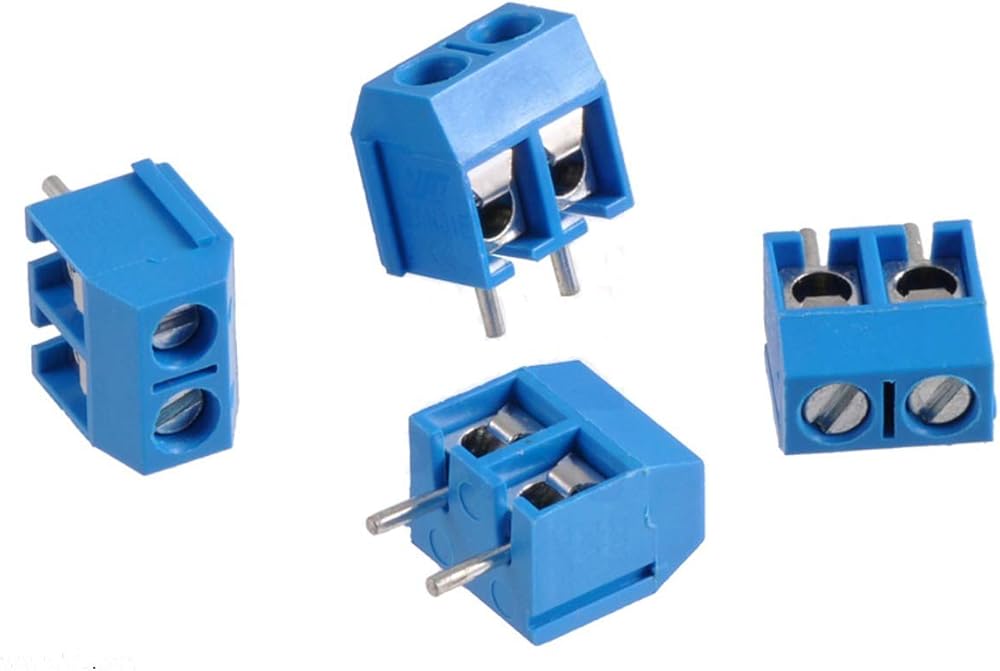

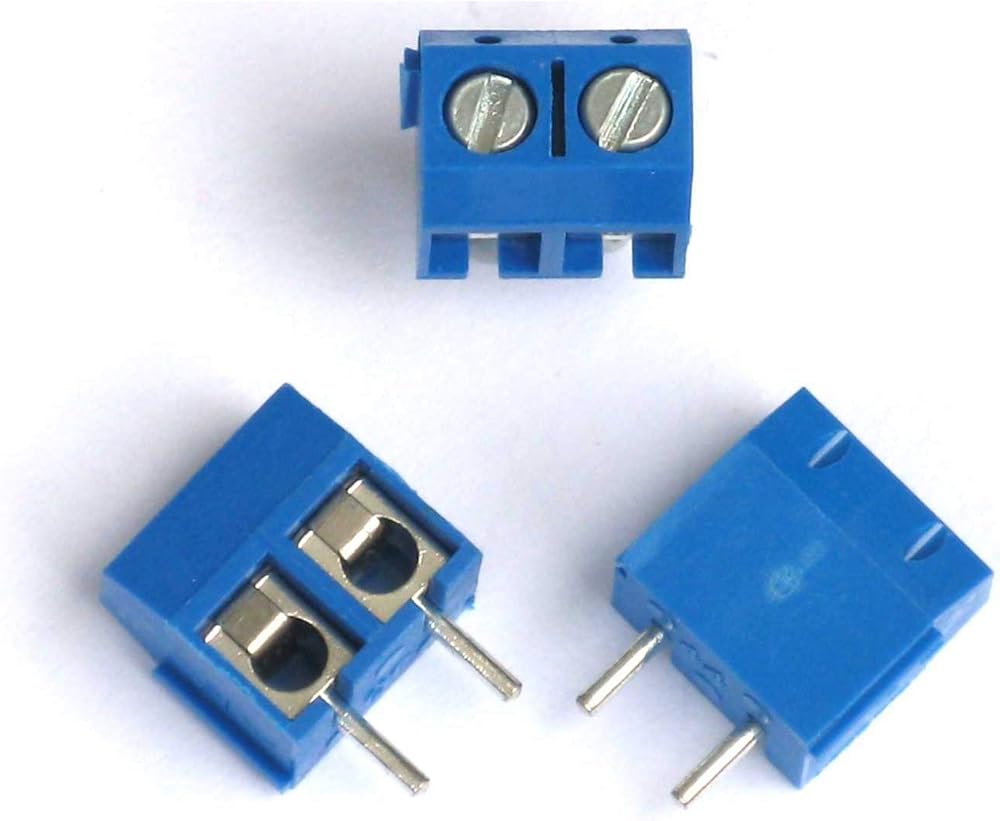

2-Pin Screw Terminal Block Connector 5.08mm Pitch PCB Mount Blue - 100 Pieces
5.08-301-2P 301-2P
Specifications:
Type: 5.08-301-2P 301-2P
Screw material: M2.5 steel Zinc plated
Contact material: phosphor bronze Ni plated or stainless steel
Pin header material: Brass, Tin plated
Housing material: PBT, UL94V-0
Color: Blue
Pitch: 5.08mm
Poles: 2P
Rated voltage: 300V
Rated current: 16A
Contact resistance: 20mO
Insulation resistance: 5000MO/1000V
Withstanding voltage: AC1500V/1Min
Temperature range: -30? ~ +120?
Max. soldering: +250? for 5 Sec
Torque: 0.5Nm

Package includes:
100 x 2-Pin 5.08-301-2P 301-2P Terminal Blocks
