DIVERSITECH ULTRA Series 230V Condensate Pump, 22 ft Lift with Tubing, ULTRACP-22T-230 in Saudi Arabia

DIVERSITECH ULTRA Series 230V Condensate Pump, 22 ft Lift with Tubing, ULTRACP-22T-230

SAR 785

Brand
Diversitech
Category
HVAC Equipment
1 +

Special Features

  • 22 ft maximum lift height
  • LED Indicators Confirm Pump Status
  • Built-in Safety Overflow Switch
  • Reversible deck for more installation options
  • Removable Check Valve for Easy Cleaning
  • Suitable for condensate up to 160° F
  • Vibration dampening feet and motor mounts minimize sound
  • 4 inlet holes
  • 20 ft of tubing included for easy installation

Description

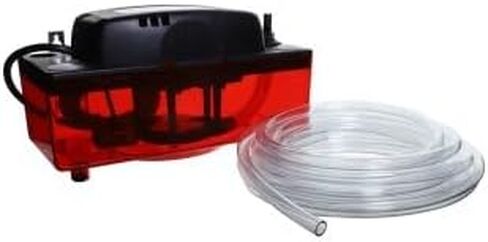

The Asurity ULTRACP-22T-230 Condensate Pump is a 230 volt pump with 22 ft of lift. It comes with innovative features such as a translucent tank for easy & fast inspection, vibration dampening feet & motor mounts, metal mounting tabs, four inlet holes (and 3 poly covers for the unused), LED indicators, float switch and duckbill-style check valve, and detailed installation instructions. Two 1/4in. quick connect terminals provide the installer fast and easy connections to the built-in overflow switch to shut-down the system and prevent flooding, an important safety feature. 20 ft of 3/8 in discharge tubing is included. 22 ft maximum lift height LED Indicators Confirm Pump Status Built-in Safety Overflow Switch Reversible deck for more installation options Removable Check Valve for Easy Cleaning Suitable for condensate up to 160° F Vibration dampening feet and motor mounts minimize sound 4 inlet holes 20 ft of tubing included for easy installation Includes Tubing Volts 230 Application General Purpose Condensate Pump|HVAC/R Hertz 60 Horsepower 1/30 UL Listed Yes Amps 1 Discharge Line (In.) 3/8 Floatless Sensor No GPH (Gal./Hr.) @ 10 Ft. Lift 108 High Level Switch Yes Input Type NEMA 6-15 Plug Max Condensate Temp. (Degrees) 160°F Max Flow Rate (GPH) 132 Max Lift Height (Ft.) 22 No. of Inlets 4 Self-Cleaning No Tank Capacity (Gal.) 1/2 Variable Speed and Lift No Ducted or Ductless Ducted Color Code N/A UPC 0095247173099 Primary UoM Each Primary Depth (inches) 12.25 Primary Width (inches) 7.5 Primary Height (inches) 9 Primary Weight (lbs) 6.12 Quick Ship Flag No Order Multiple 6
