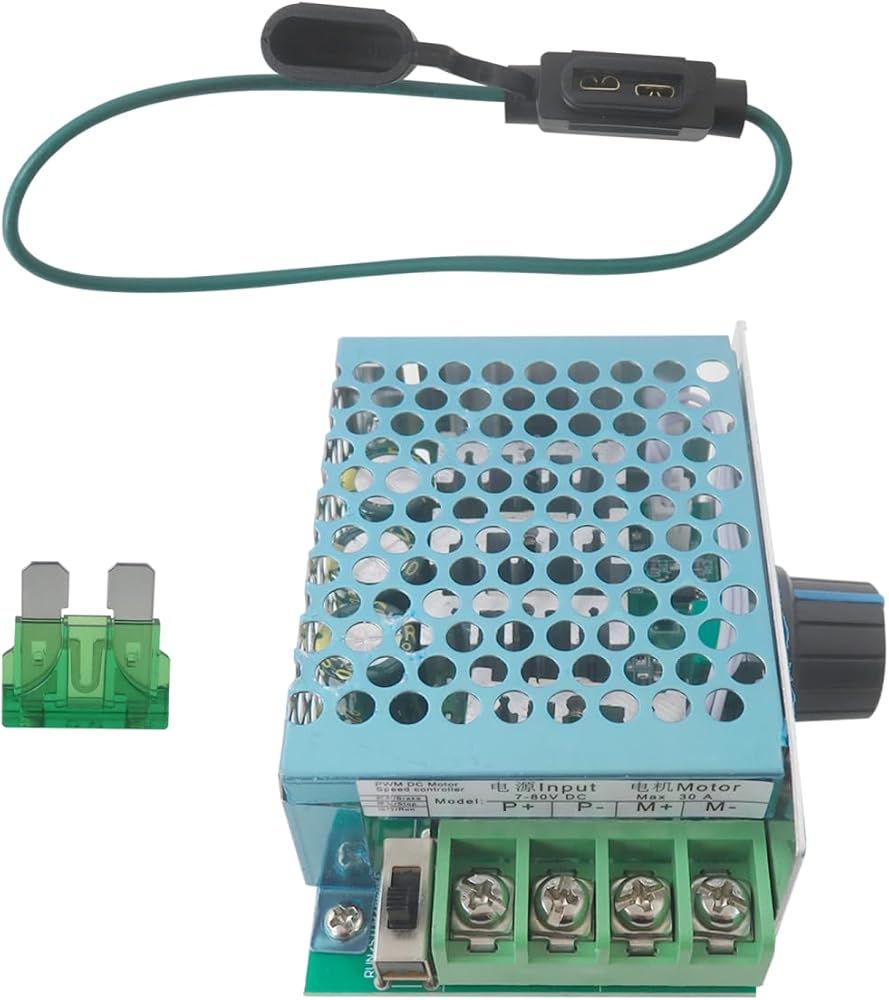

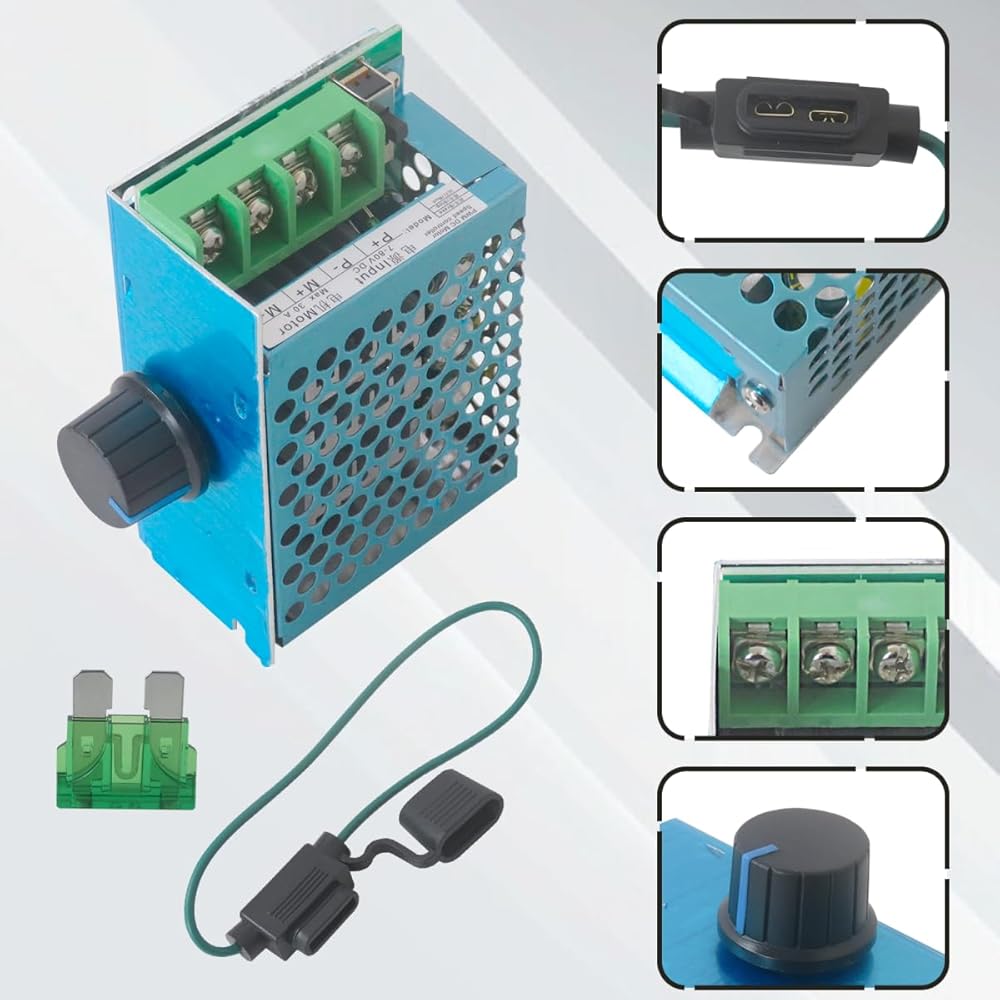

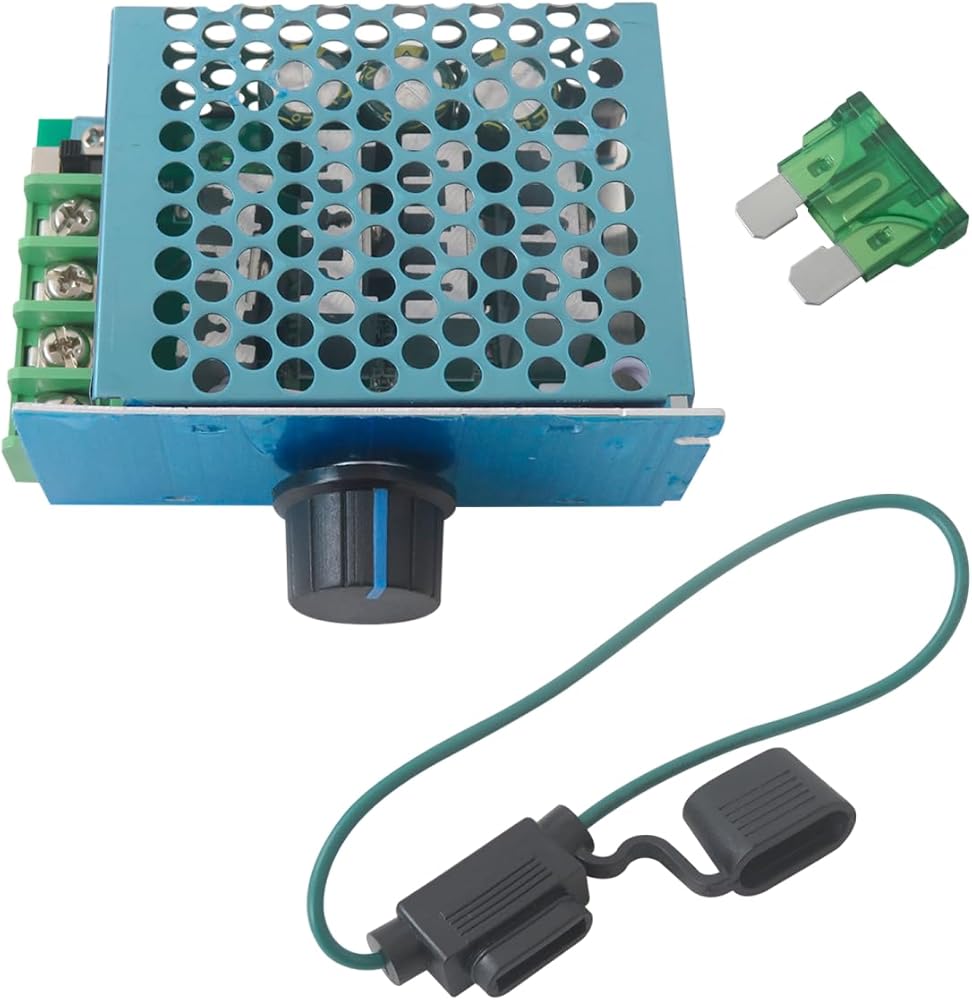

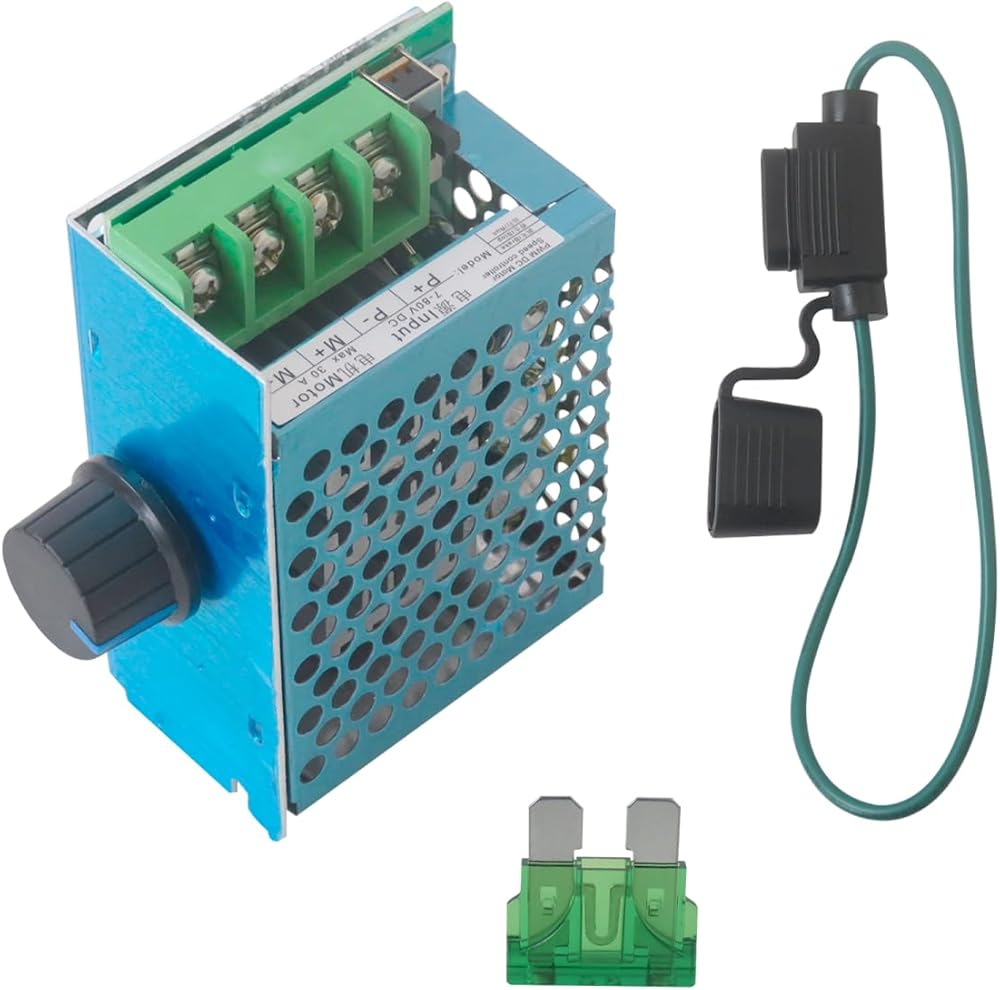

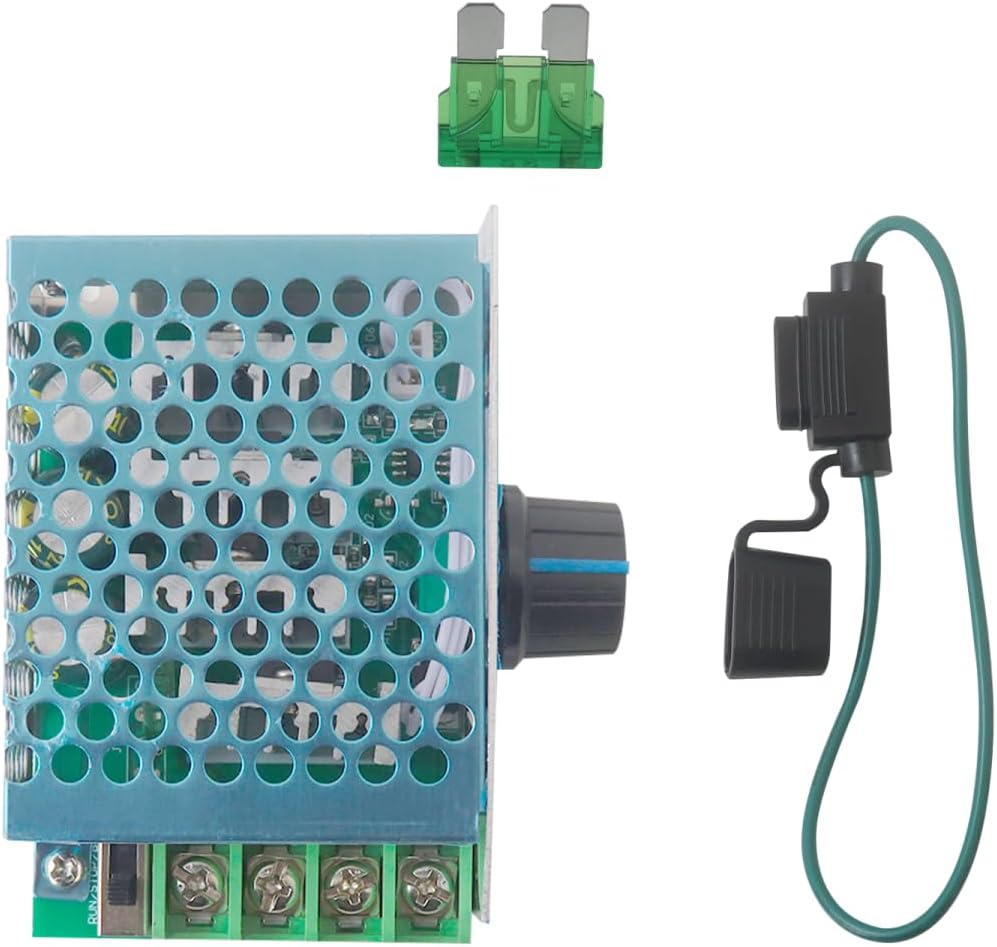

New Item - Wide Voltage DC Motor Controller 7-70V 30A PWM with Power Indicator by Homesweet
Wide Voltage Compatibility - Supports 7-70V DC input with 30A maximum current capacity, suitable for various DC brush motor applications from low to high voltage systems.
Smooth Speed Regulation - Features 12kHz PWM frequency and 1%-100% duty cycle adjustment range, providing smooth motor control without stuttering, vibration, or buzzing noise.

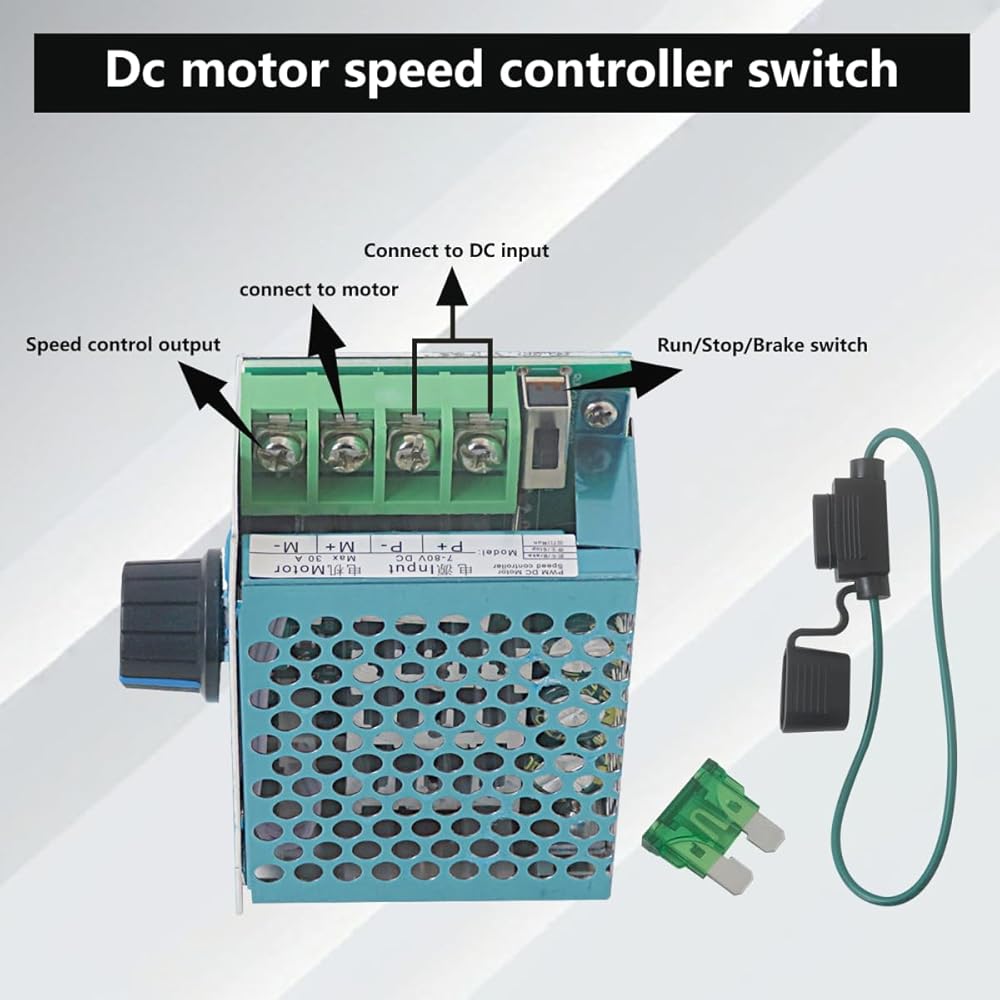

Multiple Control Functions - Integrated run, stop, and brake functions with separate potentiometer for flexible speed adjustment, featuring 15cm wire length for convenient installation.
Robust Power Handling - Rated for 500W maximum output power with specific ratings of 250W at 12V, 350W at 24V, 450W at 48V, and 400W at 60V for reliable performance.

وصف

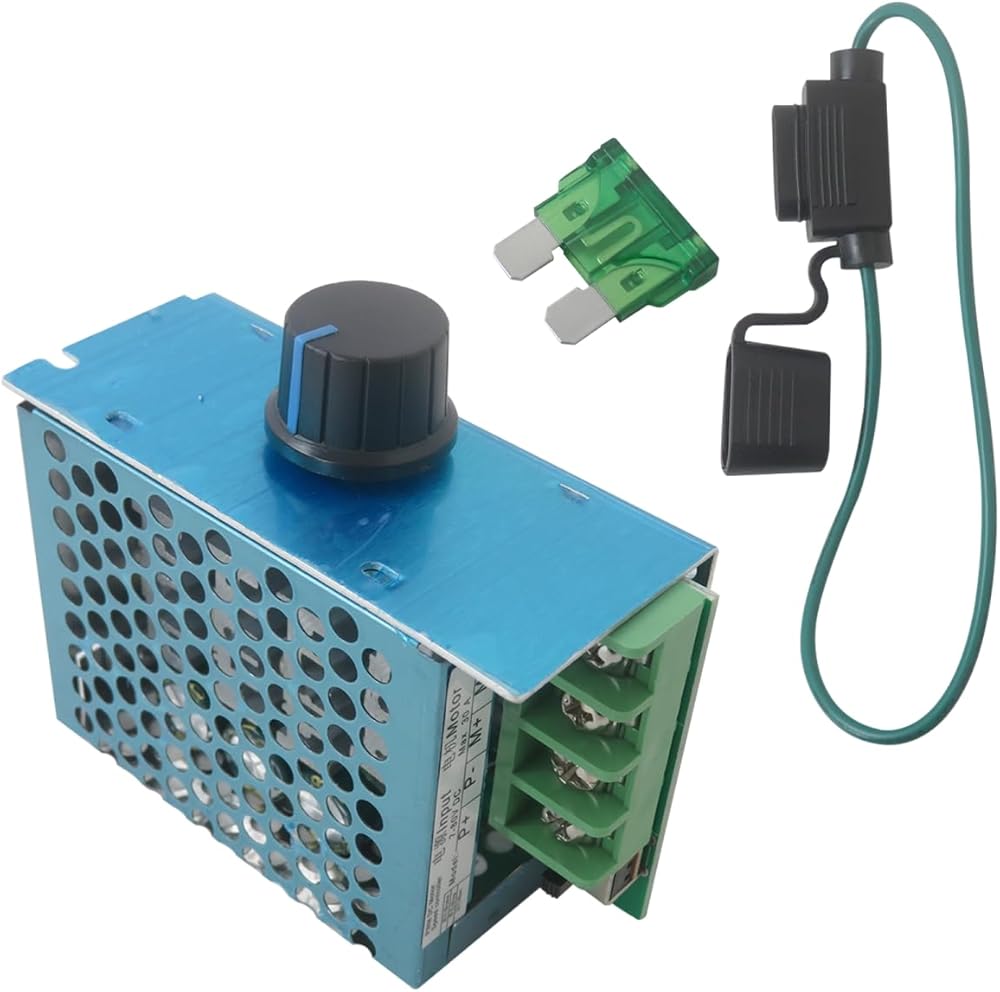

Upgraded Wide Voltage DC Motor Controller 7-70V 30A PWM with Power Indicator

Technical Specifications:
Voltage Range: DC 7-70V (70V max operating voltage, allow margin in use)
Max Current: 30A (reduce current accordingly at higher voltages)
Power Ratings: ≤250W at 12V, ≤350W at 24V, ≤450W at 48V, ≤400W at 60V
Output Power: 500W
Duty Cycle Adjustment: ~1%-100%
PWM Frequency: 12kHz

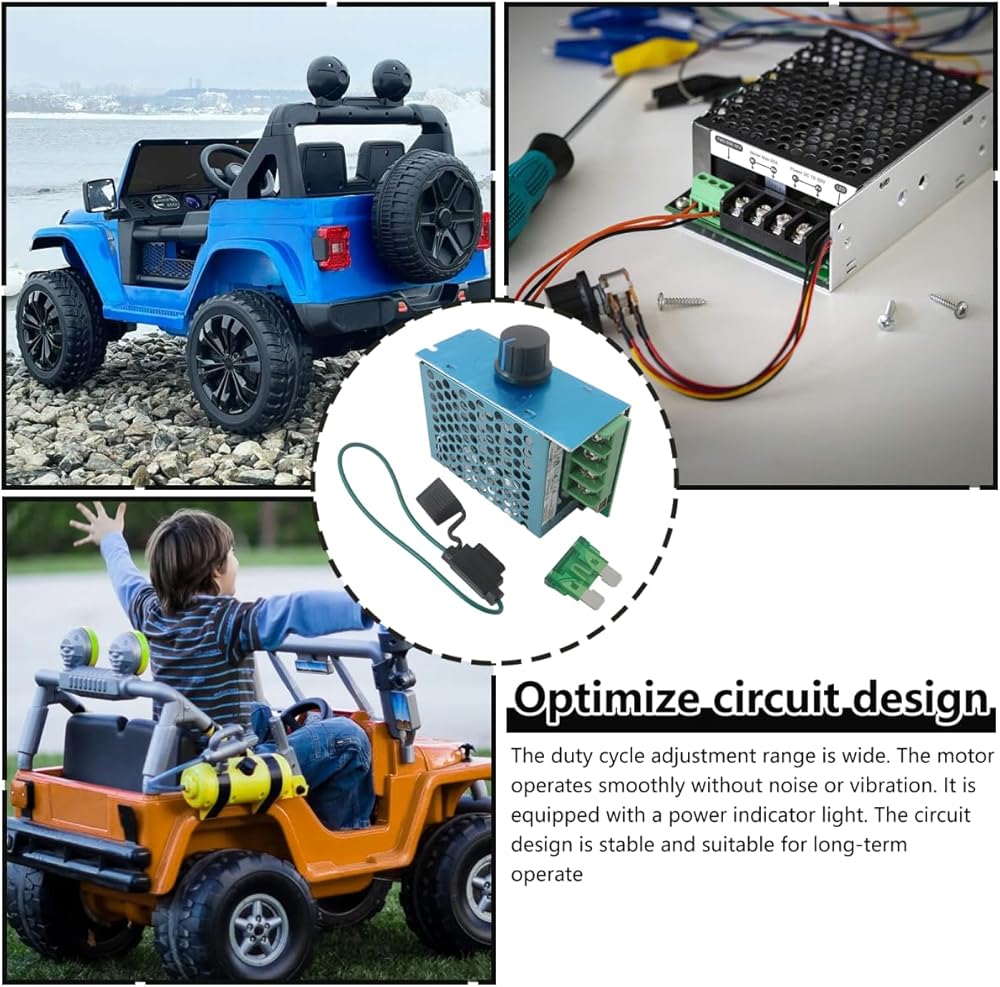

Optimized circuit design
Stable opera-tion with no vibration or noise
Wide-range duty cycle adjustment
Uses high-voltage MOSFETs
Equipped with 3 high-voltage low-impedance capacitors (100V rated)
Parameters: low heat generation, easy replacement
Standard aluminum housing to protect internal circuits and components

Package Contents:
1 x PWM DC Motor Speed Controller
