SNM012A-24 Specifications
Contact Material alloy brush, plated ring
The maximum rated current of each ring is 2A
Number of circuits: 24
Operating speed 150 rpm* continuous
Shell material engineering plastics
Lead wire UL Awg28, color coded, silver plated
Lead length 250mm
Voltage 210 VDC / 240 VAC
Operating temperature: -40°C to 80°C
Torque about 0.39 gm (for reference)
Dielectric strength between circuits 600V@50Hz
Insulation resistance 600M@300VDC
Noise: 15 milliohms maximum tested at 6 VDC, 40 mA when running at 5 - 15 rpm
Tensile strength: radial 2KG, axial 0.5KG
Protection grade IP51
Compatible/Model: No

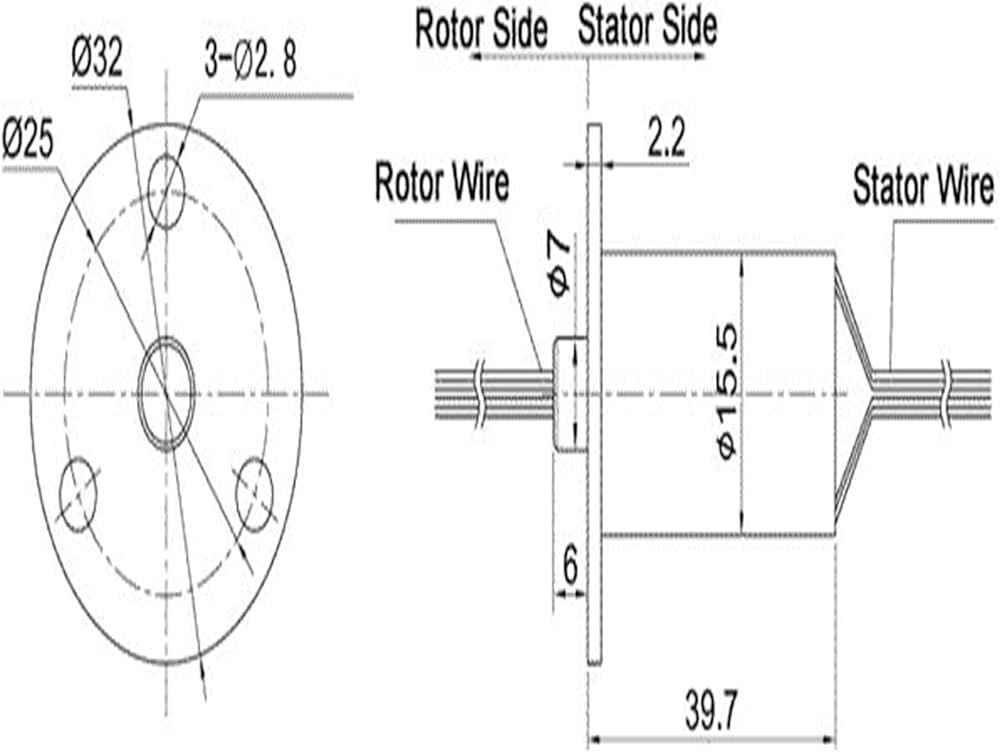

Outer diameter: 15.5 mm
Length: 39.7 mm
Power circuit: 24 circuits, 2A each
Shell material: aluminum alloy
Model: SNM015A-24
