Needle-Bearing
Specification:

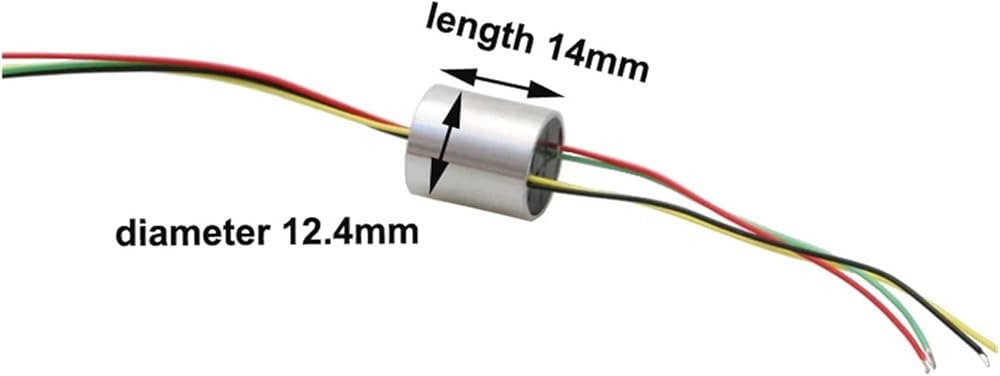

Outer diameter: 12.4 mm
Channel: 4CH
Current: 2A
Rated voltage: 240VDC
- Working speed: 0-250rpm
- Contact material: precious metal
- Shell material: Aluminum alloy
- Dielectric strength: 500VAC@50Hz,60S
- Insulation resistance: 500MQ/500VDC
- Dynamic contact resistance fluctuation value: 10mΩ
Cable: AWG28
Cable length: 50mm+150mm
Protection level: IP51
Working temperature: -20~+80
