Needle-Bearing
Suitable for various equipment to continuously rotate 360 ​​degrees to conduct electricity or transmit signals
Maximum speed: 250RPM
The standard current is 2A (can be connected in parallel to 5A/10A);
Standard models 2-12 signal channels (2A per channel) or 2-4 power channels (10A per channel)

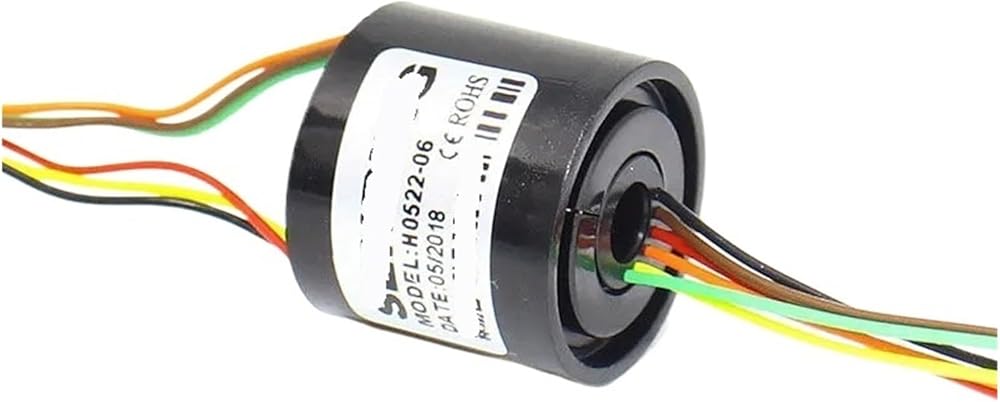

Model: H0522-06/12
Maximum speed: 250RPM
Origin: Mainland China
Product Name: Slip Ring
ID (hole size): 5mm
OD (outer diameter): 22mm
Circuit: 06/12 Circuit
Current: 2A each
Type: Conductive slip ring
Style: Through hole slip ring
Shell material: 6-wire plastic shell, 12-wire aluminum alloy shell
Wire specification: AWG28# silver-plated
Application: Transmitting current, signal, video, data
RC Parts and Accessories: Slip Rings
Model: H0522-06/12
