SNH050 Specifications (Standard)
Contact material: precious metal brush, silver-plated ring
Rated current 20A
Number of circuits: 6
Operating speed 300 rpm* continuous
Wire UL Awg28, Awg22, Awg16, Awg10 (200 mm)
Voltage 600 VAC
Operating temperature: -40°C to 80°C
Working humidity 60%RH
Torque: about 9.95 g (for reference)
Dielectric strength between circuits 1000V@50Hz
Insulation resistance 1000M@600VDC
Noise level less than 50 meters @ 6 VDC, 50 mA, 5 rpm
Shell material Aluminum alloy
Protection grade IP54
Model: Black
Compatible/Model: No

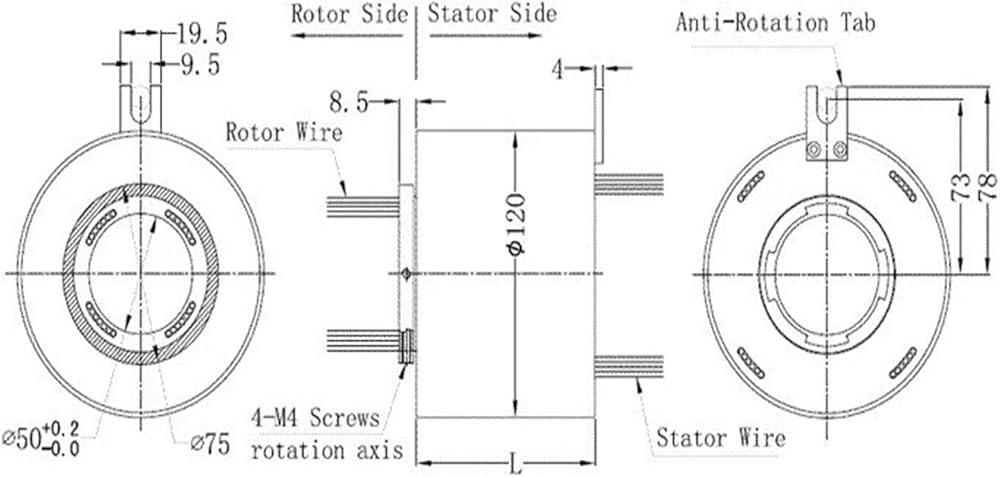

Hole size: 50mm
Outer diameter: 120mm
Power circuit: 6 circuits, 20A each

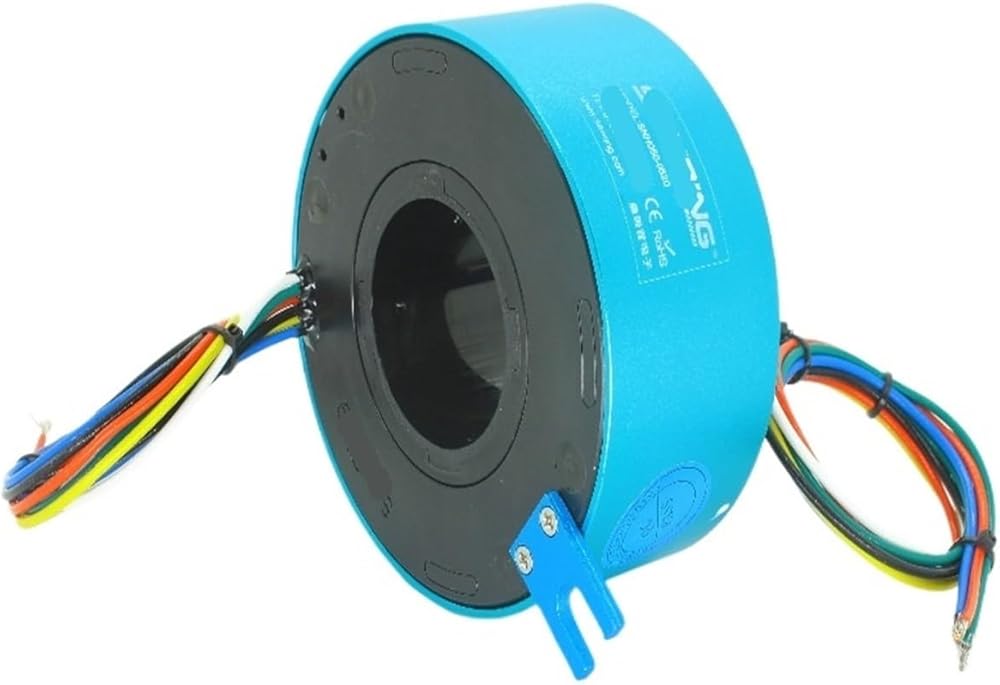

Model: SNH050-0620
